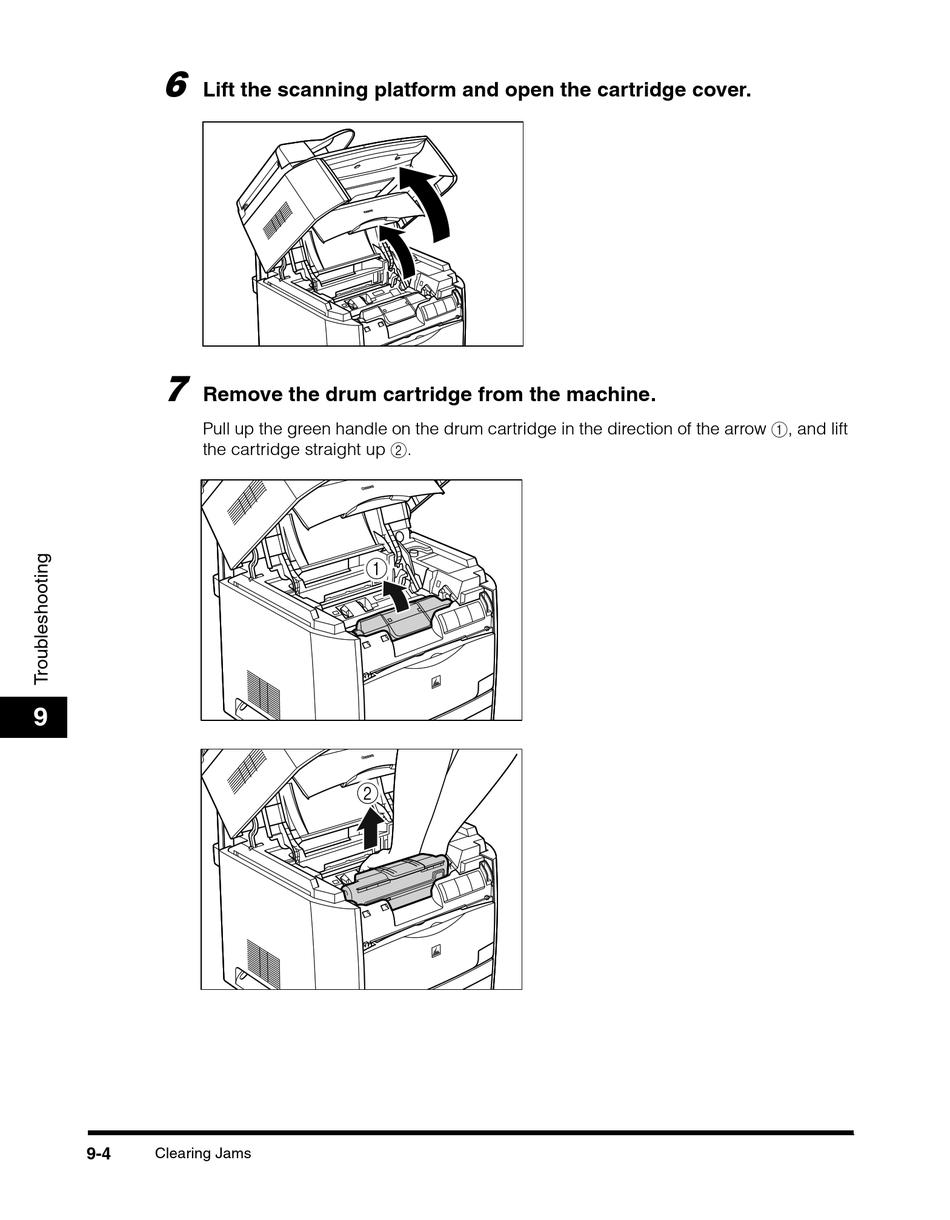

Lift the scanning platform and open the cartridge cover.
Remove the drum cartridge from the machine.
Pull up the green handle on the drum cartridge in the direction of the arrow a, and lift
the cartridge straight up b.
a
9
b
9-4 Clearing Jams
