E5DC/E5DC-B

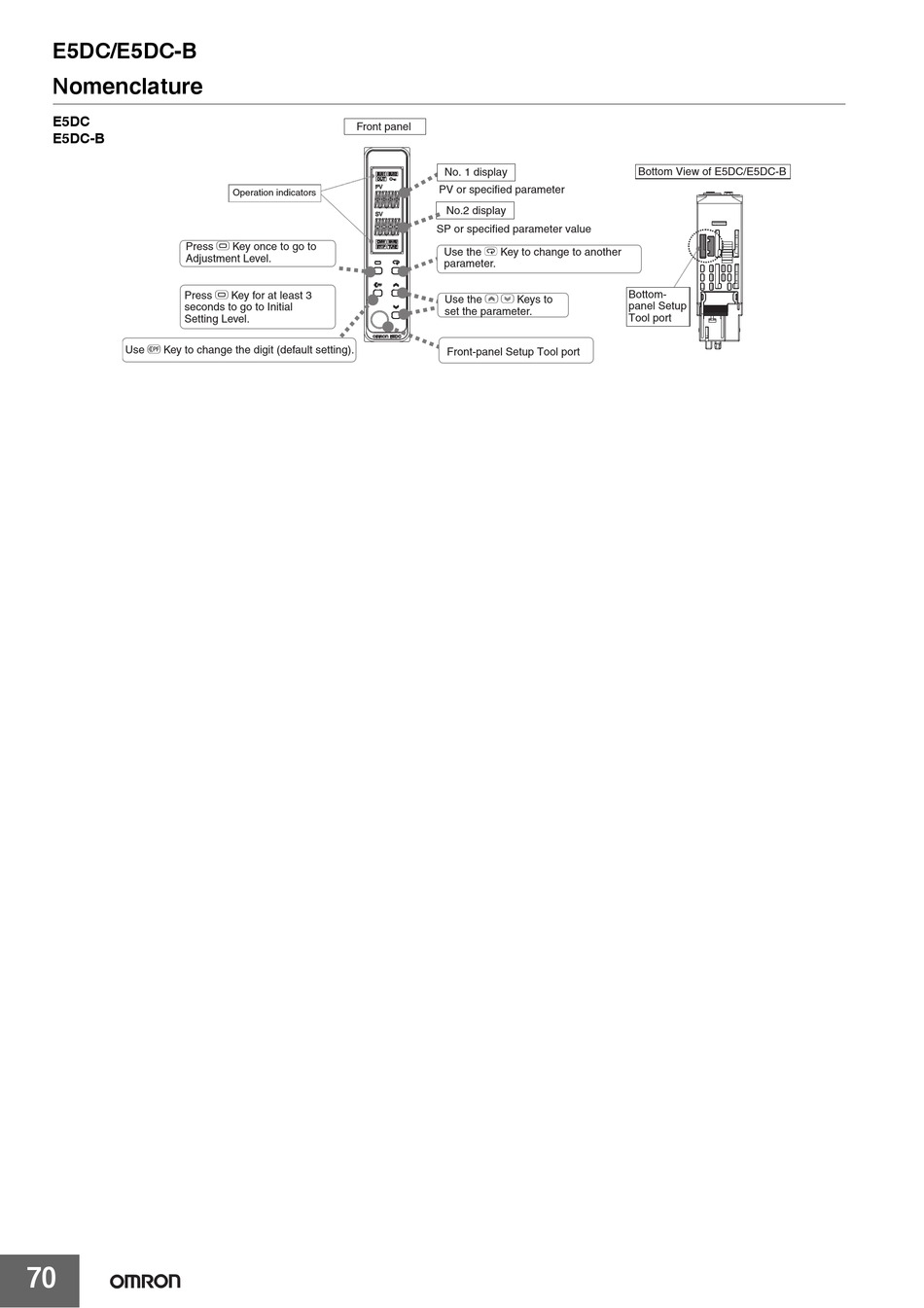

Nomenclature
E5DC
E5DC-B
Press O Key once to go to
Adjustment Level.
Press O Key for at least 3
seconds to go to Initial
Setting Level.
Use S Key to change the digit (default setting).
70
Front panel
Operation indicators
No. 1 display
PV or specified parameter
No.2 display
SP or specified parameter value
Use the M Key to change to another
parameter.
Use the U D Keys to
set the parameter.
Front-panel Setup Tool port
Bottom View of E5DC/E5DC-B
Bottom-
panel Setup
Tool port
