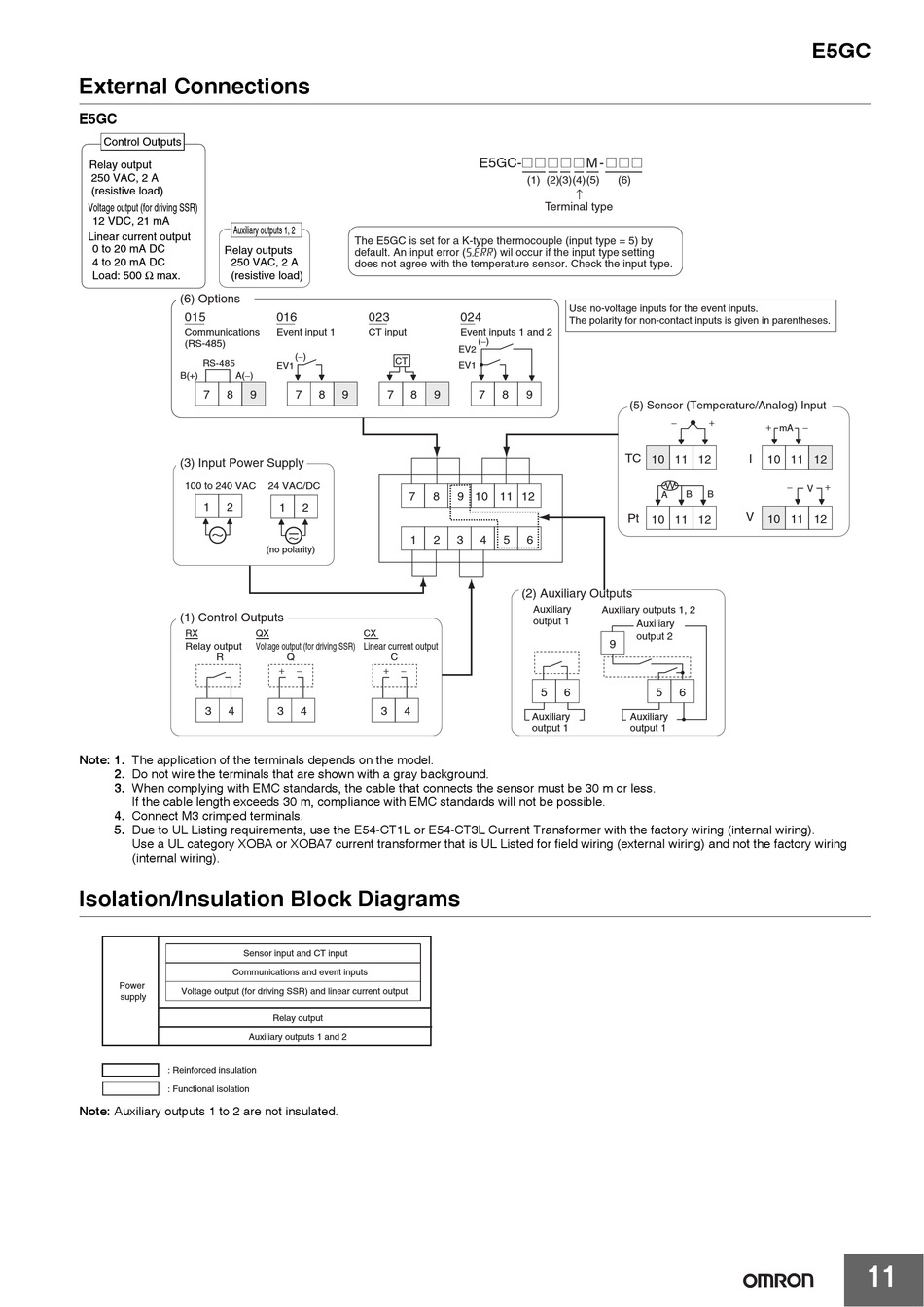

External Connections

E5GC
Control Outputs
Relay output
250 VAC, 2 A
(resistive load)
Voltage output (for driving SSR)
12 VDC, 21 mA
Auxiliary outputs 1, 2
Linear current output
0 to 20 mA DC
Relay outputs
4 to 20 mA DC 250 VAC, 2 A
Load: 500 Ω max.
(resistive load)
(6) Options
015
Communications
(RS-485)
RS-485
B(+) A(−)
7 8 9
(3) Input Power Supply
100 to 240 VAC
1 2
(1) Control Outputs
RX
Relay output
R
3 4
Note: 1. The application of the terminals depends on the model.
2. Do not wire the terminals that are shown with a gray background.
3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.
If the cable length exceeds 30 m, compliance with EMC standards will not be possible.
4. Connect M3 crimped terminals.
5. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring).
Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring
(internal wiring).
Isolation/Insulation Block Diagrams
Sensor input and CT input
Communications and event inputs
Power
Voltage output (for driving SSR) and linear current output
supply
Auxiliary outputs 1 and 2
: Reinforced insulation
: Functional isolation
Note: Auxiliary outputs 1 to 2 are not insulated.
The E5GC is set for a K-type thermocouple (input type = 5) by
default. An input error (s.err) wil occur if the input type setting
does not agree with the temperature sensor. Check the input type.
016 023
Event input 1 CT input
(−)
CT
EV1
7 8 9 7 8
24 VAC/DC
7
1 2
1
(no polarity)
QX CX
Voltage output (for driving SSR) Linear current output
Q C
+ − + −
3 4 3 4
Relay output
E5GC-@ @ @ @ @ M - @ @ @
(1) (2)(3)(4)(5)
↑
Terminal type
Use no-voltage inputs for the event inputs.
024
The polarity for non-contact inputs is given in parentheses.
Event inputs 1 and 2
(−)
EV2
EV1
9 7 8 9
8 9 10 11 12
2 3 4 5 6
(2) Auxiliary Outputs
Auxiliary
Auxiliary outputs 1, 2
output 1
5 6
Auxiliary
output 1
(6)
(5) Sensor (Temperature/Analog) Input
− +
+
mA
TC
I
10 11 12 10 11 12
B B
A
V
Pt 10 11 12
10 11 12
Auxiliary
output 2
9
5 6
Auxiliary
output 1
E5GC
−
− +
V
11
