Install the Controller in a Four-Post Rack

Copyright © 2013, Juniper Networks, Inc.
Figure 2: Install the C Series Controller in a Two-Post Rack
Mounting rack
Insert four rack-mount screws on each side of the system to secure the front of the
1.
chassis to the equipment rack.
Slide the rear mount rail brackets into the backs of the front rails on either side of the
2.
chassis, and align the brackets with your rear equipment rack posts. Secure the rear
mount rail brackets to your equipment rack with two rack mount screws each.
Insert locking screws on the sides of the rear mount brackets to secure the front and
3.
rear mounting brackets in place. See
Verify that the mounting screws on one side of the rack are aligned with the mounting
4.
screws on the opposite side and that the appliance is level.

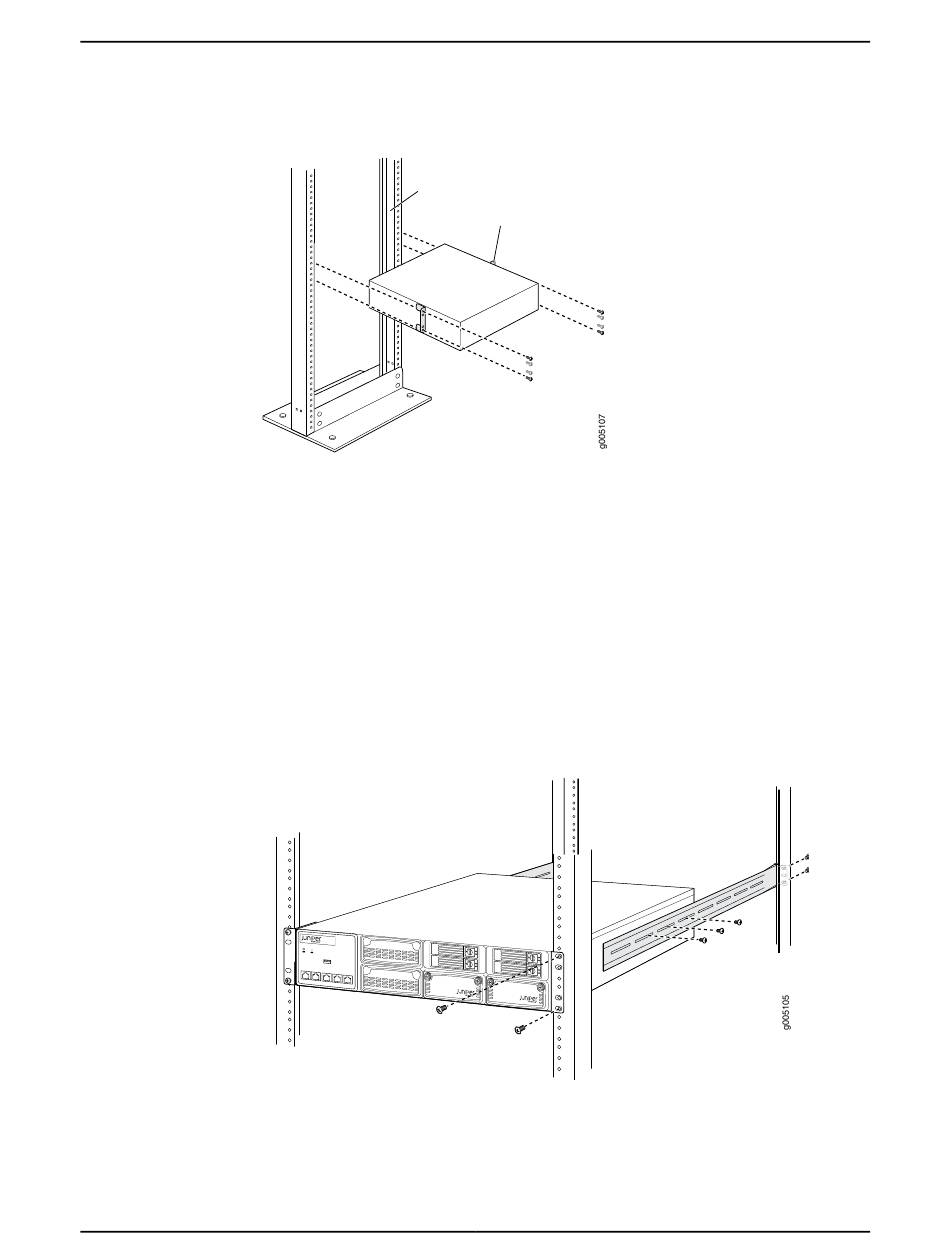

Figure 3: Install the C Series Controller in a Four-Post Rack
CONS OLE ETH0
ETH1
ETH2
ETH3
Install the Controller in a Four-Post Rack
Mounting bracket
Figure 3 on page 5.
