Install the camera to a mount

To install the multi-imager camera to a mount:

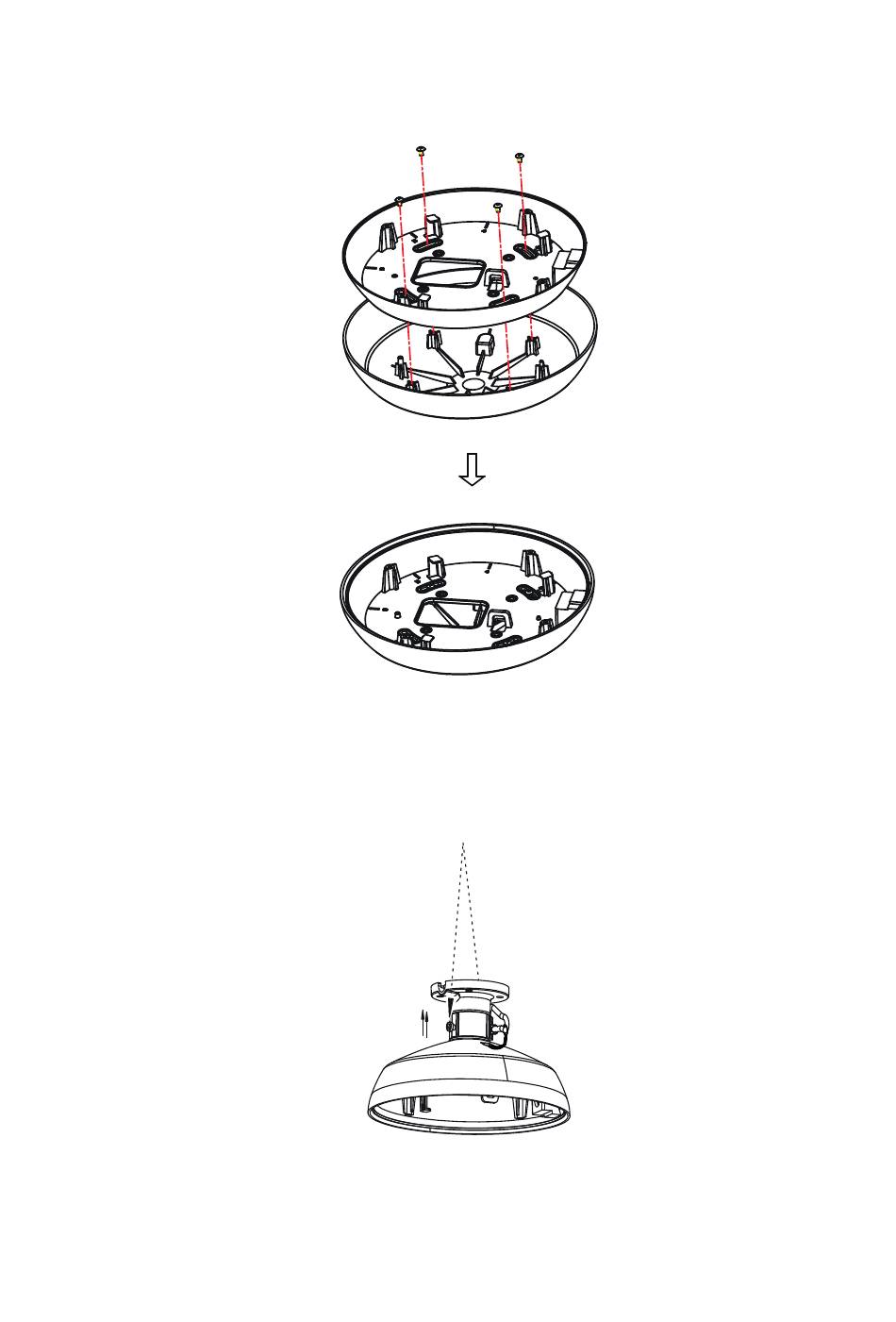

1. Install the camera base to the cup base using the screws provided.
2. Route the cables.
3. Attach the cup base to the mount and tighten the screw on the mount
to secure the camera to the mount. Attach the camera safety cable to
the mount.
4. Install the camera body to the camera base.
a) Route the cables.
