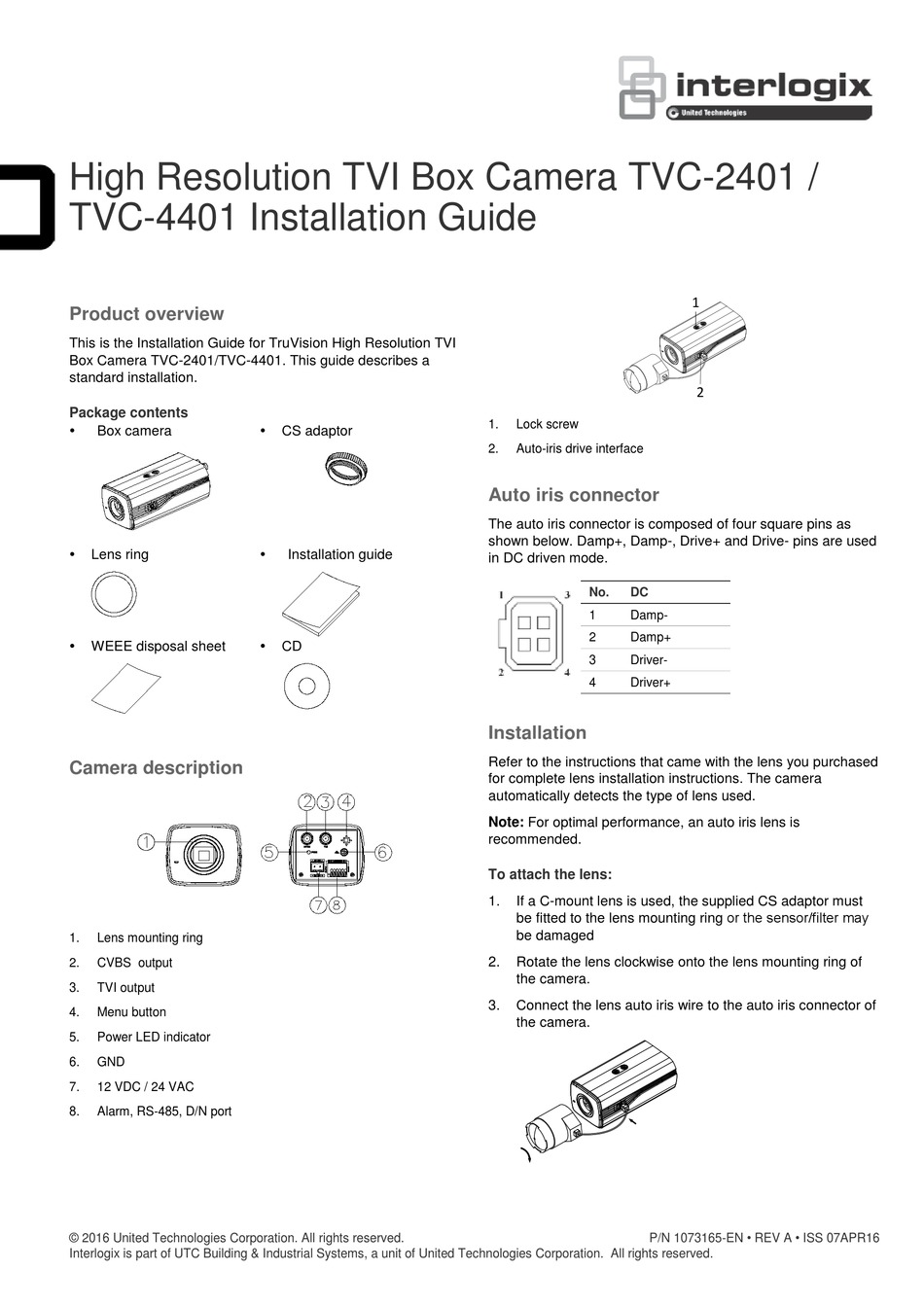

High Resolution TVI Box Camera TVC-2401 /
TVC-4401 Installation Guide

Product overview

This is the Installation Guide for TruVision High Resolution TVI
Box Camera TVC-2401/TVC-4401. This guide describes a
standard installation.
Package contents

Box camera

Lens ring

WEEE disposal sheet

Camera description

1. Lens mounting ring
2. CVBS output
3. TVI output
4. Menu button
5. Power LED indicator
6. GND
7. 12 VDC / 24 VAC
8. Alarm, RS-485, D/N port
© 2016 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.

CS adaptor

Installation guide

CD
1. Lock screw
2. Auto-iris drive interface
Auto iris connector
The auto iris connector is composed of four square pins as
shown below. Damp+, Damp-, Drive+ and Drive- pins are used
in DC driven mode.
No. DC
1 Damp-
2 Damp+
3 Driver-
4 Driver+
Installation
Refer to the instructions that came with the lens you purchased
for complete lens installation instructions. The camera
automatically detects the type of lens used.
Note: For optimal performance, an auto iris lens is
recommended.
To attach the lens:
1. If a C-mount lens is used, the supplied CS adaptor must
be fitted to the lens mounting ring or the sensor/filter may
be damaged
2. Rotate the lens clockwise onto the lens mounting ring of
the camera.
3. Connect the lens auto iris wire to the auto iris connector of
the camera.
P/N 1073165-EN • REV A • ISS 07APR16
