TruVision Multi-imager camera extension pipe (TVMI-PMA)
The multi-imager camera can be installed on a TVMI-PM/ TVMI-PM2/
TVMI-PM3 pendent mount with TVMI-PMA. The mount length is 364.1 ×
182.0 mm (14.3 × 7.2 in.).

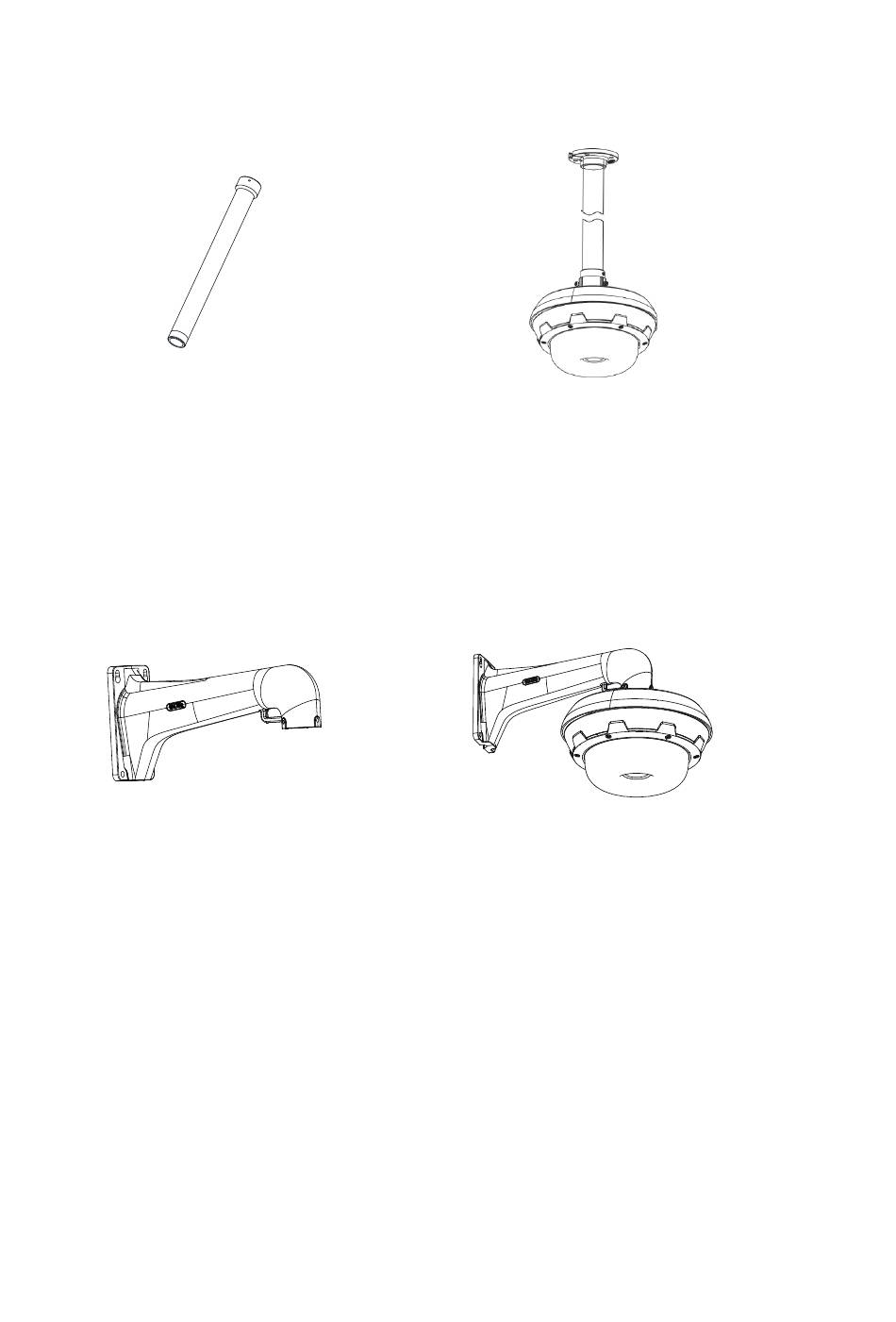

Extension pipe
Example: Pendent mount and extension
pipe with camera
For further information, please refer to the "TruVision Multi-imager Camera
Mount Installation Guide".
TruVision Multi-imager camera wall mount (TVMI-WM)
The multi-imager camera can be installed on a TVMI-WM wall mount.
Wall mount
Example: Wall mount with camera
For further information, please refer to the "TruVision Multi-imager Camera
Mount Installation Manual".
