The visible IR range may vary due to multiple factors, such as weather, IR
reflection, rate of viewing objects, lens adjustment, and camera settings.
Please refer to the camera datasheet for the standard IR range.
Note: Avoid installing the IR camera near large items, such as, a tree or
wall. The reflection will cause over-exposure and impact the quality of the
image.
Accessing the micro SD/SDHC/SDXC slot
Remove the camera cover ring and insert a micro SD/SDHC/SDXC card
in the slot for local storage as a backup in case the network fails. The
micro SD card is NOT supplied with the camera.

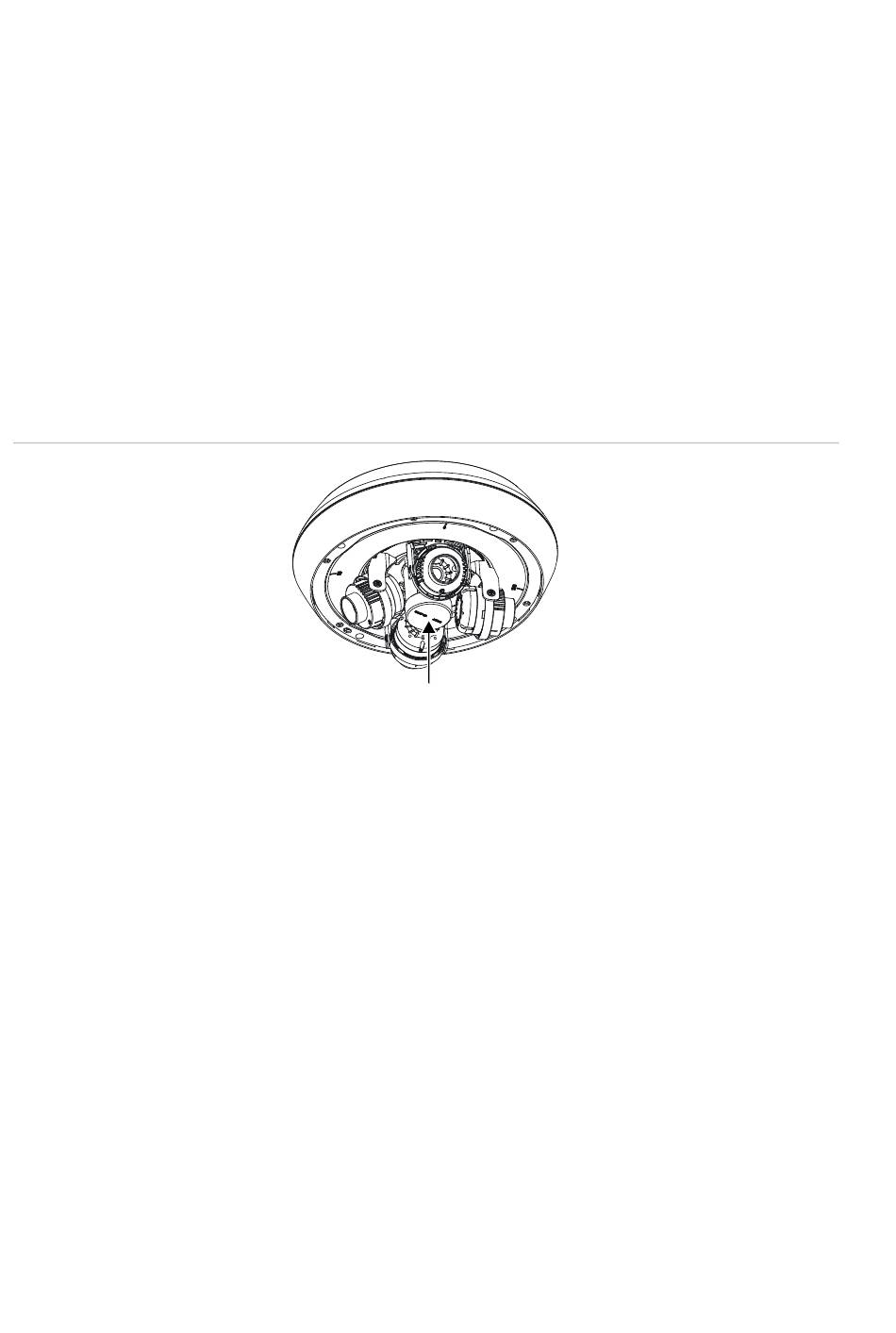

Figure 2: Access the micro SD card in the camera
SD card cover
Video and log files stored on the micro SD card can only be accessed via
the web browser. You can access video from the card using TruVision
Navigator or a recording device, but log files must be accessed via the
web browser interface.
Mounting accessories
The camera can be installed on a cup base (included with the camera)
and then attached to a TruVision wall or pendant mount, which are sold
separately.
Note: The wall and pendant mounts are shipped with installation
hardware.
TruVision Multi-imager camera pendant mount (TVMI-PM)
The multi-imager camera can be installed on a TVMI-PM pendent mount.
The mount length is 116.5 × 57 mm (4.59 × 2.24 in.).
10
