- Page 1 TruVision High Resolution TVI Box Camera TVC-2401 / TVC-4401 Installation Guide P/N 1073165-EN • REV A • ISS 04APR16...
-
Page 3: Table Of Contents
Content Product overview 2 Camera description 3 Installation 5 Programming 7 Setup menu 9 Specifications 10 Legal and regulatory information 10 Installation Guide... -
Page 4: Product Overview
Product overview This is the Installation Guide for TruVision High Resolution TVI Box Camera TVC-2401/TVC-4401. This guide describes a standard installation. Package contents Box camera CS adaptor Lens ring Quick guide Installation Guide... -

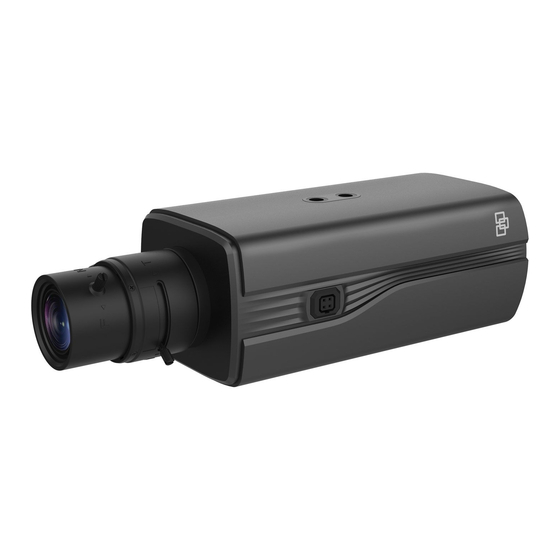

Page 5: Camera Description
WEEE disposal Camera description Lens mounting ring CVBS output TVI output Menu button Power LED indicator Installation Guide... - Page 6 12 VDC / 24 VAC Alarm, RS-485, D/N port Lock screw Auto-iris drive interface Auto iris connector The auto iris connector is composed of four square pins as shown below. Damp+, Damp-, Drive+ and Drive- pins are used in DC driven mode. Installation Guide...
-
Page 7: Installation
Damp- Damp+ Driver- Driver+ Installation Refer to the instructions that came with the lens you purchased for complete lens installation instructions. The camera automatically detects the type of lens used. Note: For optimal performance, an auto iris lens is recommended. To attach the lens: If a C-mount lens is used, the supplied CS adaptor must be fitted to the lens mounting ring... - Page 8 Connect the lens auto iris wire to the auto iris connector of the camera. To mount the camera: Attach the camera to a mounting bracket using appropriate fasteners or install the camera in an appropriate outdoor housing. Adjust the camera to get an optimum angle. Tighten the screw to secure the camera to the bracket, if required.
-
Page 9: Programming
Connect the service monitor CVBS connector to the camera CVBS output, if required. Please refer to the Programming section for more information. Power the camera with a power supply. Please mind the polarity of 12 VDC connections. 24 VAC connections are not polarity sensitive. Finish the installation by adjusting zoom and focus to get a clear picture. - Page 10 Please select the PTZ protocol as TruVision Coax and click the menu button to call up the camera menu. For more details, please see the TVI DVR user manual. The camera has CVBS and TVI dual video outputs. When the WDR feature is enabled via the OSD, the CVBS output will be blocked.
-
Page 11: Setup Menu
Setup menu Installation Guide... -
Page 12: Specifications
Legal and regulatory information Copyright: © 2016 United Technologies Corporation, Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. - Page 13 Manufacturer: Interlogix 2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA Authorized EU manufacturing representative: UTC Fire & Security B.V. Kelvinstraat 7, 6003 DH Weert, The Netherlands Certification: FCC compliance: Class A Class A: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
