Pendent mount
TruVision Multi-imager camera pendent mount (TVMI-PM2)
The multi-imager camera can be installed on a TVMI-PM2 pendent mount.
The mount length is 116.5 × 200 mm (4.59 × 7.87 in.).
Pendent mount
TruVision Multi-imager camera pendent mount (TVMI-PM3)
The multi-imager camera can be installed on a TVMI-PM3 pendent mount.
The mount length is 116.5 × 500 mm (4.59 × 19.68 in.).
Pendent mount
For further information, please refer to the "TruVision Multi-imager Camera
Mount Installation Guide".
Installation Guide

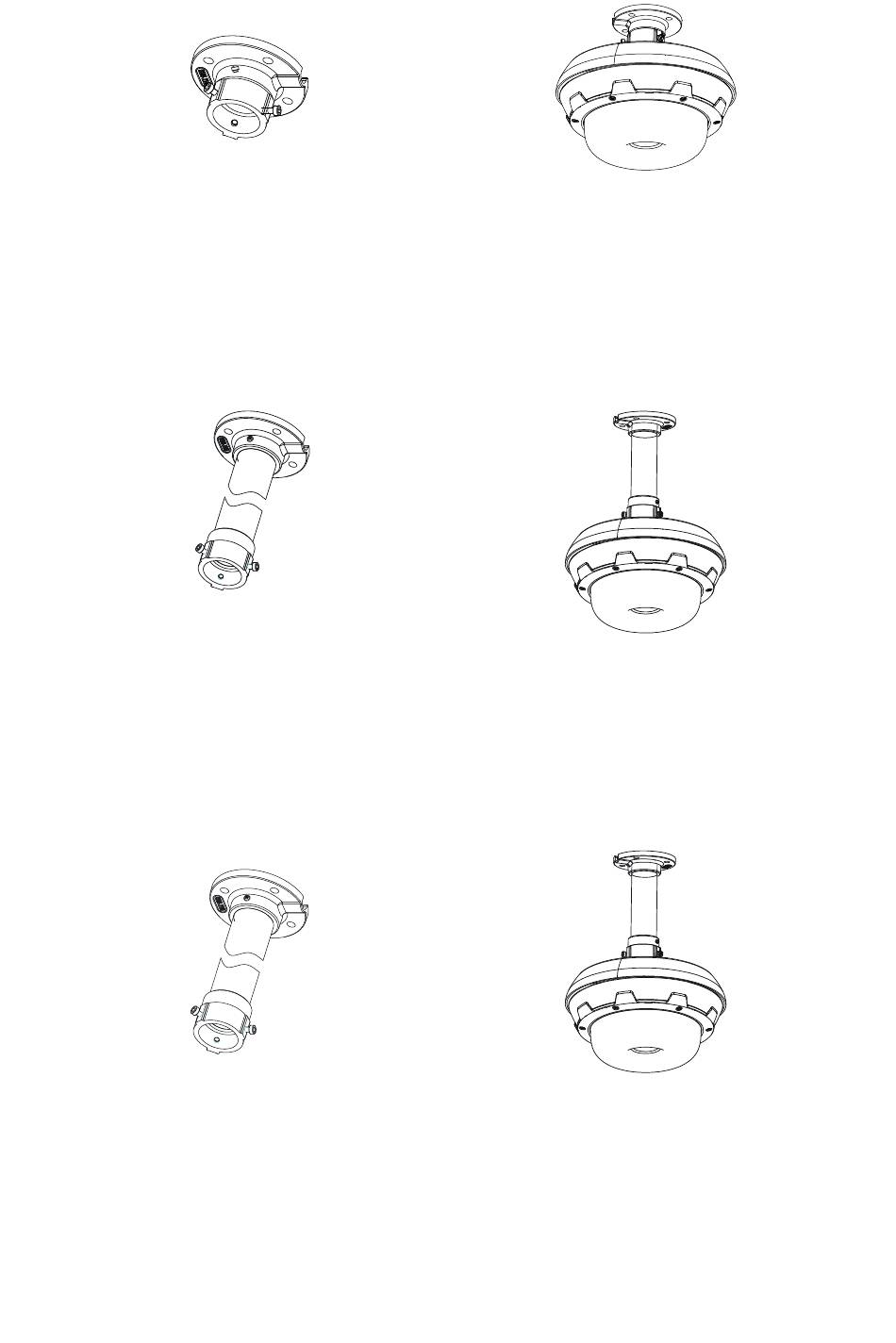

Example: Pendent mount with camera
Example: Pendent mount with camera
Example: Pendent mount with camera
