Install the camera
Note:
Please refer to the camera configuration guide for detailed
information on the camera configuration.
To install the multi-imager camera to a ceiling:

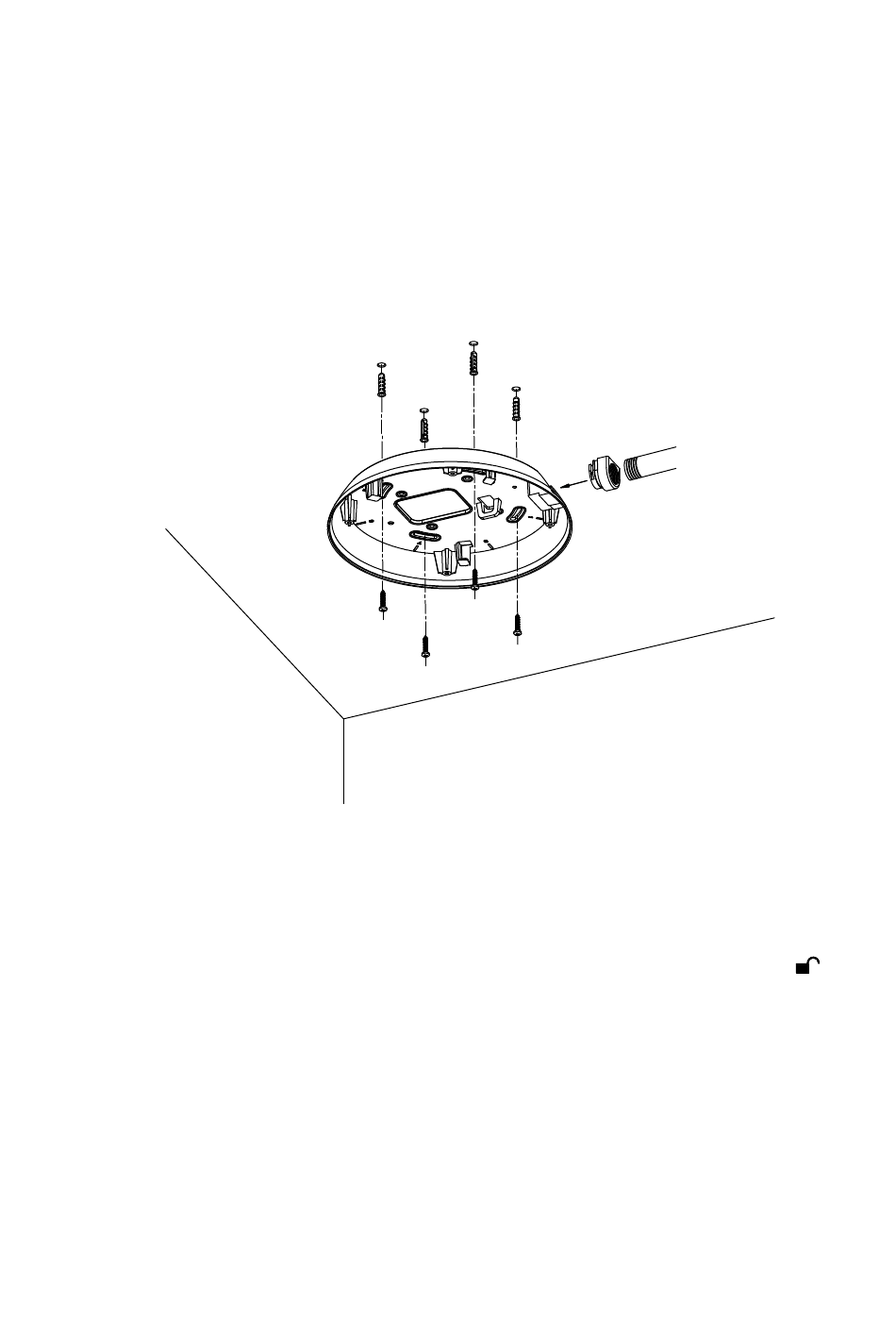

1. Install the camera base to the ceiling.
a) Use the camera base as a template to mark the mounting holes.
b) If running the cables in to the side of the camera install the cable
gland into the side of the camera base.
2. Install the camera base to the ceiling.
a) Route the cables.
b) Attach the camera safety cable to the camera base.
c) Align the ▲ mark of the camera body with the Unlock mark
the camera base to ensure that the catches in the camera base
and body are correctly aligned. Then push the camera body
upward.
