56

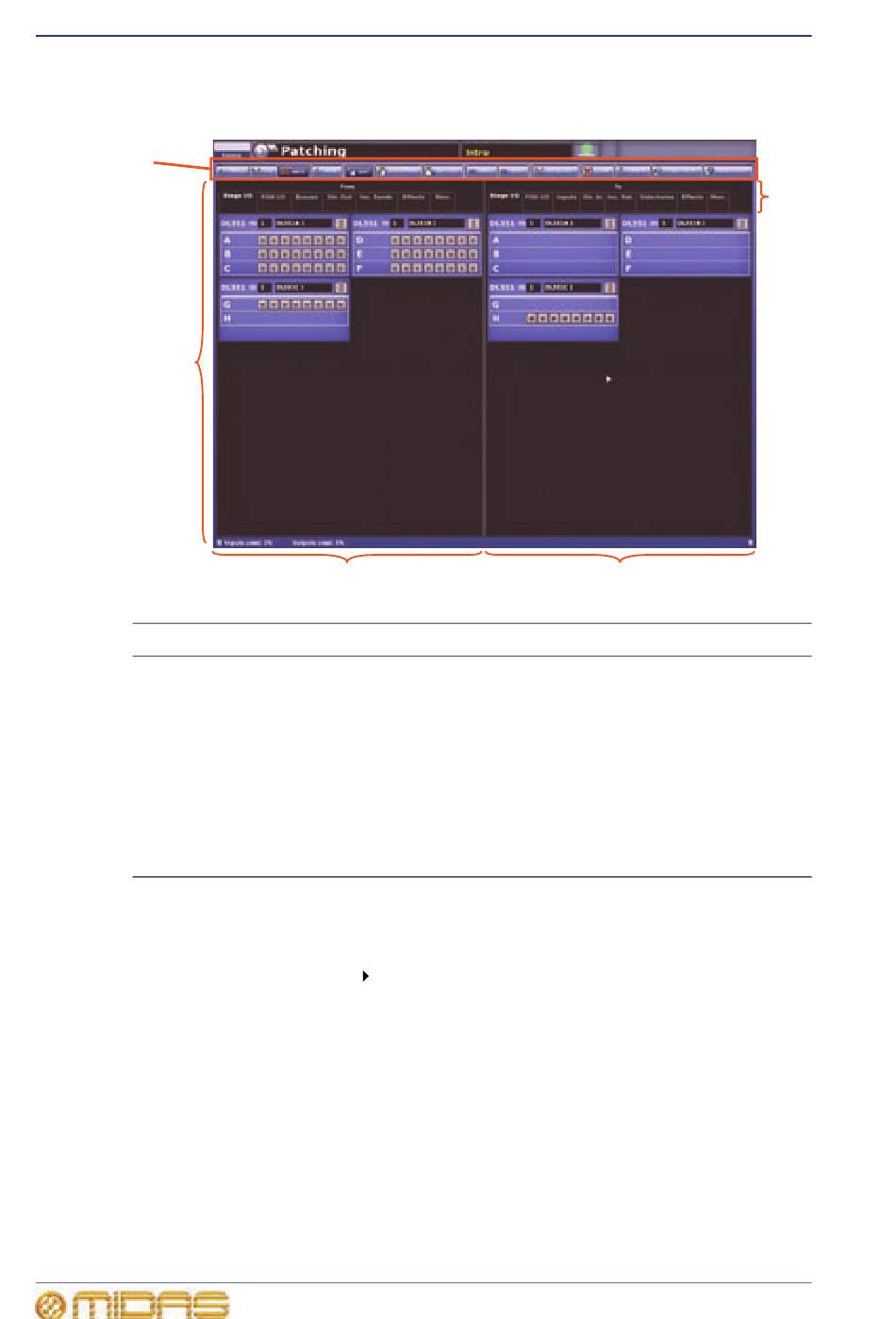

The I/O tabs represent the Stage and FOH racks, and contain graphical representations
(devices) of the units connected in those racks.
1
2
Item
1
2
3
4
5
>> To access the Patching screen
Do one of the following:
• At the GUI, choose home
• Press the patching/metering button in the primary navigation zone.
• At the appropriate GUI screen, click the src (source) or dest (destination) button.
The Patching screen will open at the appropriate tab/configuration window.
3
Description
Function button panel, contains the function buttons that enable patching
and device configuration (see "Patching screen function buttons" on
page 57).
Patching area, contains all of the patch connectors on tabs.
From section, has tabs that contain all of the patch connector sources (see
"About the tabs in the From section" on page 59).
To section, has tabs that contain all of the patch connector destinations
(see "About the tabs in the To section" on page 61).
Section titles and tab names.
Patching.
Chapter 8: Patching
4
PRO6 Live Audio System
Owner's Manual
5
