EQ (E zone)
EQ graph

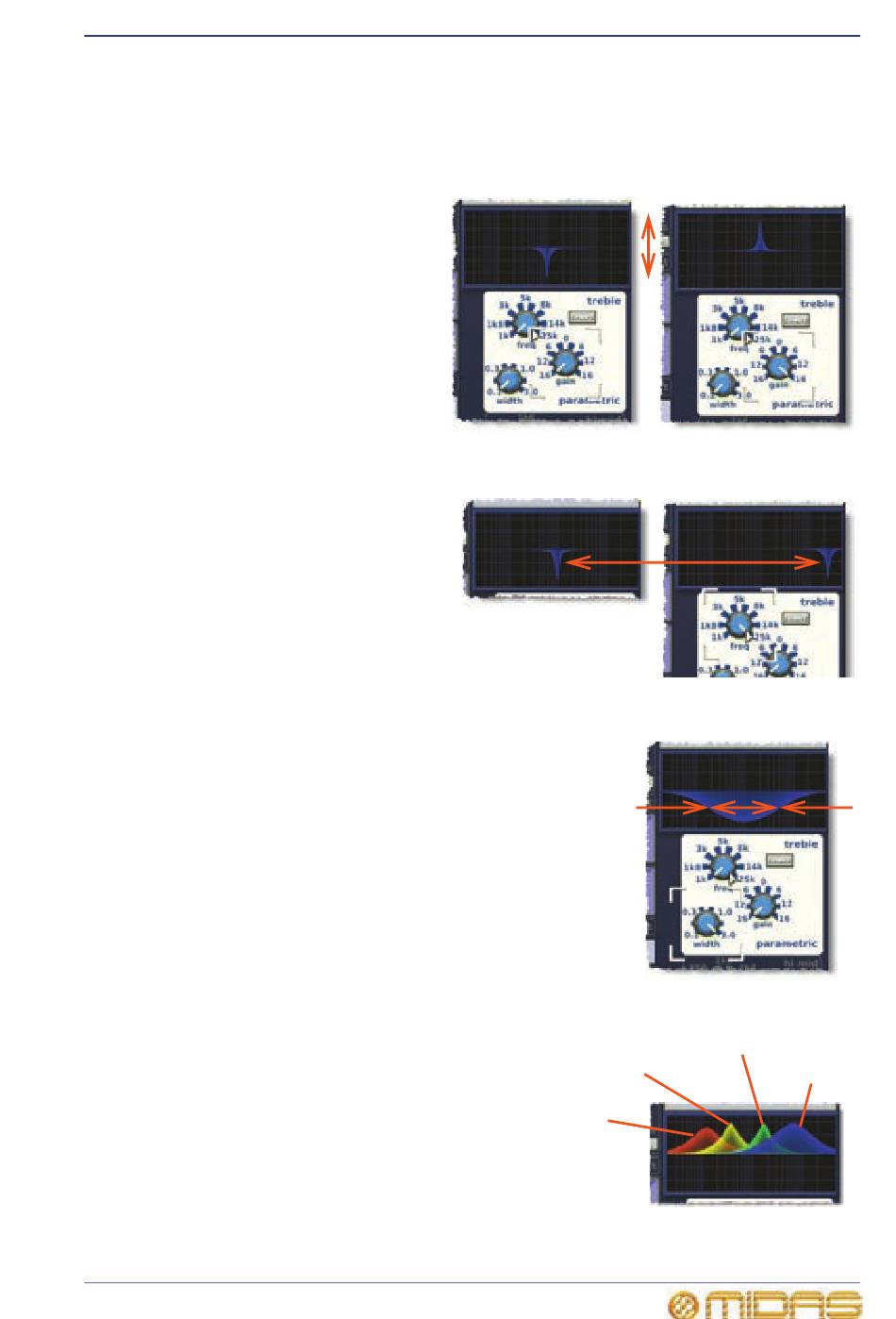

This section illustrates the use of the EQ gain, freq and width control knobs.
Gain
Adjusting the gain (gain control
knob) changes the height of the
envelope. The diagrams (right)
show the graphs at minimum
(left diagram) and maximum
gain. Note how the envelope
'flips' about the origin, which is
at 0dB.
Frequency
Adjusting the frequency (freq
control knob) changes the
horizontal position of the
envelope (as shown right).
Width
Adjusting the bandwidth (width control knob) changes
the width of the envelope (as shown right).
What the graph colours represent
Any combination of EQ envelopes for the
four bands can be displayed, and each
one is represented by a different colour
(as shown right).
PRO6 Live Audio System
Owner's Manual
Yellow = lo mid
Red = bass
277
Green = hi mid
Blue = treble
