Surround panning
About the controls in surround mode
When the PRO6 is configured to operate in one of the surround panning modes, the
spatial diagram that appears in the GUI channel strip gives you a visual representation
of the sound image in relation to the speakers.

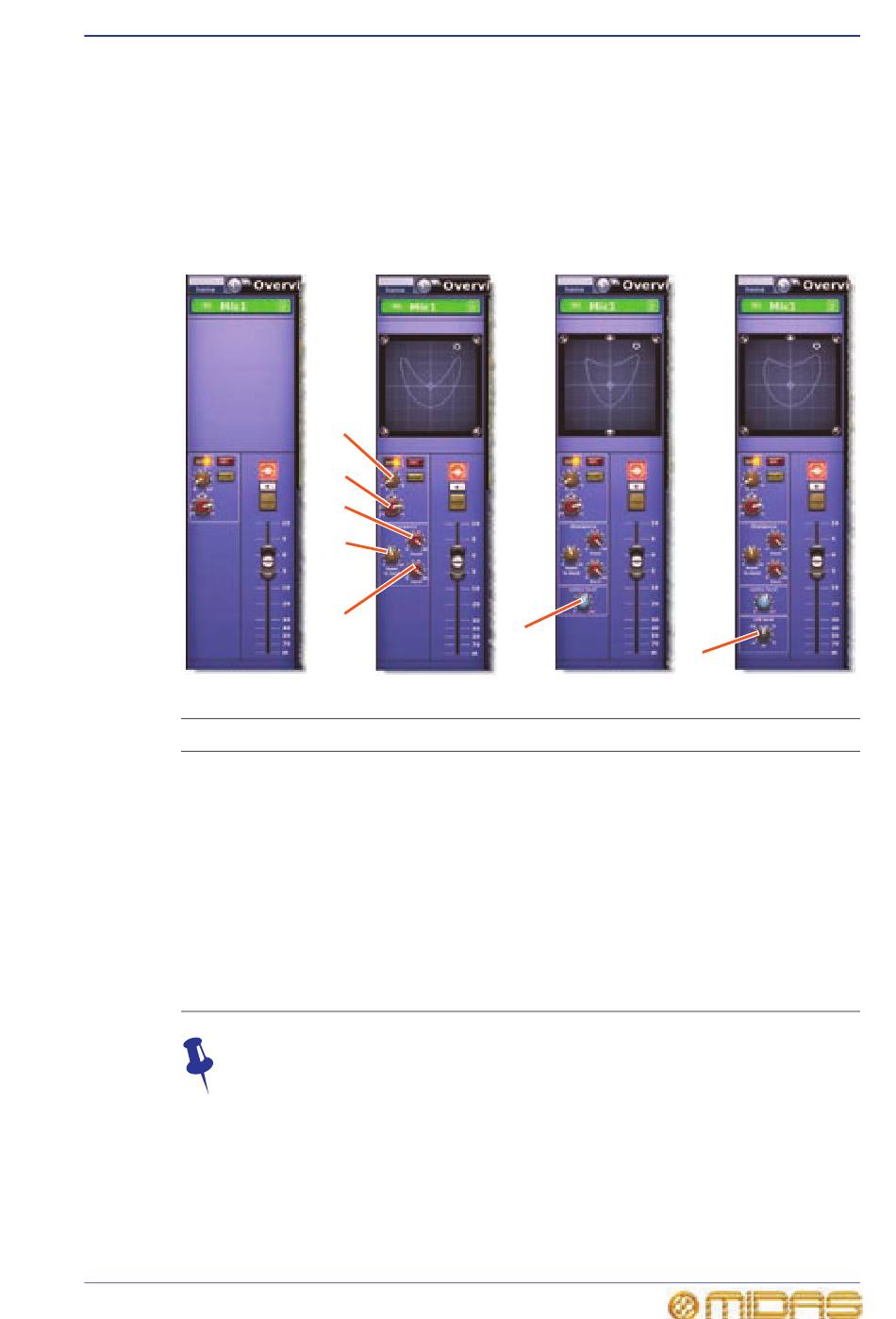

The following diagram shows the appearance of the GUI channel strip for each panning
mode, and describes the controls. It uses the input channels as an example, but this is
also typical for the outputs.
None
Item
1
2
3
4
5
6
7
Although the position cursor changes automatically according to the adjustment
of the surround panning controls, you can also adjust it on the GUI using drag.
PRO6 Live Audio System
Owner's Manual
Quad
1
2
3
4
5
Description
fb pan control knob, moves position cursor in spatial diagram up/down.
Left-centre-right control knob, moves position cursor in spatial diagram
left/right.
front control knob, adjusts the divergence of the front speakers.
front to back control knob, adjusts the divergence of the front and rear
speakers.
back control knob, adjusts the divergence of the rear speakers.
centre level control knob, adjusts the divergence of the centre speaker.
LFE level control knob, adjusts the signal level of the LFE (usually a
subwoofer).
