- Page 1 INTELLISYNC™ CONTROL AND MONITORING SYSTEM INSTALLATION GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Important Warning And Safety Instructions
IMPORTANT WARNING AND SAFETY INSTRUCTIONS This guide provides installation and operation instructions for this product. Consult Pentair with any questions regarding this equipment. Attention Installer: This guide contains important information about the installation, operation and safe use of this product. This information should be given to the owner and/or operator of this equipment after installation or left on or near the equipment. - Page 3 (NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA C22.1. All applicable local installation codes and ordinances must also be adhered to. Use only copper supply conductor’ s rated for 60C/75C sized based on ampacity to support all loads (refer to NEC tables). IntelliSync Control and Monitoring System Installation Guide...
- Page 4 (20 cm) à partir de toutes les personnes et ne doit pas être co-localisés ou fonctionner en conjonction avec une autre antenne ou un autre émetteur. IntelliSync Control and Monitoring System Installation Guide...
- Page 5 : (1) l’ a ppareil ne doit pas produire de brouillage, et (2) l’ u tilisateur de l’ a ppareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’ e n compromettre le fonctionnement. IntelliSync Control and Monitoring System Installation Guide...
-
Page 6: Table Of Contents
Connecting Power ................ Connecting a SuperFlo VS, VST, and SuperMax VST, WhisperFloXF VS and Max-E-ProXF VS Pump........ Connecting a SuperFlo and SuperMax VS Pump to IntelliSync..Wiring IntelliFlo (IntelliPro) Pump ..........Installing Ambient Air Temperature Sensor........Installing Water Temperature Sensor ........... -
Page 7: Overview/Features

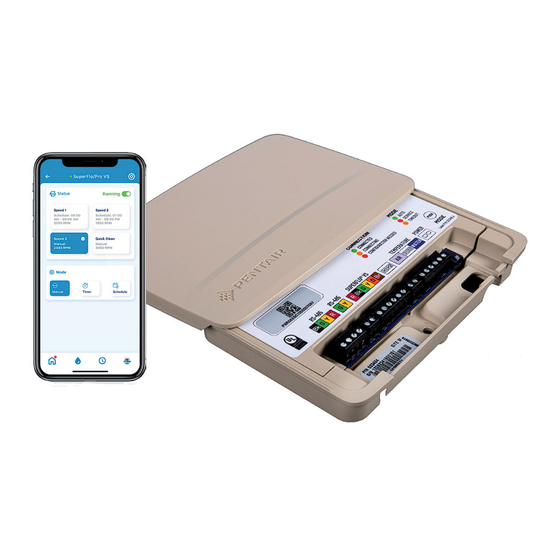

Overview IntelliSync Control and Monitoring System communicates to the homeowner's WiFi router using a 2.4GHz wireless connection. The Pentair Home app can control and monitor two pumps and two sensors through IntelliSync. Note: IntelliSync Control and Monitoring System supports pump speeds (RPM), not pump flows (GPM). -
Page 8: Intellisync Wiring Bay
Mode button for three seconds to enter Bluetooth pairing mode. ont: Barlow Light, medium and Condensed The Connection LED will start blinking (Green). From the Pentair Home app connect the IntelliSync Control and Monitoring System unit to the mobile device. -
Page 9: Intellisync Leds And Buttons Actions
IntelliSync™ Control and Monitoring LEDs and Button Action Button Connection Mode State Comment Action Amber Startup, connecting to Normal (Briefly) WiFi Green WiFi connected with internet Green/Red WiFi connected; no internet Red/Blink WiFi configuration Unit doesn't have WiFi configura- needed tion stored, has timed out. -
Page 10: Location And Installation
Location and Installation Before installing the IntelliSync™ Control and Monitoring System, read the following guidelines carefully: • Before permanent installation, test the 2.4 GHz WiFi signal strength at the location where the enclosure will be mounted (refer to "Testing WiFi Signal Strength" in the IntelliSync Pentair Home App User's Guide). -
Page 11: Connecting Power
Connecting Power to IntelliSync Control and Monitoring System Plug the IntelliSync 12 VDC, 1.5 AMP power adapter power cord to a 120 VAC power source. Plug the other end into the IntelliSync unit. Apply AC power to the IntelliSync unit. Both Mode and Connection LEDs will illuminate. - Page 12 PROGRAM 2 > PROGRAM 3 > QUICK CLEAN. Set the pump schedules to zero: To ensure any existing schedules on the pump do not conflict with the IntelliSync schedules, all schedules need to be set to zero duration for the pump to work properly.
- Page 13 Twist the lock nut on the cable to secure the cable. Run the cable from the pump to the IntelliSync unit screw terminals. Strip back the outer jacket of the cable by 1-inch, exposing the conductors. Strip back each conductor 1/4-inch.
-
Page 14: Connecting A Superflo And Supermax Vs Pump To Intellisync
1/4-inch. Insert and secure the five (5) conductors into the pump's DIP switch digital output terminals as shown below: Run the cable from the pump to the IntelliSync unit screw terminals. Strip back the outer jacket of the cable by 1-inch, exposing the conductors. Strip back each conductor 1/4-inch. -
Page 15: Wiring Intelliflo (Intellipro) Pump
Provided with the IntelliFlo pump is a 50 ft. (15.2 m) low voltage, two conductor RS-485 cable. Note: The IntelliFlo communication cable is not provided with IntelliSync. A 25 ft. (7.62 m) or 50 ft. (15.2 m) communication cable can be purchased separately. External Control Wiring Kit (P/N 350122). -
Page 16: Installing Ambient Air Temperature Sensor
Install the air sensor in a shady area (not in direct sunlight) near the equipment pad. Refer to sensor manual for specific sensor installation instructions. To wire the air temperature sensor to IntelliSync Control and Monitoring System: Unplug power from the IntelliSync unit. See page 11. -
Page 17: Replacement Parts List
See Figure 2. 12. Run a 22 AWG (provided with the sensors), two-conductor cable from the sensor to the IntelliSync Temperature Water screw terminals. 13. Strip back the outer jacket of the cable by 1-inch, exposing the two conductors. Strip back each conductor 1/4-inch. - Page 18 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 WWW.PENTAIR.COM All indicated Pentair trademarks and logos are property of Pentair Inc. or its global affiliates in the U.S.A. and/or other countries. Third party registered and unregistered trademarks and logos are the property of their respective owners.
