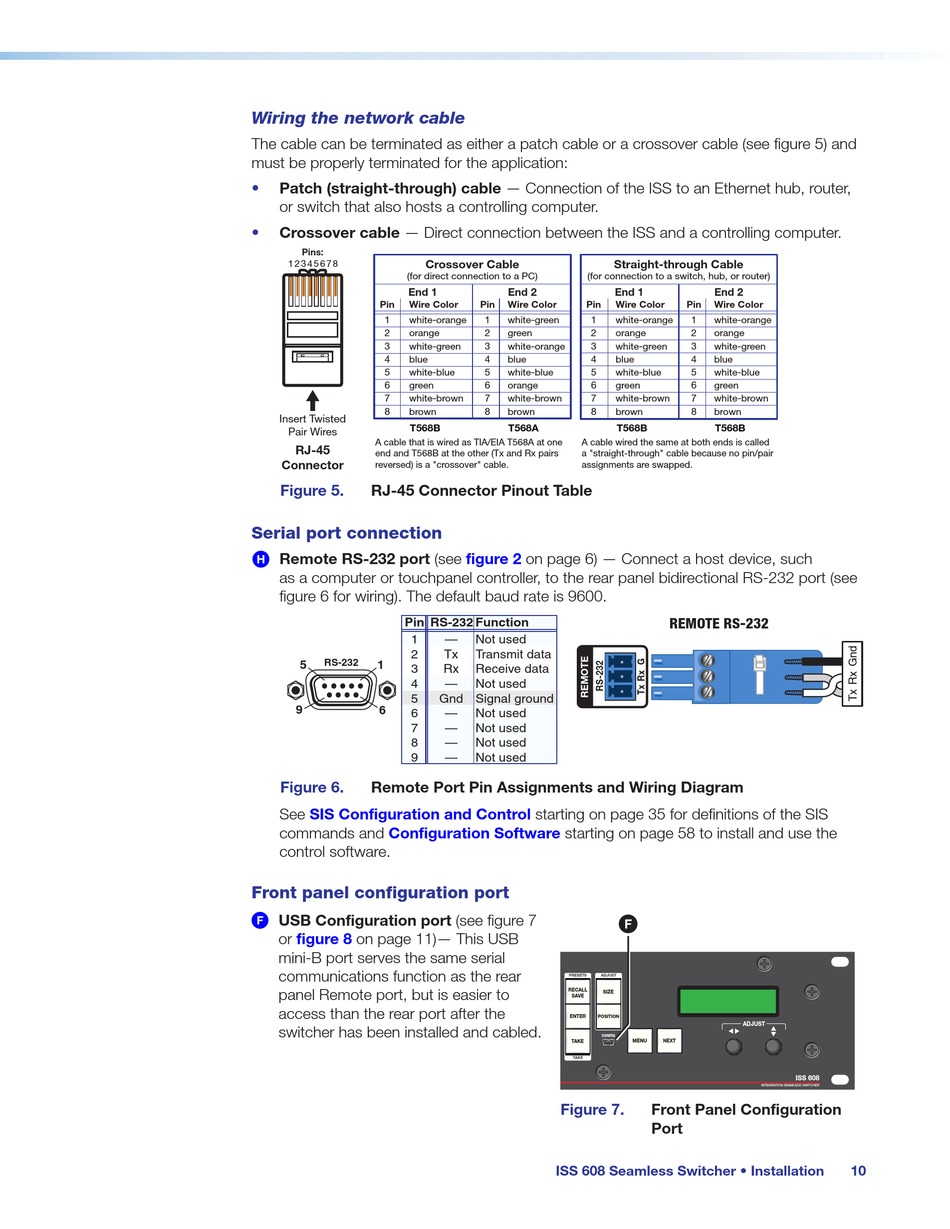

Extron electronics ISS 608 User Manual page 18

Wiring the network cable
The cable can be terminated as either a patch cable or a crossover cable (see figure 5) and
must be properly terminated for the application:
Patch (straight-through) cable — Connection of the ISS to an Ethernet hub, router,
•
or switch that also hosts a controlling computer.
Crossover cable — Direct connection between the ISS and a controlling computer.
•
Pins:
1 2 3 4 5 6 7 8
Insert Twisted
Pair Wires
RJ-45
Connector
Figure 5.
Serial port connection
Remote RS-232 port (see
H
as a computer or touchpanel controller, to the rear panel bidirectional RS-232 port (see
figure 6 for wiring). The default baud rate is 9600.
RS-232
5
9
Figure 6.
See SIS Configuration and Control
commands and
control software.
Front panel configuration port
USB Configuration port (see figure 7
F
A A B B
or figure 8
mini-B port serves the same serial
communications function as the rear
PROGRAM
1 2 3 4 5 6
panel Remote port, but is easier to
MUTE FREEZE
access than the rear port after the
PREVIEW switcher has been installed and cabled.
1 2 3 4 5 6
MUTE FREEZE
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568A
A cable that is wired as TIA/EIA T568A at one
end and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
RJ-45 Connector Pinout Table
figure 2 on page 6) — Connect a host device, such
Pin RS-232 Function
1 — Not used
2 Tx Transmit data
1
3 Rx Receive data
4 — Not used
5 Gnd Signal ground
6
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Remote Port Pin Assignments and Wiring Diagram
starting on page 35 for definitions of the SIS
Configuration Software
on page 11)— This USB
EFFECTS
7 8
DISSOLVE
WIPE
7 8
PIP
Straight-through Cable
(for connection to a switch, hub, or router)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-orange
2 orange 2 orange
3 white-green 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 green
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568B
A cable wired the same at both ends is called
a "straight-through" cable because no pin/pair
assignments are swapped.
REMOTE RS-232
starting on page 58 to install and use the
F F
PRESETS ADJUST
RECALL
CUT
SIZE
SAVE
VIDEO
ENTER POSITION
KEY
CONFIG
MENU NEXT
LOGO TAKE
TAKE
Figure 7. Front Panel Configuration
Port
ISS 608 Seamless Switcher • Installation
ADJUST
ISS 608
INTEGRATION SEAMLESS SWITCHER
