Appendix H: Changing EPROM for ASPI-card compatibility...
Take the new chip out of its plastic container. Notice that there is a notch on
9
one end, which is to help you place the chip correctly in the socket on the
board. The socket has the same notch as well.
To insert the EPROM chip, line up the pins on the chip with the holes in the
socket and gently press the chip all the way in. Watch the pins on the chip
as it slips into the socket to make sure that the pins are not bending.
Inserting the EPROM the wrong way will damage the chip when the
Warning
scanner is turned on. Make sure the notches are pointing the same
direction. Do not match the label on the new chip with the way the old
label is on the old chip. Make sure you match the notches, since the
labels could be upside down

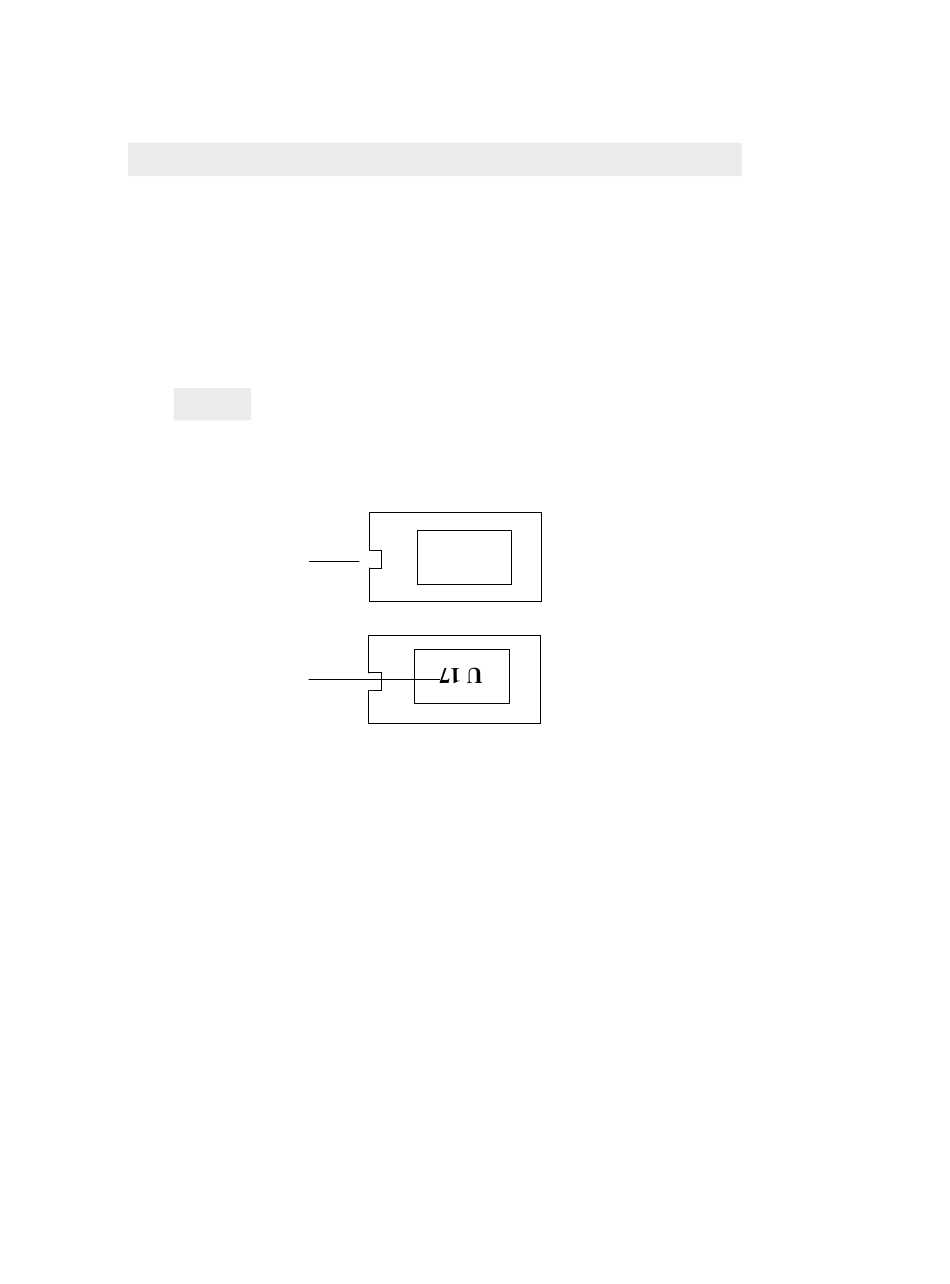

Match the notch
on the chip to the
notch on the
socket.
Label may be
upside down.
Ignore this.
This completes the installation. Finish up with these steps:
10
• Slowly lift up the cover plate on its near side and gently turn it back over.
• Lift the right end of the cover plate. Find the loose end of the ribbon cable
and attach it to the circuit board. There is only one way to put back the
ribbon cable connector. If it does not slide easily over the pins, turn the
connector around and try it the other way.
• Place the cover plate back down on the scanner. To lock it into place, slide
the cover plate to the left. Then replace the cover screws.
