Plug In Refrigerator; Install Side Trims - Jenn-Air JB36NXFXLE Install

4.
Tape the 7 ft (2.13 m) flexible codes-approved water
supply line to the floor, 7" (17.78 cm) from the left
side of the refrigerator. Tape along the length of
the tubing, which will allow it to pass beneath the
refrigerator without interference.
NOTE: Allow a minimum of 26" (66.04 cm) of flexible
codes approved water supply line to be loose at
the front of the refrigerator for connecting to the
refrigerator.
5.
Connect the 7 ft (2.13 m) flexible codes-approved
water supply line to the refrigerator.
NOTE: If the main water shutoff valve is behind the
refrigerator, a secondary water shutoff valve may be
installed in line with the water supply line at the front
of the product.

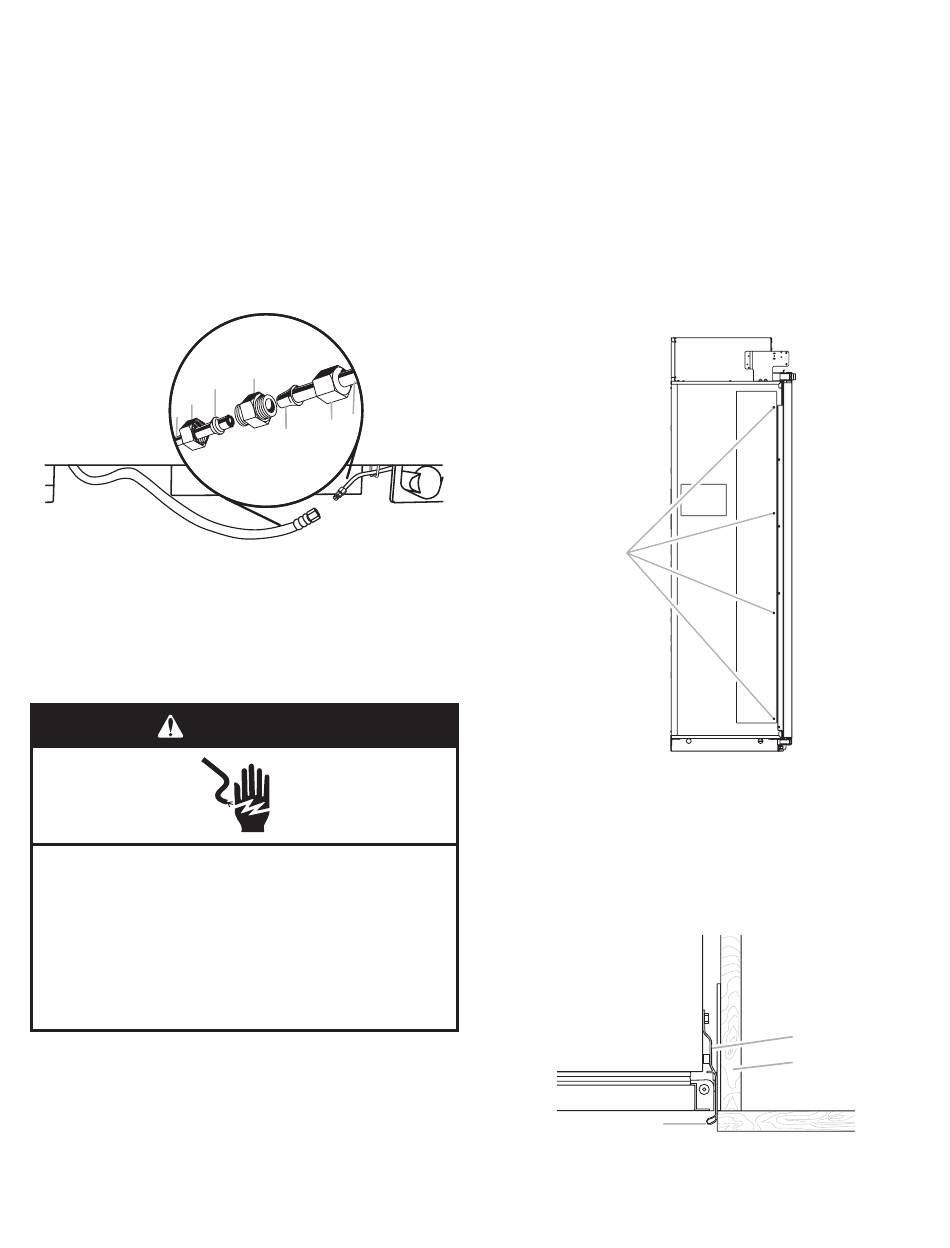

B
A
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling
6.
Turn on the water supply valve and check all
connections for leaks.

PLUG IN REFRIGERATOR

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person. Do not use a cord that shows cracks or
abrasion damage along its length or at either the plug or
connector end.
1.
Set control switch at top of cabinet to the OFF
position.
2.
Plug into a grounded 3 prong outlet.
16
D
C
G
F
E
E. Bulb
F. Nut
G. Refrigerator water tubing

INSTALL SIDE TRIMS

The side trims cover the space between the refrigerator
and the adjacent cabinets. There is a trim piece taped to
each side of the refrigerator. Install each trim piece to the
side of the refrigerator to which it is taped.
1.
Remove the tape attaching the trim pieces to the
sides of the refrigerator. Set the trim pieces aside.
IMPORTANT: Custom wood panel (with 1/8" gap)
installations only - The bulb-shaped edge of the
side trim piece will interfere with the panels. Peel
the bulb-shaped, long edge from the trim piece
and discard. See the "Top View" graphic later in this
section.
2.
Remove the four screws from the side of the
refrigerator cabinet.
A
A. Side trim screws
3.
Using the original holes and the screws removed in
Step 2, fasten the side trim to the refrigerator cabinet.
NOTE: Make sure to fasten each trim piece to the
side of the refrigerator cabinet from which it was
removed. The bulb shaped edge should be forward
with the notch at the top, as shown.
TOP VIEW
C
D
A. Side trim
B. Adjacent cabinet
A
B
C. Door
D. Bulb-shaped edge
