Jenn-Air JB36NXFXLW Product Dimensions

PRODUCT MODEL NUMBERS
JF42NXFXDW JB36NXFXLW
Electrical: A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical
supply is required. It is recommended that a separate circuit serving only your
refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not
use an extension cord.
A grounded 3 prong electrical outlet should be placed within 4" (10.2 cm) of the right
side cabinets or end panel.
Water Supply: A cold water supply with water pressure between 30 and 120 psi (207
and 827 kPa) is required to operate the water dispenser and ice maker. If you have
questions about your water pressure, call a licensed, qualified plumber.
If a reverse osmosis water filtration system is connected to your cold water supply,
the water pressure to the reverse osmosis system needs to be a minimum of 40 to
60 psi (276 to 414 kPa).
The water shutoff should be located in the base cabinet on either side of the
refrigerator or some other easily accessible area. If the water shutoff valve is not in
the cabinets, the plumbing for the water line can come through the floor.
Location: Do not install the refrigerator near an oven, radiator, or other heat source,
or in a location where the temperature will fall below 55°F (13°C). Floor must
support the refrigerator weight, more that 600 lbs (272 kg), door panels and
contents of the refrigerator.

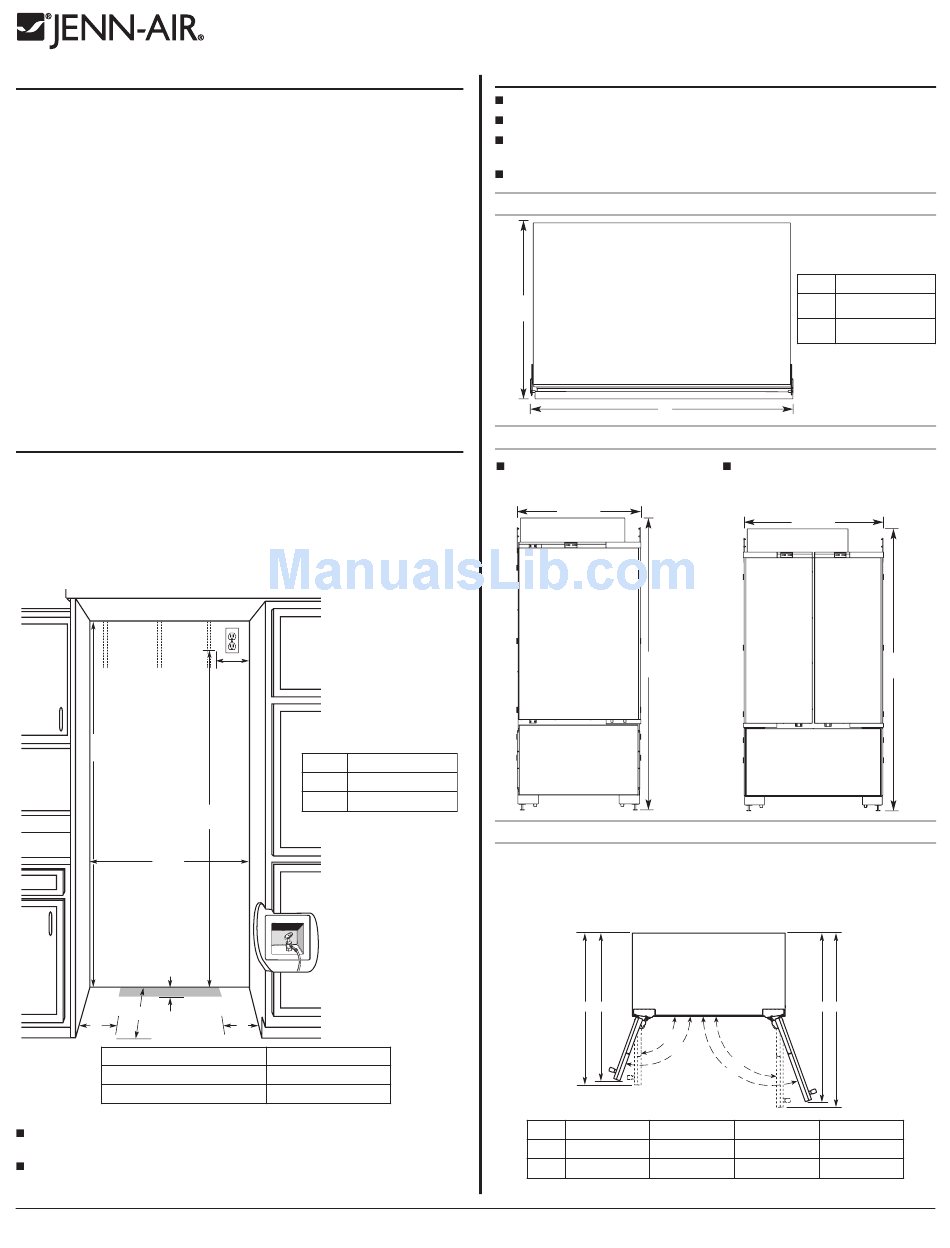

OPENING DIMENSIONS
A solid soffit or wall cabinet must be installed 84" (213.4 cm) above the floor. If the
solid soffit is higher than 84" (213.4 cm) or one is not available, then the refrigerator
must be braced.
For a fully integrated installation, a minimum of 6" (15.24 cm) of open space above
the refrigerator is required. Anti-tip boards are required.
If the anti-tip boards are needed, they must be attached to the rear wall studs so that
there is 84" (213.4 cm) from the bottom of the anti-tip board to the floor. See "Install
Anti-Tip Boards" for more information.
80" - 90"
(203-229 cm)
84" (213.4 cm)
to bottom of solid soffit
A
Width
(see chart following)
B
1"
6" (2.54 cm)
(15.2 cm)
Installation Type
Standard Flush (new installation) 25" (63.5 cm) minimum
Retrofit Installations
IMPORTANT:
Flooring under refrigerator must be at same level as the room. Face of cabinetry
must be plumb.
The width of the opening (Width A), must be as specified for your model, for at
least 2" (5.08 cm) back from the face of the cabinet. If your opening does not meet
this requirement, you will need to make modifications.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Bottom Mount Built-in Refrigerator
JB36NXFXRW
4"
(10.2 cm)
Model Width A (as shown)
36 36" (91.4 cm)
42 42" (106.7 cm)
77"
(196 cm)
6"
(15.2 cm)
Depth B (as shown)
24" (60.9 cm) minimum
PRODUCT DIMENSIONS
The power cord is 84" (213 cm) long.
The water supply line is located at the front of the refrigerator.
The depth from the front face of the doors to the back of the refrigerator cabinet
is 24" (60.96 cm) without panels.
The required thickness for all custom overlay panels is
TOP VIEW
24"
(61.0 cm)
FRONT VIEW
Width dimensions were measured
from hinge edge to clip edge.
³⁄₄
35 "
(90.8 cm)
DOOR SWING DIMENSIONS
The location must permit both doors to open to a minimum of 90°. Allow 4
(11.4 cm) minimum space between the side of the refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay panels, custom
handles, or extended handles.
A B
Model A
36 36" (91.4 cm)
42 42" (106.7 cm) 42" (106.7 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
3 ⁄ " (1.91 cm).
4
Model Width A (as shown)
36
42
A
Width dimensions were measured
from hinge edge to hinge edge.
³⁄₄
41 "
(106.1 cm)
84"
(213.4 cm)
C D
90˚
110˚
90˚
110˚
B C
39 ⁄ " (101.0 cm) 45 ⁄ " (115.3 cm) 46
3 3
4 8
48 ⁄ " (123.5 cm) 50
5
8
³⁄₄
35 " (90.8 cm)
³⁄₄
41 " (106.1 cm)
84"
(213.4 cm)
1
⁄ "
2
D
⁄ " (118.8 cm)
3
4
⁄ " (127.6 cm)
1
4
Ref. W10297654A
10/26/2009
