Endress+Hauser Proline Promass Q 300 Manual

Endress+Hauser Proline Promass Q 300 Manual

Coriolis flowmeter
Hide thumbs Also See for Proline Promass Q 300:
Table of Contents

Advertisement

Quick Links

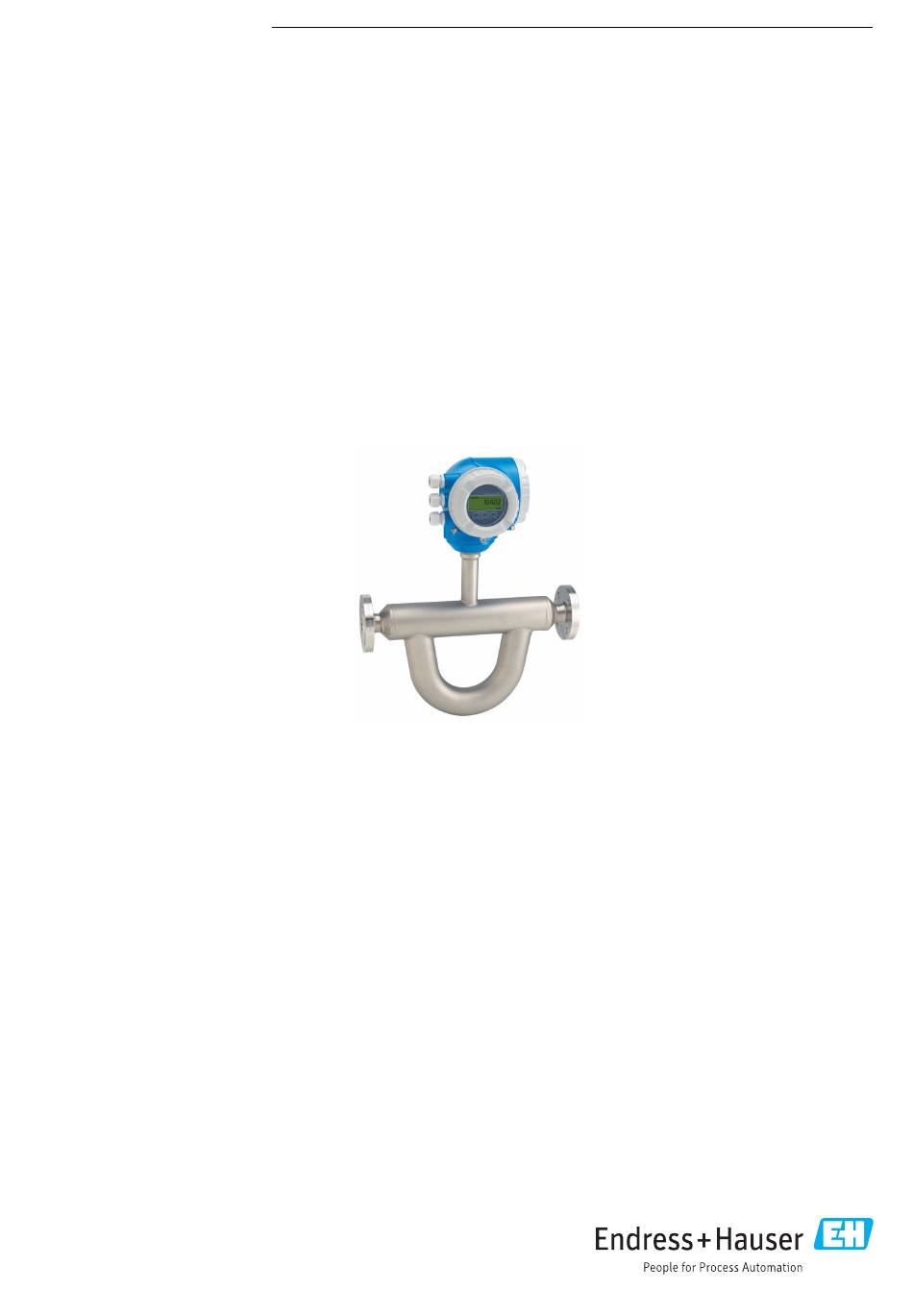

TI01277D/06/EN/02.16
71342172
The innovative specialist for challenging applications with a compact, easily
accessible transmitter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Highest measurement performance for custody transfer,
density and challenging applications
Device properties
• Mass flow: Measured error ±0.05 % (PremiumCal)
• Density: Measured error ±0.2 kg/m
• High turndown due to low pressure loss/zero point
• Compact dual‐compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Products
Technical Information
Proline Promass Q 300
Coriolis flowmeter
3
Solutions
Your benefits
• Guaranteed measurement quality – premium accuracy for
mass flow, volume flow and density
• Optimized performance for liquids with entrained gas – MFT
(multi-frequency technology)
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no in/outlet run needs
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass Q 300

Summary of Contents for Endress+Hauser Proline Promass Q 300

  • Page 1 Products Solutions Services TI01277D/06/EN/02.16 71342172 Technical Information Proline Promass Q 300 Coriolis flowmeter The innovative specialist for challenging applications with a compact, easily accessible transmitter Application Your benefits • Measuring principle operates independently of physical fluid • Guaranteed measurement quality – premium accuracy for...

  • Page 2: Table Of Contents

    Proline Promass Q 300 Table of contents Document information ..... . . 4 Climate class .......
  • Page 3 Proline Promass Q 300 Application packages ..... . . 80 Diagnostics functions ......80 Heartbeat Technology .

  • Page 4: Document Information

    Proline Promass Q 300 Document information Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Promass Q 300 Symbols in graphics Symbol Meaning 1, 2, 3,... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces.

  • Page 6: Measuring System

    Proline Promass Q 300 Density measurement The measuring tube is continuously excited at its resonance frequency. A change in the mass and thus the density of the oscillating system (comprising measuring tube and fluid) results in a corresponding, automatic adjustment in the oscillation frequency. Resonance frequency is thus a function of medium density.

  • Page 7: Equipment Architecture

    Proline Promass Q 300 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Non-hazardous area and Zone 2/Div. 2 Hazardous area and Zone 1/Div.
  • Page 8 Proline Promass Q 300 When the device is delivered, the device does not have an access code and is equivalent to 0000 (open). WLAN passphrase A connection between an operating unit (e.g. notebook or tablet) and the device via the WLAN interface which can be ordered as an option is protected by the network key.

  • Page 9: Input

    Proline Promass Q 300 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring ranges for liquids Measuring range full scale...

  • Page 10: Operable Flow Range

    Proline Promass Q 300 Recommended measuring range "Flow limit" section →  47 Operable flow range Over 1000 : 1. Flow rates above the preset full scale value do not override the electronics unit, with the result that the totalizer values are registered correctly.
  • Page 11 Proline Promass Q 300 Input signal level • Low signal: DC –3 to +5 V • High signal: DC 12 to 30 V Assignable functions • Off • Reset the individual totalizers separately • Reset all totalizers • Flow override...

  • Page 12: Output

    Proline Promass Q 300 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 3. The table must be read vertically (↓).

  • Page 13: Output Signal

    Proline Promass Q 300 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive) Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 14 Proline Promass Q 300 Load 0 to 700 Ω Resolution 0.38 µA Damping Adjustable: 0.07 to 999 s Assignable measured • Mass flow variables • Volume flow • Corrected volume flow • Density • Reference density • Temperature  The range of options increases if the measuring device has one or more application packages.
  • Page 15 Proline Promass Q 300 Open-circuit voltage DC 28.8 V (active) Switching behavior Binary, conductive or non-conductive Switching delay Adjustable: 0 to 100 s Number of switching Unlimited cycles Assignable functions • Off • On • Diagnostic behavior • Limit value –...

  • Page 16: Signal On Alarm

    Proline Promass Q 300 Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions • Off • On • Diagnostic behavior • Limit value – Mass flow – Volume flow – Corrected volume flow –...
  • Page 17 Proline Promass Q 300 Current output 0/4 to 20 mA 4 to 20 mA Failure mode Choose from: • 4 to 20 mA in accordance with NAMUR recommendation NE 43 • 4 to 20 mA in accordance with US • Min. value: 3.59 mA •...

  • Page 18: Ex Connection Data

    Proline Promass Q 300 Plain text display With information on cause and remedial measures Additional information on remote operation →  70 Web server Plain text display With information on cause and remedial measures Light emitting diodes (LED) Status information...

  • Page 19: Low Flow Cut Off

    Proline Promass Q 300 Intrinsically safe values Intrinsically safe values Intrinsically safe or NIFW values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output 4-20 mA = 30 V...
  • Page 20 Proline Promass Q 300 Dynamic variables Read out the dynamic variables: HART command 3 The measured variables can be freely assigned to the dynamic variables. Measured variables for PV (primary dynamic variable) • Mass flow • Volume flow • Corrected volume flow •...
  • Page 21 Proline Promass Q 300 Output values Analog input 1 to 8 (from measuring device to • Mass flow automation system) • Volume flow • Corrected volume flow • Carrier mass flow • Target mass flow • Density • Reference density •...
  • Page 22 Proline Promass Q 300 Configuration of the device • DIP switches on the I/O electronics module address • Local display • Via operating tools (e.g. FieldCare) Compatibility with If the device is replaced, the Promass 300 measuring device supports the earlier model compatibility of the cyclic data with earlier models.
  • Page 23 Proline Promass Q 300 Transducer Blocks Block Contents Output values Setup Transducer Block All parameters for standard commissioning. No output values (TRDSUP) Advanced Setup All parameters for more accurate measurement No output values Transducer Block configuration. (TRDASUP) Display Transducer Parameters for configuring the local display.
  • Page 24 Proline Promass Q 300 Function blocks Block Number Execution times Process variables (Channel) blocks Resource Block This Block (extended functionality) contains – (RB) all the data that uniquely identify the device; it is the equivalent of an electronic nameplate for the device.

  • Page 25: Power Supply

    Proline Promass Q 300 Device type Slave Slave address range 1 to 247 Broadcast address range Function codes • 03: Read holding register • 04: Read input register • 06: Write single registers • 08: Diagnostics • 16: Write multiple registers •...

  • Page 26: Device Plugs Available

    Proline Promass Q 300 Modbus RS485 Supply voltage Input/output 1 Input/output 2 Input/output 3 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) The terminal assignment depends on the specific device version ordered →  12.

  • Page 27: Power Consumption

    Proline Promass Q 300 Power consumption Transmitter Max. 10 W (active power) Current consumption Transmitter • Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) Power supply failure • Totalizers stop at the last value measured.
  • Page 28 Proline Promass Q 300 Connection examples Current output 4 to 20 mA HART 4...20 mA A0029055  2 Connection example for 4 to 20 mA HART current output (active) Automation system with current input (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications →...
  • Page 29 Proline Promass Q 300 HART input 4...20 mA A0028763  4 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 30 Proline Promass Q 300 FOUNDATION Fieldbus A0028768  6 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 31 Proline Promass Q 300 Current output 4-20 mA 4...20 mA A0028758  8 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load Transmitter 4...20 mA A0028759  9 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g.
  • Page 32 Proline Promass Q 300 Switch output A0028760  11 Connection example for switch output (passive) Automation system with switch input (e.g. PLC) Power supply Transmitter: Observe input values →  14 Double pulse output A0029280  12 Connection example for double pulse output (active) Automation system with double pulse input (e.g.

  • Page 33: Potential Equalization

    Proline Promass Q 300 Relay output A0028760  14 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: Observe input values →  15 Current input A0028915  15 Connection example for 4 to 20 mA current input...

  • Page 34: Cable Entries

    Proline Promass Q 300 Cable entries • Cable gland: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) • Thread for cable entry: – NPT ½" – G ½" – M20 • Device plug for digital communication: M12 Only available for certain device versions →...
  • Page 35 Proline Promass Q 300 Pulse/frequency/switch output Standard installation cable is sufficient. Double pulse output Standard installation cable is sufficient. Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient.

  • Page 36: Performance Characteristics

    Proline Promass Q 300 Performance characteristics reference operating • Error limits based on ISO 11631 conditions • Water with +15 to +45 °C (+59 to +113 °F) at2 to 6 bar (29 to 87 psi) • Specifications as per calibration protocol •...

  • Page 37: Repeatability

    Proline Promass Q 300 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 200 000 20 000 10 000 4 000 2 000 550 000 55 000 27 500 11 000 5 500 1 100 US units...

  • Page 38: Influence Of Medium Temperature

    Proline Promass Q 300 Influence of medium Mass flow and volume flow temperature o.f.s. = of full scale value When there is a difference between the temperature at zero point adjustment and the process temperature, the typical measured error of the sensor is DN 25 (1"): ±0.0001 % o.f.s./°C (±0.00005 % o.f.s./°F)

  • Page 39: Design Fundamentals

    Proline Promass Q 300 [% o.r./bar] [% o.r./psi] [mm] [in] –0.0005 –0.00003 –0.0005 –0.00003 o.r. = of reading, o.f.s. = of full scale value Design fundamentals BaseAccu = base accuracy in % o.r., BaseRepeat = base repeatability in % o.r.

  • Page 40: Mounting Location

    Proline Promass Q 300 Mounting location A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. • Directly upstream of a free pipe outlet in a down pipe.

  • Page 41: Inlet And Outlet Runs

    Proline Promass Q 300 Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter at Exceptions: →  18,  41 A0015589 Horizontal orientation, transmitter at bottom Exceptions: →  18,  41 A0015590 Horizontal orientation, transmitter at →  41 side A0015592 Applications with low process temperatures may decrease the ambient temperature.
  • Page 42 Proline Promass Q 300 RUPTURE DISK A0030346 Rupture disk label Rupture disk with 1/2" NPT internal thread with 1" width across flat Transport protection For information on the dimensions: see the "Mechanical construction -> Accessories" section Zero point adjustment All measuring devices are calibrated in accordance with state-of-the-art technology. Calibration takes place under reference conditions →...

  • Page 43: Environment

    ‣ If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. You can order a weather protection cover from Endress+Hauser : →  81 Storage temperature –50 to +80 °C (–58 to +176 °F) Climate class DIN EN 60068-2-38 (test Z/AD)

  • Page 44: Interior Cleaning

    Proline Promass Q 300 Interior cleaning • Cleaning in place (CIP) • Sterilization in place (SIP) Options • Oil- and grease-free version for wetted parts, without inspection certificate Order code for "Service", option HA • Oil- and grease-free version for wetted parts, with inspection certificate according to British Standard –...

  • Page 45: Density

    Proline Promass Q 300 Density 0 to 5 000 kg/m (0 to 312 lb/cf) Pressure-temperature The following pressure/temperature diagrams apply to all pressure-bearing parts of the device and not just the process connection. ratings Flange according to EN 1092-1 (DIN 2501)

  • Page 46: Secondary Containment

    Proline Promass Q 300 Flange JIS B2220 [psi] [bar] 1200 -200 [°C] [°F] -320 A0029639-EN  21 With flange material 1.4404 (F316/F316L) Secondary containment The sensor housing is filled with helium and protects the electronics and mechanics inside. The following secondary containment pressure ratings/burst pressures are only valid for standard devices and/or devices equipped with closed purge connections (never opened/as delivered).

  • Page 47: Rupture Disk

    Proline Promass Q 300 For information on the dimensions: see the "Mechanical construction" section →  49 Rupture disk To increase the level of safety, a device version with a rupture disk with a trigger pressure of … can be used (order code for "Sensor option", option CA "rupture disk").

  • Page 48: Heating

    • After putting the device into circulation or after sealing the device, operation is only possible to a limited extent. • Detailed ordering information is available from your local Endress+Hauser sales center for national approvals, which are based on the OIML certificates, for applications with liquids other than water or cryogenic liquids .

  • Page 49: Mechanical Construction

    Proline Promass Q 300 Mechanical construction Dimensions in SI units Compact version A0029786 Order code for "Housing", option A "Aluminum, coated" [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 15.2 331.5 548.5 28.0 43.3 68.9 1 060...
  • Page 50 Proline Promass Q 300 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 43.5 68.9 1 059 For version without local display: values - 16 mm Depending on the cable gland used: values up to + 30 mm Dependent on the respective process connection Order code for "Housing", option L "Cast, stainless"...
  • Page 51 Proline Promass Q 300 Flange according to EN 1092-1 (DIN 2501): PN16 with reduction in nominal diameter 1.4404 (F316/F316L) reduction Order code for [mm] to DN "Process [mm] [mm] [mm] [mm] [mm] [mm] [mm] connection", Option 8 × ⌀ 18 107.1...
  • Page 52 Proline Promass Q 300 Flange according to EN 1092-1 (DIN 2501 / DIN 2512N): PN 100 1.4404 (F316/F316L): order code for "Process connection", option D4S Flange with groove according to EN 1092-1 Form D (DIN 2512N): PN 100 1.4404 (F316/F316L): order code for "Process connection", option D8S...
  • Page 53 Proline Promass Q 300 Flange according to ASME B16.5: Class 300 with reduction in nominal diameter 1.4404 (F316/F316L) reduction Order code for [mm] to DN "Process [mm] [mm] [mm] [mm] [mm] [mm] [mm] connection", Option 168.3 8 × ⌀ 22.3 28.4...
  • Page 54 Proline Promass Q 300 Flange JIS B2220: 40K 1.4404 (F316/F316L) Order code for "Process connection", option NGS [mm] [mm] [mm] [mm] [mm] [mm] [mm] 4 × Ø19 8 × Ø19 8 × Ø23 8 × ⌀25 1 168 Surface roughness (flange): Ra 1.6 to 3.2 µm Flange JIS B2220: 63K 1.4404 (F316/F316L)
  • Page 55 4 × ⌀ 9 – 3A-version available: order code for "Additional approval", option LP in conjunction with Ra ≤ 0.8 µm: Order code for "Measuring tube material", option SB Information on the installation length is available from your Endress+Hauser Sales Center. Endress+Hauser...
  • Page 56 3A-version available: order code for "Additional approval", option LP in conjunction with Ra ≤ 0.8 µm: Order code for "Measuring tube material", option SB The connection complies with the hygienic clamp dimensions as per ASME BPE. Information on the installation length is available from your Endress+Hauser Sales Center. Endress+Hauser...
  • Page 57 Proline Promass Q 300 Cable glands Threaded adapter DIN 11851, DIN11864-1, SMS 1145 A0015628 Length tolerance for dimension L in mm: +1.5 / –2.0 Threaded hygienic connection DIN 11851, for pipe according to DIN11866, series A 1.4404 (316/316L) Order code for "Process connection", option FMW...
  • Page 58 Proline Promass Q 300 Threaded hygienic connection SMS 1145 1.4404 (316/316L) Order code for "Process connection", option SCS [mm] [in] [mm] [mm] Rd 132 × ¹⁄₆ 97.6 1 128 3A-version available: order code for "Additional approval", option LP in conjunction with Ra ≤...
  • Page 59 Proline Promass Q 300 Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  24 Engineering unit mm (in) External WLAN antenna 93 (3.6) 68 (2.7) 161 (6.3) A0028923  25 Engineering unit mm (in)

  • Page 60: Dimensions In Us Units

    Proline Promass Q 300 Dimensions in US units Compact version A0029786 Order code for "Housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 7.87 5.55 2.32 6.65 2.68 3.98 0.60 13.05 21.60 8.54...
  • Page 61 Proline Promass Q 300 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 7.87 5.55 2.32 6.65 2.68 3.98 1.71 14.88 35.51 20.63 7.87 5.55 2.32 6.65 2.68 3.98 2.71 15.91 41.70 25.79 For version without local display: values - 0.63 in Depending on the cable gland used: values up to + 1.18 in...
  • Page 62 Proline Promass Q 300 Flange according to ASME B16.5: Class 300 1.4404 (F316/F316L) Order code for "Process connection", option ABS [in] [in] [in] [in] [in] [in] [in] 4.92 3.50 4 × Ø0.75 0.69 1.05 17.32 6.50 5.00 8 × Ø0.75 0.88...
  • Page 63 3A-version available: order code for "Additional approval", option LP in conjunction with Ra ≤ 32 µin: Order code for "Measuring tube material", option SB The connection complies with the hygienic clamp dimensions as per ASME BPE. Information on the installation length is available from your Endress+Hauser Sales Center. Endress+Hauser...
  • Page 64 Proline Promass Q 300 Cable glands Threaded hygienic connection SMS 1145 A0015628 Length tolerance for dimension L in inch: +0.06 / –0.08 Threaded hygienic connection SMS 1145 1.4404 (316/316L) Order code for "Process connection", option SCS [in] [in] [in] [in] Rd 40 ×...

  • Page 65: Weight

    Proline Promass Q 300 [in] [in] [in] 1.26 9.45 2.09 17.80 3.15 14.96 4.17 22.99 Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  27 Engineering unit mm (in) External WLAN antenna 93 (3.6)

  • Page 66: Materials

    Proline Promass Q 300 Weight [kg] [mm] Weight in US units Weight [lbs] [in] Materials Transmitter housing Order code for "Housing": • Option A "Aluminum, coated": aluminum, AlSi10Mg, coated • Option L "Cast, stainless": cast, stainless steel, 1.4409 (CF3M) similar to 316L Window material Order code for "Housing":...
  • Page 67 Proline Promass Q 300 Cable entry/cable gland Material Adapter for cable entry with internal thread NPT ½" Device plug coupling Plug M12 × 1 • Socket: Stainless steel, 1.4404 (316L) • Contact housing: Polyamide • Contacts: Gold-plated brass Order code for "Housing", option L "Cast, stainless"...

  • Page 68: Process Connections

    Proline Promass Q 300 Process connections Fixed flange connections: – EN 1092-1 (DIN 2501) flange – EN 1092-1 (DIN 2512N) flange – ASME B16.5 flange – JIS B2220 flange For information on the different materials used in the process connections →  67 Surface roughness All data relate to parts in contact with fluid.
  • Page 69 Proline Promass Q 300 A0026785  30 Operation with touch control Display elements • 4-line, illuminated, graphic display • White background lighting; switches to red in event of device errors • Format for displaying measured variables and status variables can be individually configured •...

  • Page 70: Remote Operation

    Proline Promass Q 300 Material The housing material of the display and operating module DKX001 depends on the choice of transmitter housing material. Transmitter housing Remote display and operating module Order code for "Housing" Material Material Option A "Aluminum, coated"...
  • Page 71 Proline Promass Q 300 A0028746  33 Options for remote operation via HART protocol (passive) Control system (e.g. PLC) Transmitter power supply unit, e.g. RN221N (with communication resistor) Connection for Commubox FXA195 and Field Communicator 475 Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g.
  • Page 72 Proline Promass Q 300 Via PROFIBUS PA network This communication interface is available in device versions with PROFIBUS PA. A0028838  35 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network...

  • Page 73: Service Interface

    Proline Promass Q 300 Service interface Via service interface (CDI-RJ45) A0027563  37 Connection via service interface (CDI-RJ45) Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"...

  • Page 74: Supported Operating Tools

    Proline Promass Q 300 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.

  • Page 75: Historom Data Management

    Proline Promass Q 300 HistoROM data management The measuring device features HistoROM data management. HistoROM data management comprises both the storage and import/export of key device and process data, making operation and servicing far more reliable, secure and efficient. When the device is delivered, the factory settings of the configuration data are stored as a backup in the device memory.

  • Page 76: Certificates And Approvals

    Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 77: Sanitary Compatibility

    Proline Promass Q 300 Ex ec Category Type of protection II3G Ex ec IIC T5…T1 Gc Ex tb Category Type of protection II2D Ex tb IIIC T** °C Db Currently, the following versions for use in hazardous areas are available: IS (Ex i) and XP (Ex d) •...

  • Page 78: Foundation Fieldbus Certification

    Proline Promass Q 300 FOUNDATION Fieldbus FOUNDATION Fieldbus interface certification The measuring device is certified and registered by the FieldComm Group. The measuring system meets all the requirements of the following specifications: • Certified in accordance with FOUNDATION Fieldbus H1 •...

  • Page 79: Other Standards And Guidelines

    Proline Promass Q 300 Option Test standard Component ISO 23277 AL2x (PT) ASME ASME NORSOK Measuring tube Process connection ISO 10675-1 AL1 (RT, DR) B31.3 VIII Div.1 M-601 Appx. 4+8 VT, PT VT, DR PT = penetrant testing, RT = radiographic testing, VT = visual testing, DR = digital radiography...

  • Page 80: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 81: Concentration

    Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 82: Communication-Specific Accessories

    Heating jacket Is used to stabilize the temperature of the fluids in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as fluids. If using oil as a heating medium, please consult with Endress+Hauser. Communication-specific Accessories...

  • Page 83: System Components

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...

  • Page 84: Supplementary Device-Dependent Documentation

    Proline Promass Q 300 Operating Instructions Measuring device Documentation HART FOUNDATION PROFIBUS PA Modbus RS485 Fieldbus Promass Q 300 BA01490D BA01523D BA01512D BA01501D Description of device parameters Documentation code FOUNDATION Measuring device HART Fieldbus PROFIBUS PA Modbus RS485 Promass 300...

  • Page 85: Registered Trademarks

    Proline Promass Q 300 Contents Documentation HART FOUNDATION PROFIBUS PA Modbus RS485 Fieldbus Web server SD01662D SD01665D SD01664D SD01663D Heartbeat SD01642D SD01696D SD01698D SD01697D Technology Concentration SD01644D SD01706D SD01708D SD01707D measurement Custody transfer SD01688D – – SD01689D Installation Instructions Contents...
