EN 8 4. Q523.1U LA

4. Mechanical Instructions

Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal
4.4 Set Re-assembly
4.1 Cable Dressing
Mechanical Instructions

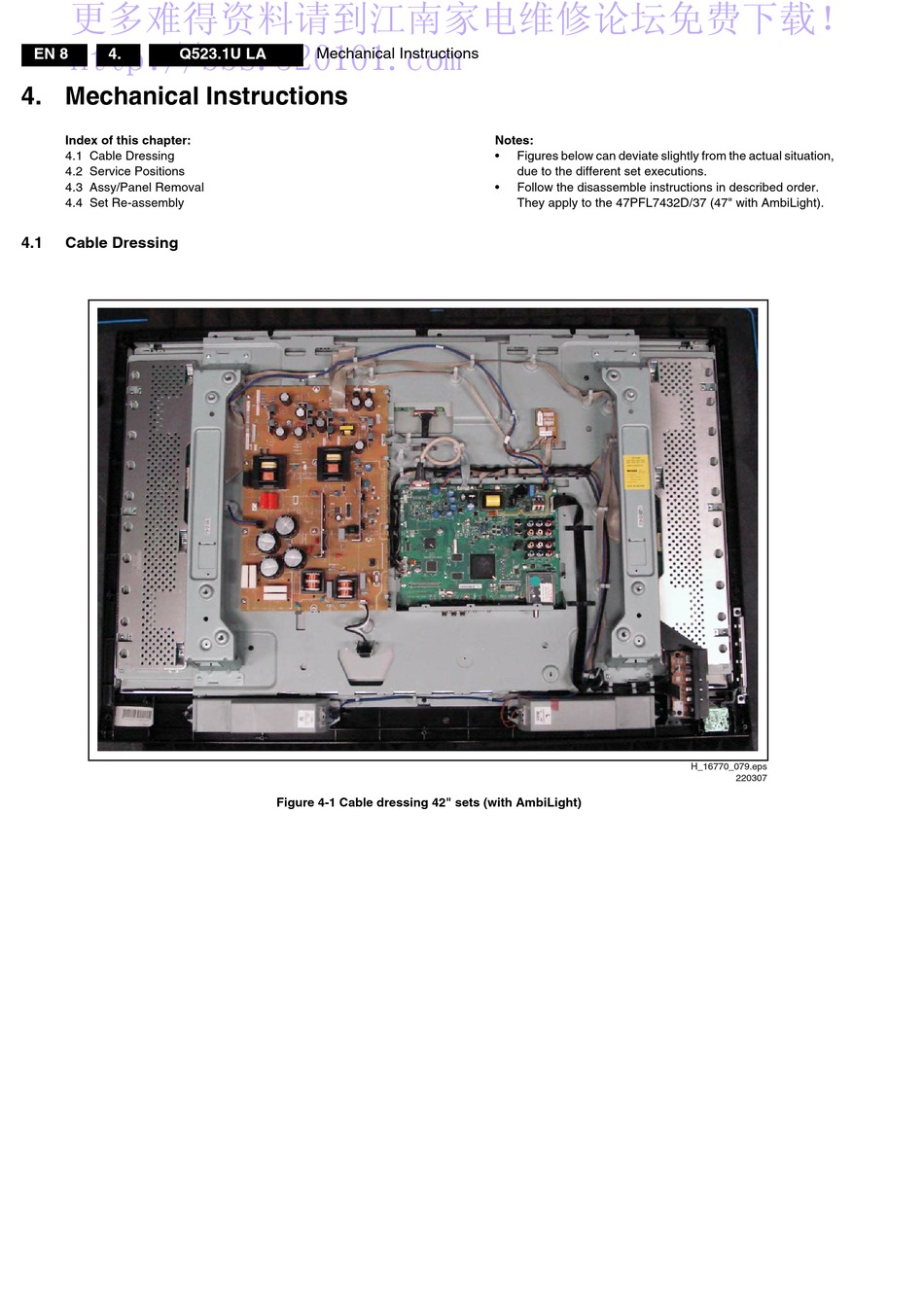

Figure 4-1 Cable dressing 42" sets (with AmbiLight)
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
They apply to the 47PFL7432D/37 (47" with AmbiLight).
H_16770_079.eps
220307
