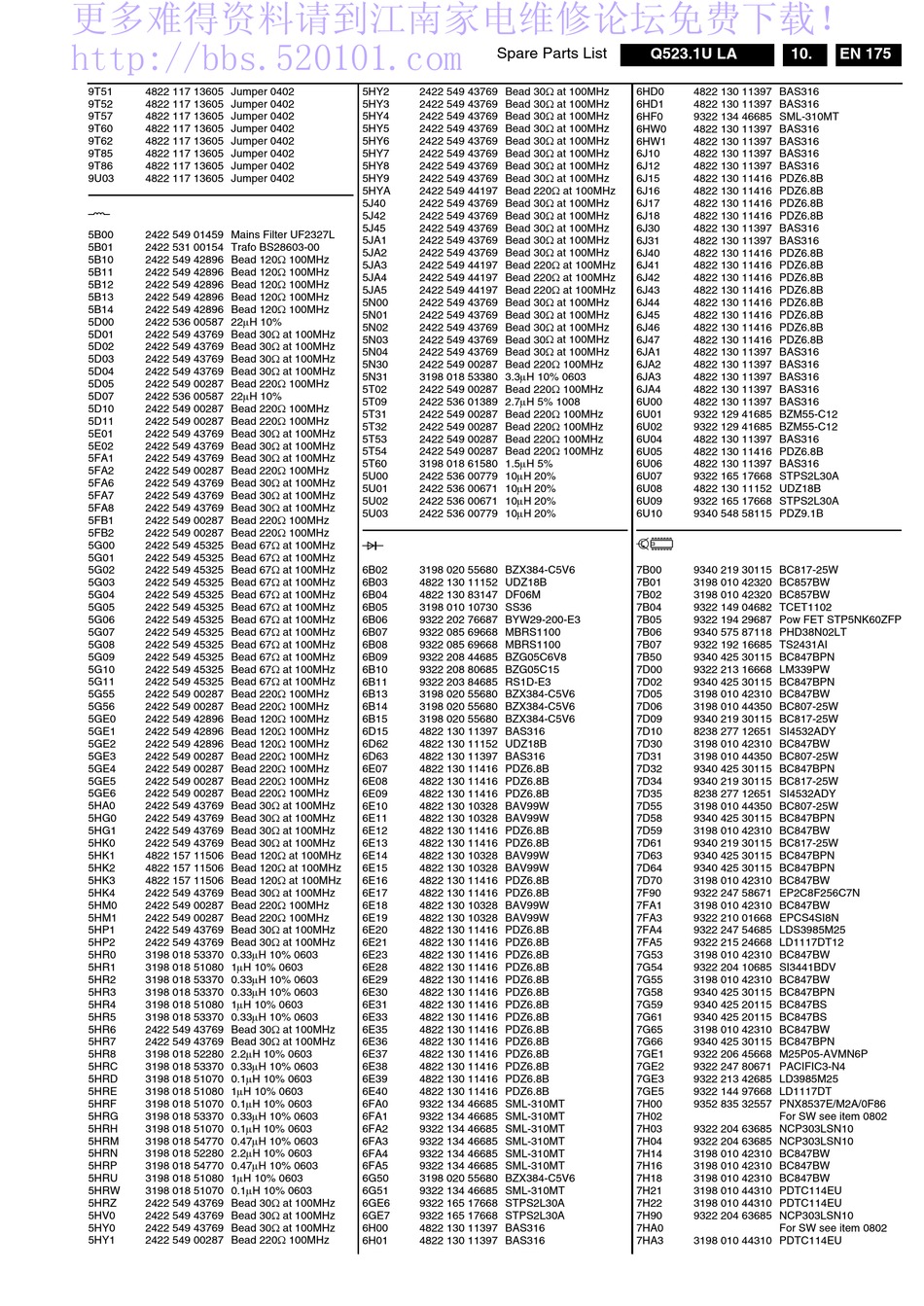

Philips 32PF9968/10 Service Manual page 175

更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
9T51 4822 117 13605 Jumper 0402
9T52 4822 117 13605 Jumper 0402
9T57 4822 117 13605 Jumper 0402
9T60 4822 117 13605 Jumper 0402
9T62 4822 117 13605 Jumper 0402
9T85 4822 117 13605 Jumper 0402
9T86 4822 117 13605 Jumper 0402
9U03 4822 117 13605 Jumper 0402
b
5B00 2422 549 01459 Mains Filter UF2327L
5B01 2422 531 00154 Trafo BS28603-00
5B10 2422 549 42896 Bead 120Ω 100MHz
5B11 2422 549 42896 Bead 120Ω 100MHz
5B12 2422 549 42896 Bead 120Ω 100MHz
5B13 2422 549 42896 Bead 120Ω 100MHz
5B14 2422 549 42896 Bead 120Ω 100MHz
5D00 2422 536 00587 22μH 10%
5D01 2422 549 43769 Bead 30Ω at 100MHz
5D02 2422 549 43769 Bead 30Ω at 100MHz
5D03 2422 549 43769 Bead 30Ω at 100MHz
5D04 2422 549 43769 Bead 30Ω at 100MHz
5D05 2422 549 00287 Bead 220Ω 100MHz
5D07 2422 536 00587 22μH 10%
5D10 2422 549 00287 Bead 220Ω 100MHz
5D11 2422 549 00287 Bead 220Ω 100MHz
5E01 2422 549 43769 Bead 30Ω at 100MHz
5E02 2422 549 43769 Bead 30Ω at 100MHz
5FA1 2422 549 43769 Bead 30Ω at 100MHz
5FA2 2422 549 00287 Bead 220Ω 100MHz
5FA6 2422 549 43769 Bead 30Ω at 100MHz
5FA7 2422 549 43769 Bead 30Ω at 100MHz
5FA8 2422 549 43769 Bead 30Ω at 100MHz
5FB1 2422 549 00287 Bead 220Ω 100MHz
5FB2 2422 549 00287 Bead 220Ω 100MHz
5G00 2422 549 45325 Bead 67Ω at 100MHz
5G01 2422 549 45325 Bead 67Ω at 100MHz
5G02 2422 549 45325 Bead 67Ω at 100MHz
5G03 2422 549 45325 Bead 67Ω at 100MHz
5G04 2422 549 45325 Bead 67Ω at 100MHz
5G05 2422 549 45325 Bead 67Ω at 100MHz
5G06 2422 549 45325 Bead 67Ω at 100MHz
5G07 2422 549 45325 Bead 67Ω at 100MHz
5G08 2422 549 45325 Bead 67Ω at 100MHz
5G09 2422 549 45325 Bead 67Ω at 100MHz
5G10 2422 549 45325 Bead 67Ω at 100MHz
5G11 2422 549 45325 Bead 67Ω at 100MHz
5G55 2422 549 00287 Bead 220Ω 100MHz
5G56 2422 549 00287 Bead 220Ω 100MHz
5GE0 2422 549 42896 Bead 120Ω 100MHz
5GE1 2422 549 42896 Bead 120Ω 100MHz
5GE2 2422 549 42896 Bead 120Ω 100MHz
5GE3 2422 549 00287 Bead 220Ω 100MHz
5GE4 2422 549 00287 Bead 220Ω 100MHz
5GE5 2422 549 00287 Bead 220Ω 100MHz
5GE6 2422 549 00287 Bead 220Ω 100MHz
5HA0 2422 549 43769 Bead 30Ω at 100MHz
5HG0 2422 549 43769 Bead 30Ω at 100MHz
5HG1 2422 549 43769 Bead 30Ω at 100MHz
5HK0 2422 549 43769 Bead 30Ω at 100MHz
5HK1 4822 157 11506 Bead 120Ω at 100MHz
5HK2 4822 157 11506 Bead 120Ω at 100MHz
5HK3 4822 157 11506 Bead 120Ω at 100MHz
5HK4 2422 549 43769 Bead 30Ω at 100MHz
5HM0 2422 549 00287 Bead 220Ω 100MHz
5HM1 2422 549 00287 Bead 220Ω 100MHz
5HP1 2422 549 43769 Bead 30Ω at 100MHz
5HP2 2422 549 43769 Bead 30Ω at 100MHz
5HR0 3198 018 53370 0.33μH 10% 0603
5HR1 3198 018 51080 1μH 10% 0603
5HR2 3198 018 53370 0.33μH 10% 0603
5HR3 3198 018 53370 0.33μH 10% 0603
5HR4 3198 018 51080 1μH 10% 0603
5HR5 3198 018 53370 0.33μH 10% 0603
5HR6 2422 549 43769 Bead 30Ω at 100MHz
5HR7 2422 549 43769 Bead 30Ω at 100MHz
5HR8 3198 018 52280 2.2μH 10% 0603
5HRC 3198 018 53370 0.33μH 10% 0603
5HRD 3198 018 51070 0.1μH 10% 0603
5HRE 3198 018 51080 1μH 10% 0603
5HRF 3198 018 51070 0.1μH 10% 0603
5HRG 3198 018 53370 0.33μH 10% 0603
5HRH 3198 018 51070 0.1μH 10% 0603
5HRM 3198 018 54770 0.47μH 10% 0603
5HRN 3198 018 52280 2.2μH 10% 0603
5HRP 3198 018 54770 0.47μH 10% 0603
5HRU 3198 018 51080 1μH 10% 0603
5HRW 3198 018 51070 0.1μH 10% 0603
5HRZ 2422 549 43769 Bead 30Ω at 100MHz
5HV0 2422 549 43769 Bead 30Ω at 100MHz
5HY0 2422 549 43769 Bead 30Ω at 100MHz
5HY1 2422 549 00287 Bead 220Ω 100MHz
Spare Parts List
5HY2 2422 549 43769 Bead 30Ω at 100MHz
5HY3 2422 549 43769 Bead 30Ω at 100MHz
5HY4 2422 549 43769 Bead 30Ω at 100MHz
5HY5 2422 549 43769 Bead 30Ω at 100MHz
5HY6 2422 549 43769 Bead 30Ω at 100MHz
5HY7 2422 549 43769 Bead 30Ω at 100MHz
5HY8 2422 549 43769 Bead 30Ω at 100MHz
5HY9 2422 549 43769 Bead 30Ω at 100MHz
5HYA 2422 549 44197 Bead 220Ω at 100MHz
5J40 2422 549 43769 Bead 30Ω at 100MHz
5J42 2422 549 43769 Bead 30Ω at 100MHz
5J45 2422 549 43769 Bead 30Ω at 100MHz
5JA1 2422 549 43769 Bead 30Ω at 100MHz
5JA2 2422 549 43769 Bead 30Ω at 100MHz
5JA3 2422 549 44197 Bead 220Ω at 100MHz
5JA4 2422 549 44197 Bead 220Ω at 100MHz
5JA5 2422 549 44197 Bead 220Ω at 100MHz
5N00 2422 549 43769 Bead 30Ω at 100MHz
5N01 2422 549 43769 Bead 30Ω at 100MHz
5N02 2422 549 43769 Bead 30Ω at 100MHz
5N03 2422 549 43769 Bead 30Ω at 100MHz
5N04 2422 549 43769 Bead 30Ω at 100MHz
5N30 2422 549 00287 Bead 220Ω 100MHz
5N31 3198 018 53380 3.3μH 10% 0603
5T02 2422 549 00287 Bead 220Ω 100MHz
5T09 2422 536 01389 2.7μH 5% 1008
5T31 2422 549 00287 Bead 220Ω 100MHz
5T32 2422 549 00287 Bead 220Ω 100MHz
5T53 2422 549 00287 Bead 220Ω 100MHz
5T54 2422 549 00287 Bead 220Ω 100MHz
5T60 3198 018 61580 1.5μH 5%
5U00 2422 536 00779 10μH 20%
5U01 2422 536 00671 10μH 20%
5U02 2422 536 00671 10μH 20%
5U03 2422 536 00779 10μH 20%
d
6B02 3198 020 55680 BZX384-C5V6
6B03 4822 130 11152 UDZ18B
6B04 4822 130 83147 DF06M
6B05 3198 010 10730 SS36
6B06 9322 202 76687 BYW29-200-E3
6B07 9322 085 69668 MBRS1100
6B08 9322 085 69668 MBRS1100
6B09 9322 208 44685 BZG05C6V8
6B10 9322 208 80685 BZG05C15
6B11 9322 203 84685 RS1D-E3
6B13 3198 020 55680 BZX384-C5V6
6B14 3198 020 55680 BZX384-C5V6
6B15 3198 020 55680 BZX384-C5V6
6D15 4822 130 11397 BAS316
6D62 4822 130 11152 UDZ18B
6D63 4822 130 11397 BAS316
6E07 4822 130 11416 PDZ6.8B
6E08 4822 130 11416 PDZ6.8B
6E09 4822 130 11416 PDZ6.8B
6E10 4822 130 10328 BAV99W
6E11 4822 130 10328 BAV99W
6E12 4822 130 11416 PDZ6.8B
6E13 4822 130 11416 PDZ6.8B
6E14 4822 130 10328 BAV99W
6E15 4822 130 10328 BAV99W
6E16 4822 130 11416 PDZ6.8B
6E17 4822 130 11416 PDZ6.8B
6E18 4822 130 10328 BAV99W
6E19 4822 130 10328 BAV99W
6E20 4822 130 11416 PDZ6.8B
6E21 4822 130 11416 PDZ6.8B
6E23 4822 130 11416 PDZ6.8B
6E28 4822 130 11416 PDZ6.8B
6E29 4822 130 11416 PDZ6.8B
6E30 4822 130 11416 PDZ6.8B
6E31 4822 130 11416 PDZ6.8B
6E33 4822 130 11416 PDZ6.8B
6E35 4822 130 11416 PDZ6.8B
6E36 4822 130 11416 PDZ6.8B
6E37 4822 130 11416 PDZ6.8B
6E38 4822 130 11416 PDZ6.8B
6E39 4822 130 11416 PDZ6.8B
6E40 4822 130 11416 PDZ6.8B
6FA0 9322 134 46685 SML-310MT
6FA1 9322 134 46685 SML-310MT
6FA2 9322 134 46685 SML-310MT
6FA3 9322 134 46685 SML-310MT
6FA4 9322 134 46685 SML-310MT
6FA5 9322 134 46685 SML-310MT
6G50 3198 020 55680 BZX384-C5V6
6G51 9322 134 46685 SML-310MT
6GE6 9322 165 17668 STPS2L30A
6GE7 9322 165 17668 STPS2L30A
6H00 4822 130 11397 BAS316
6H01 4822 130 11397 BAS316
Q523.1U LA 10.
6HD0 4822 130 11397 BAS316
6HD1 4822 130 11397 BAS316
6HF0 9322 134 46685 SML-310MT
6HW0 4822 130 11397 BAS316
6HW1 4822 130 11397 BAS316
6J10 4822 130 11397 BAS316
6J12 4822 130 11397 BAS316
6J15 4822 130 11416 PDZ6.8B
6J16 4822 130 11416 PDZ6.8B
6J17 4822 130 11416 PDZ6.8B
6J18 4822 130 11416 PDZ6.8B
6J30 4822 130 11397 BAS316
6J31 4822 130 11397 BAS316
6J40 4822 130 11416 PDZ6.8B
6J41 4822 130 11416 PDZ6.8B
6J42 4822 130 11416 PDZ6.8B
6J43 4822 130 11416 PDZ6.8B
6J44 4822 130 11416 PDZ6.8B
6J45 4822 130 11416 PDZ6.8B
6J46 4822 130 11416 PDZ6.8B
6J47 4822 130 11416 PDZ6.8B
6JA1 4822 130 11397 BAS316
6JA2 4822 130 11397 BAS316
6JA3 4822 130 11397 BAS316
6JA4 4822 130 11397 BAS316
6U00 4822 130 11397 BAS316
6U01 9322 129 41685 BZM55-C12
6U02 9322 129 41685 BZM55-C12
6U04 4822 130 11397 BAS316
6U05 4822 130 11416 PDZ6.8B
6U06 4822 130 11397 BAS316
6U07 9322 165 17668 STPS2L30A
6U08 4822 130 11152 UDZ18B
6U09 9322 165 17668 STPS2L30A
6U10 9340 548 58115 PDZ9.1B
ce
7B00 9340 219 30115 BC817-25W
7B01 3198 010 42320 BC857BW
7B02 3198 010 42320 BC857BW
7B04 9322 149 04682 TCET1102
7B05 9322 194 29687 Pow FET STP5NK60ZFP
7B06 9340 575 87118 PHD38N02LT
7B07 9322 192 16685 TS2431AI
7B50 9340 425 30115 BC847BPN
7D00 9322 213 16668 LM339PW
7D02 9340 425 30115 BC847BPN
7D05 3198 010 42310 BC847BW
7D06 3198 010 44350 BC807-25W
7D09 9340 219 30115 BC817-25W
7D10 8238 277 12651 SI4532ADY
7D30 3198 010 42310 BC847BW
7D31 3198 010 44350 BC807-25W
7D32 9340 425 30115 BC847BPN
7D34 9340 219 30115 BC817-25W
7D35 8238 277 12651 SI4532ADY
7D55 3198 010 44350 BC807-25W
7D58 9340 425 30115 BC847BPN
7D59 3198 010 42310 BC847BW
7D61 9340 219 30115 BC817-25W
7D63 9340 425 30115 BC847BPN
7D64 9340 425 30115 BC847BPN
7D70 3198 010 42310 BC847BW
7F90 9322 247 58671 EP2C8F256C7N
7FA1 3198 010 42310 BC847BW
7FA3 9322 210 01668 EPCS4SI8N
7FA4 9322 247 54685 LDS3985M25
7FA5 9322 215 24668 LD1117DT12
7G53 3198 010 42310 BC847BW
7G54 9322 204 10685 SI3441BDV
7G55 3198 010 42310 BC847BW
7G58 9340 425 30115 BC847BPN
7G59 9340 425 20115 BC847BS
7G61 9340 425 20115 BC847BS
7G65 3198 010 42310 BC847BW
7G66 9340 425 30115 BC847BPN
7GE1 9322 206 45668 M25P05-AVMN6P
7GE2 9322 247 80671 PACIFIC3-N4
7GE3 9322 213 42685 LD3985M25
7GE5 9322 144 97668 LD1117DT
7H00 9352 835 32557 PNX8537E/M2A/0F86
7H02 For SW see item 0802
7H03 9322 204 63685 NCP303LSN10
7H04 9322 204 63685 NCP303LSN10
7H14 3198 010 42310 BC847BW
7H16 3198 010 42310 BC847BW
7H18 3198 010 42310 BC847BW
7H21 3198 010 44310 PDTC114EU
7H22 3198 010 44310 PDTC114EU
7H90 9322 204 63685 NCP303LSN10
7HA0 For SW see item 0802
7HA3 3198 010 44310 PDTC114EU
EN 175
