Philips 32PF9968/10 Service Manual page 11

更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
2
2
2
2
2
2

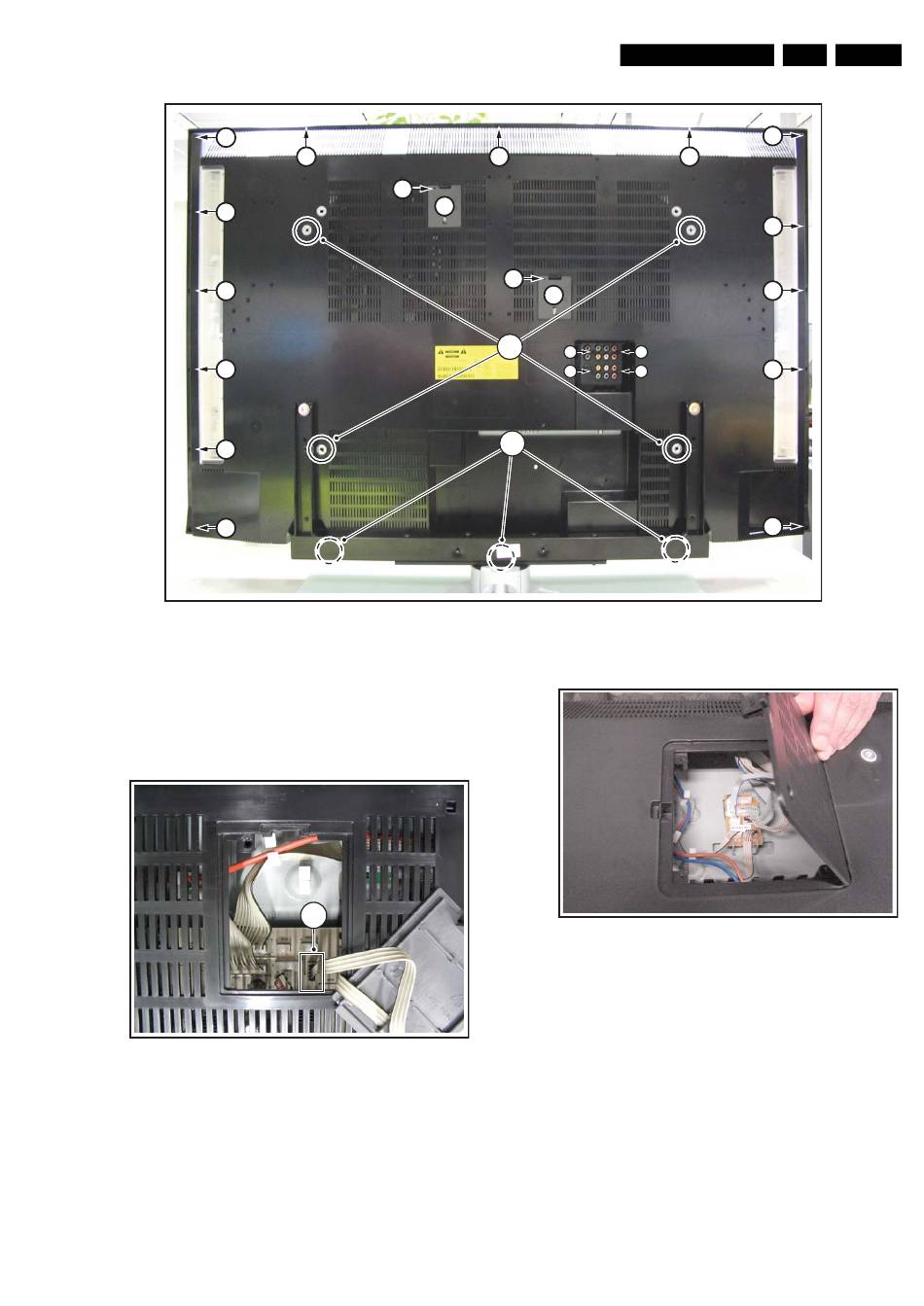

1. Remove the stand.
2. Remove the mushrooms [1].
3. Remove the screws [2].
4. Open the covers [3] on the back cover.
Refer to figures "Cover Removal" for details.
Figure 4-7 Cover Removal
1. Unplug connector [4].
Note:
42" Sets with AmbiLight have an extra cover. Refer to figure
"Cover Removal - 42" sets with AmbiLight" for details.
Mechanical Instructions
2
2
3
Figure 4-6 Rear Cover Removal
4
H_16770_082.eps
130707
Q523.1U LA
2
2
3
1
2 2
2 2
2
Figure 4-8 Cover Removal - 42" sets with AmbiLight
1. Unplug connectors necessary for removing the backcover.
4.3.2 Side I/O Board
Refer to figure "Side I/O Board" for details.
1. Unplug connectors [1].
2. Remove screw [2].
3. Push brackets [3], lift the PWB and slide it to the left out of
its casing.
When defective, replace the whole unit.
4. EN 11
2
2
2
2
2
2
H_16770_081.eps
130707
H_16770_084.eps
220307
