EN 4 1. Q523.1U LA
AV2: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
Wh - Audio L 0.5 V
Ye - Video CVBS 1 V
AV1: S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd
2 - Ground C Gnd
3 - Video Y 1 V
4 - Video C 0.3 V
AV1: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
A
DISPLAY SUPPLY PANEL
SMALL SIGNAL
B
BOARD
DISPLAY SUPPLY
PANEL
SMALL SIGNAL
B
BOARD

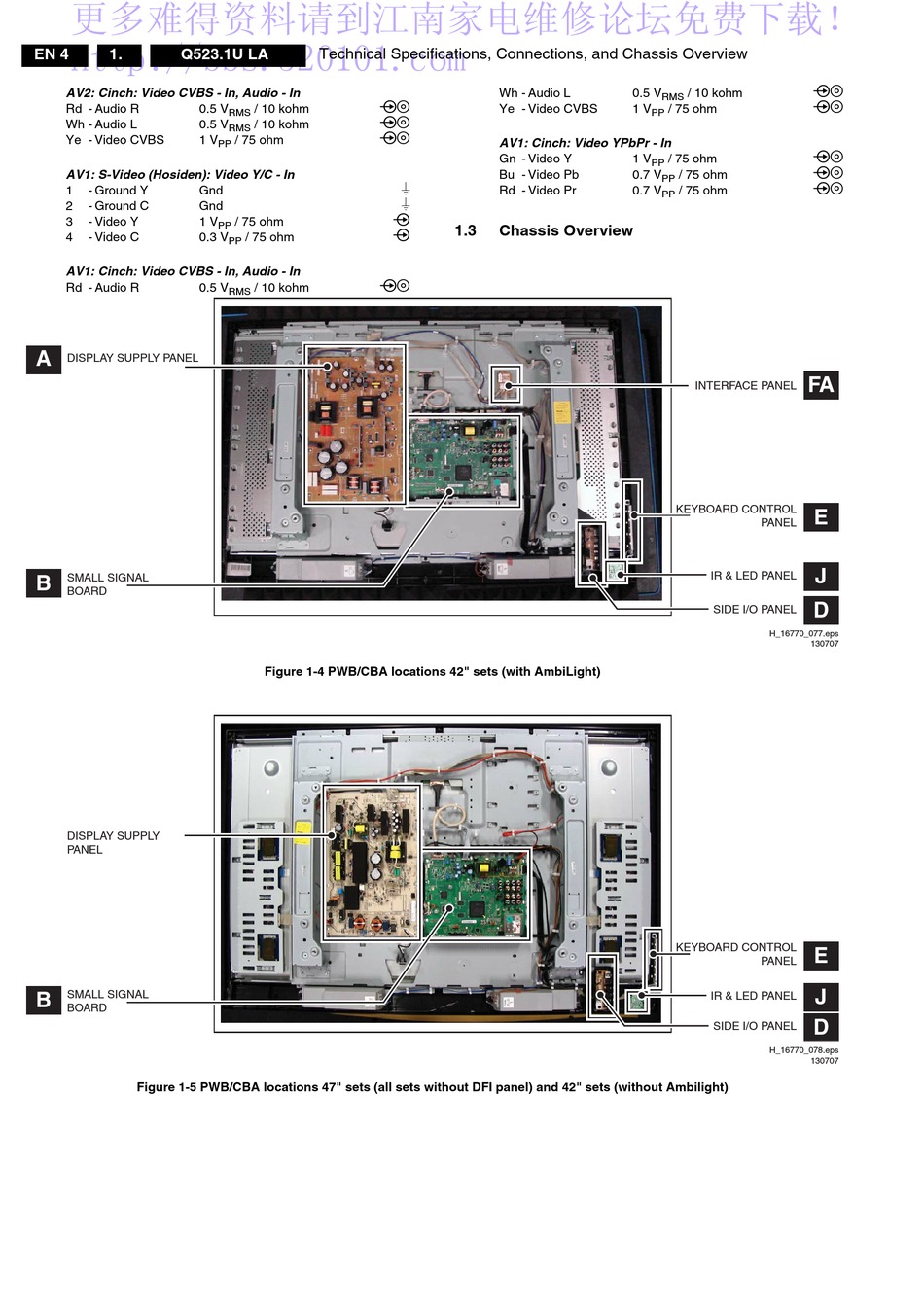

Figure 1-5 PWB/CBA locations 47" sets (all sets without DFI panel) and 42" sets (without Ambilight)
Technical Specifications, Connections, and Chassis Overview
jq
/ 10 kohm
RMS
jq
/ 10 kohm
RMS
jq
/ 75 ohm
PP
j
/ 75 ohm
PP
j
/ 75 ohm
PP
jq
/ 10 kohm
RMS
Figure 1-4 PWB/CBA locations 42" sets (with AmbiLight)
Wh - Audio L
Ye - Video CVBS
AV1: Cinch: Video YPbPr - In
Gn - Video Y
Bu - Video Pb
H
Rd - Video Pr
H
1.3 Chassis Overview
0.5 V / 10 kohm
RMS
1 V / 75 ohm
PP
1 V / 75 ohm
PP
0.7 V / 75 ohm
PP
0.7 V / 75 ohm
PP
FA
INTERFACE PANEL
KEYBOARD CONTROL
PANEL
IR & LED PANEL
SIDE I/O PANEL
H_16770_077.eps
KEYBOARD CONTROL
PANEL
IR & LED PANEL
SIDE I/O PANEL
H_16770_078.eps
