Load Feeder Configuring SIRIUS Innovations Selection data for Fuseless and Fused Load Feeders Configuration Manual 04/2010 • Industrial Controls Answers for industry.
Page 3
Introduction General information Selection tables 400 V AC Industrial switchgear Selection tables 500 V AC Load feeders Fused selection tables up to Configuring SIRIUS Innovations 690 V Installation guidelines Configuration Manual Service and support 04/2010 A8E56203880102-02...
Page 4
Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

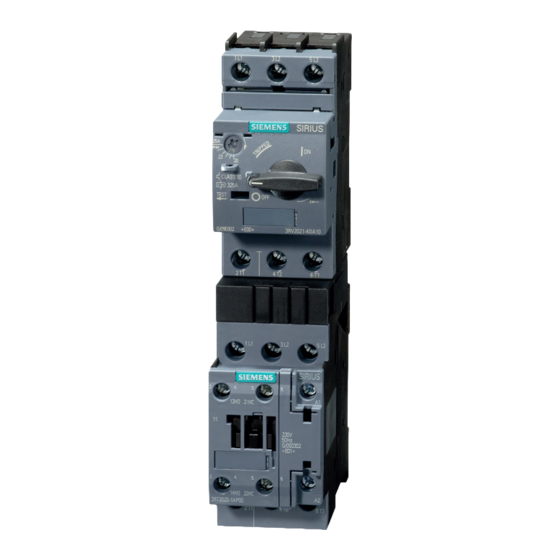

The innovations in the SIRIUS modular system family represent a totally new switchgear generation up to 18.5 kW. They are based on the existing SIRIUS modular system family, which has been systematically optimized and extended with many new functions. The...
Page 8
Introduction Size Function Components Compact starters Control circuit Function modules for mounting on contactors Function modules for connection to the automation level Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 9
Quick and secure connection, vibration-proof, and • connection maintenance-free technology: Environment: Environment friendly production and materials, recycling • capability, low power loss Design: Clear-cut, ergonomic design (winner of the iF Product • Design Award) Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
This means, for instance, the combinations for 400 V can also be used for 415 V networks that have a line supply tolerance of +5%. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 12
This is why combinations acc. to CLASS 5 and CLASS 10 are generally more cost-effective. CLASS 20, CLASS 30 and CLASS 40 are only generally used if genuinely necessitated by the application. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 13
Combinations of coordination type 1 are generally the more favorably priced solution. Combinations of coordination type 2 automatically fulfill the requirements of coordination type 1. Tests All of the specified combinations are tested in compliance with IEC 60947-4-1. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 14
Alternatively, this function can also be implemented with the "3RV21 motor starter protector with overload relay function". These devices can be used in the motor starter protector + contactor tables instead of the 3RV20 motor starter protector. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 15
The control current wiring and switching from Y to Δ are implemented with plug-on function modules for the SIRIUS innovations. The switching time can be set between 1 and 100 s. The function modules thus perform the function of the timing relay.
Page 16
710 kW at 400 V in standard circuit up to 1200 kW at 400 V (1700 hp at 460 V) in the inside-delta circuit Further information can be found in the Internet at: http://www.siemens.de/sanftstarter (http://www.siemens.de/sanftstarter). For optimum configurations, we recommend using the selection and simulation program "Win-Soft Starter".
Page 17
– Bistable, spring-loaded: 3RB2383-4AC1 ● Connection cable – 0.1 m (S00-S3): 3RB2987-2B – 0.5 m (S00-S12): 3RB2987-2D ● For other accessories for 3RB22 / 23 overload relays see Catalog LV 1 Chapter 5. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 18
– 0.5 m, flat: 3UF7932-0AA00-0 – 0.5 m, round: 3UF7932-0BA00-0 – 1.0 m, round: 3UF7937-0BA00-0 – 2.5 m, round: 3UF7933-0BA00-0 ● For other accessories and software for SIMOCODE pro see Catalog LV 1 Chapter 7. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 19
Motor starter protector – contactor in size S0 DC 3RA2921-1B Motor starter protector – soft starter in size S00 Motor starter protector – soft starter in size S0 Motor starter protector – solid-state contactor Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 20
3RA2911-2A loaded connection system Motor starter protector – contactor in size S0 3RA2921-2A Motor starter protector – soft starter in size S00 3RA2911-2G Motor starter protector – soft starter in size S0 3RA2921-2G Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 21
Motor starter protector – contactor in size S00 3RA2911-2F connection system Motor starter protector – contactor in size S0 3RA2921-2F The motor starter protector has a screw connection and the contactor has a spring-loaded connection. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 22
General information Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 24
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 26
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 28
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 30
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Can also be used in size S00 (3RU2116). Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 33
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The motor starter protector is to be set to maximum current value. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 35
Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The necessary current measuring modules are specified. The corresponding basic units 3RB22 / 3RB23 and 3UF7 are additionally required. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 39
Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The motor starter protector is to be set to maximum current value. The necessary current measuring modules are specified. The corresponding basic units 3RB22 / 3RB23 and 3UF7 are additionally required. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 41
The rated currents must be reduced if the solid-state contactor is butt mounted. Detailed characteristic curves can be found in Chapter 3 of the SIRIUS Innovations System Manual. See also Industrial Controls System Manual - SIRIUS Innovations (http://support.automation.siemens.com/WW/view/en/39740306)
Page 43
3) The rated currents must be reduced if the solid-state contactor is butt mounted. Detailed characteristic curves can be found in Chapter 3 of the SIRIUS Innovations System Manual. See also Industrial Controls System Manual - SIRIUS Innovations (http://support.automation.siemens.com/WW/view/en/39740306)
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz. Other control voltages are also possible. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 46
Rated control supply voltage 230 V AC, 50 Hz. Other control voltages are also possible. The necessary current measuring modules are specified. The corresponding basic unit 3RB22 / 3RB23 or 3UF7 is additionally required. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz. Other control voltages are also possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz. Other control voltages are also possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz. Other control voltages are also possible. Screw terminals or spring-loaded terminals can be selected. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 50
Selection tables 400 V AC 3.11 Motor starter protector + 3RW44 soft starter Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 52
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 54
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 56
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 58
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Can also be used in size S00 (3RU2116). Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 60
Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. 3RA2921-1BA00 link module can only be used with screw terminals. The motor starter protector is to be set to maximum current value. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 62
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The motor starter protector is to be set to maximum current value. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 65
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The motor starter protector is to be set to maximum current value. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Guide value for 4-pole standard motors at 500 V AC, 50 Hz. Selection depends on the concrete startup and rated data of the protected motor. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 68
Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. The necessary current measuring modules are specified. The corresponding basic unit 3RB22 / 3RB23 or 3UF7 is additionally required. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible. Discrete mounting only, without a link module. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Type of coordination 2 Size S00 3RT2015-1.. 3RT2016-1.. 3RT2017-1.. 3RT2018-1.. Size S0 3RT2024-1.. 3RT2025-1.. 3RT2026-1.. 3RT2027-1.. 3RT2028-1.. 18,5 Please take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 76
— 3RT2018 — — Take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 NH type 3NA, DIAZED type 5SB, NEOZED type 5SE RK1, RK5, J, CC Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 77
3RT2028 18,5 — — Take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 NH type 3NA, DIAZED type 5SB, NEOZED type 5SE RK1, RK5, J, CC Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 81
18,5 Take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 NH type 3NA, DIAZED type 5SB, NEOZED type 5SE, operating class gG RK1, RK5, J, CC Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
18,5 Take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 NH type 3NA, DIAZED type 5SB, NEOZED type 5SE, operating class gG RK1, RK5, J, CC Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
3RU2126-4PB0 30 ... 36 3RT2028-1.. 18,5 3RW3028 18,5 3RU2126-4FB0 34 ... 40 3RT2028-1.. 18,5 3RW3028 18,5 Please take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 NH type 3NA, DIAZED type 5SB, NEOZED type 5SE, operating class gG Class K5, RK5, RK1, J Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
23,0 21,0 3RT2027 15,0 3RW3027 15,0 32,0 29,0 26,0 3RT2028 18,5 3RW3028 18,5 38,0 34,0 31,0 Please take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
6 ... 25 3RT2026-1AP01 3RT2024-1AP01 18,5 6 ... 25 3RT2026-1AP01 3RT2024-1AP01 6 ... 25 3RT2027-1AP01 3RT2026-1AP01 Please take account of the operating voltage Assignment and short-circuit protective devices acc. to DIN EN 60947-4-1 Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
When this fuse is used, the line overload protection in accordance with VDE 0100 must be ensured at another point e.g. by means of an overload relay. Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 90
Fused selection tables up to 690 V 5.11 Contactor assemblies for star-delta (wye-delta) start + 3UF7 solid-state overload relay and 3RT20 contactor Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
DIN rail adapter required 14 … 16 10 h 0 h, v ≤ 29 0 h, v DIN rail adapter required (already included with 3RA22) 29 … 32 10 h 0 h, v Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 92
DIN rail adapter required 14 … 16 10 h 0 h, v ≤ 29 0 h, v DIN rail adapter required (already included with 3RA22) 29 … 32 10 h 0 h, v Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 93
Unlimited Not approved for railways, power plants, or shipbuilding. Vibration and shock tests are carried out in accordance with SN 31205 as well as with the relevant standards for railways, shipbuilding, and power plants. Please consult Technical Assistance (www.siemens.com/industrial-controls/technical-assistance). Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
Page 94
Note Installation instructions for S0 motor starter protectors from 36 A Minimum cable length between motor starter protector and contactor 150 mm Minimum clearance between motor starter protector and contactor 100 mm Configuring SIRIUS Innovations Configuration Manual, 04/2010, A8E56203880102-02...
