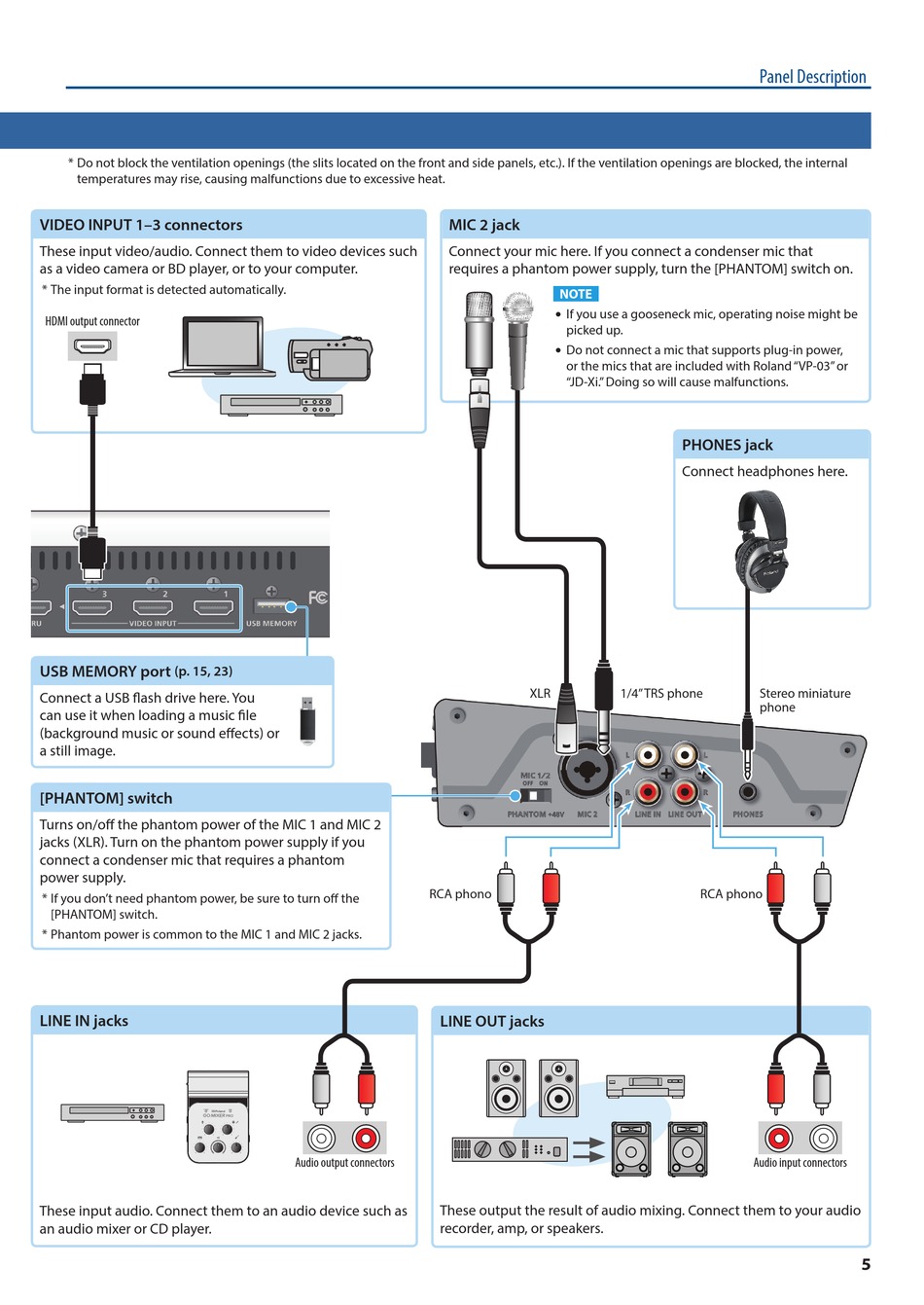

Roland VR-1HD Reference Manual page 5

* Do not block the ventilation openings (the slits located on the front and side panels, etc.). If the ventilation openings are blocked, the internal
temperatures may rise, causing malfunctions due to excessive heat.
VIDEO INPUT 1–3 connectors
These input video/audio. Connect them to video devices such
as a video camera or BD player, or to your computer.
* The input format is detected automatically.
HDMI output connector
USB MEMORY port
(p. 15, 23)
Connect a USB flash drive here. You
can use it when loading a music file
(background music or sound effects) or
a still image.
[PHANTOM] switch
Turns on/off the phantom power of the MIC 1 and MIC 2
jacks (XLR). Turn on the phantom power supply if you
connect a condenser mic that requires a phantom
power supply.
* If you don't need phantom power, be sure to turn off the
[PHANTOM] switch.
* Phantom power is common to the MIC 1 and MIC 2 jacks.
LINE IN jacks
These input audio. Connect them to an audio device such as
an audio mixer or CD player.
MIC 2 jack
Connect your mic here. If you connect a condenser mic that
requires a phantom power supply, turn the [PHANTOM] switch on.
RCA phono
LINE OUT jacks
Audio output connectors
These output the result of audio mixing. Connect them to your audio
recorder, amp, or speakers.
NOTE
5 If you use a gooseneck mic, operating noise might be
picked up.
5 Do not connect a mic that supports plug-in power,
or the mics that are included with Roland "VP-03" or
"JD-Xi. " Doing so will cause malfunctions.
PHONES jack
Connect headphones here.
XLR 1/4" TRS phone
RCA phono
Panel Description
Stereo miniature
phone
Audio input connectors
