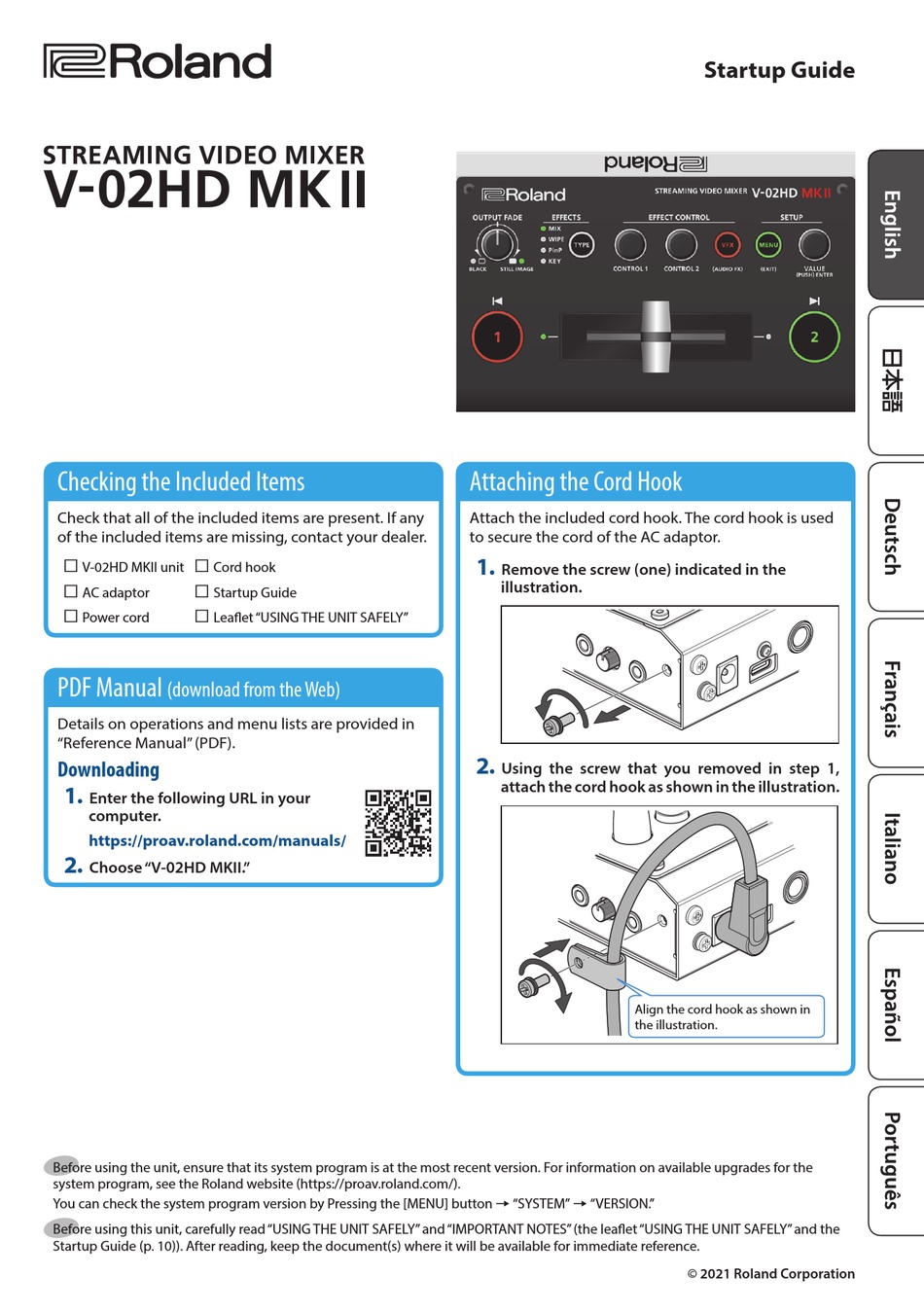

Checking the Included Items
Check that all of the included items are present. If any
of the included items are missing, contact your dealer.
* V-02HD MKII unit
* Cord hook
* AC adaptor
* Startup Guide
* Power cord
* Leaflet "USING THE UNIT SAFELY"
PDF Manual
(download from the Web)
Details on operations and menu lists are provided in
"Reference Manual" (PDF).
Downloading
1.
Enter the following URL in your
computer.
https://proav.roland.com/manuals/
2.
Choose "V-02HD MKII."
Before using the unit, ensure that its system program is at the most recent version. For information on available upgrades for the
system program, see the Roland website (https://proav.roland.com/).
You can check the system program version by Pressing the [MENU] button0"SYSTEM"0"VERSION. "
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING THE UNIT SAFELY" and the
Startup Guide (p. 10)). After reading, keep the document(s) where it will be available for immediate reference.
Attaching the Cord Hook
Attach the included cord hook. The cord hook is used
to secure the cord of the AC adaptor.
1.
Remove the screw (one) indicated in the
illustration.
2.
Using the screw that you removed in step 1,
attach the cord hook as shown in the illustration.
Align the cord hook as shown in
the illustration.
Startup Guide
© 2021 Roland Corporation

Advertisement

Table of Contents
loading

Related Manuals for Roland V-02HD MKII

Summary of Contents for Roland V-02HD MKII

  • Page 1 Before using the unit, ensure that its system program is at the most recent version. For information on available upgrades for the system program, see the Roland website (https://proav.roland.com/). You can check the system program version by Pressing the [MENU] button0“SYSTEM”0“VERSION. ”...

  • Page 2: Top Panel

    Operating Guide (Panel Descriptions) Top Panel Fading video and audio in or out Outputting a captured still image [OUTPUT FADE] knob Fade-in Turn counterclockwise from the center The indicators located at the left and right of the The program output video and audio fade [OUTPUT FADE] knob show the status.
  • Page 3 [MENU] button, [VALUE] knob Here’s how to access the menu, and make video/audio settings and settings for the V-02HD MKII itself. The menu is shown on the display that’s connected to the PREVIEW OUT connector. Press the [MENU] button to display the MENU screen.

  • Page 4: Rear Panel/Side Panel (Connecting Your Equipment)

    HDMI input connector. using your foot to control operations such as video switching. he V-02HD MKII menu is shown on the * Use only the specified expression pedal (sold separately: EV-5, BOSS display that’s connected to the PREVIEW FV-500L, or FV-500H).
  • Page 5 HDMI cable Turn off the V-02HD MKII’s [POWER] switch. About the Auto Off function The power to the V-02HD MKII turns off automatically when all of the following states persist for 240 minutes (Auto Off function). INPUT 1, 2 connectors...

  • Page 6: Video Operations

    Video Operations Using Mix/Wipe to Switch Video (MIX/WIPE) Here’s how to switch between input video while applying an effect, and output the program. Press the [TYPE] button several times to select <Using the fader to switch> the transition effect (MIX, WIPE). Slide the video fader to the far left or far right.
  • Page 7 Video Operations Using Picture-In-Picture to Composite Video (PinP) Here’s how to composite an inset screen (a small separate screen) onto the background video. Inset screen Background video Press the [TYPE] button several times to select Press the [2] button. PinP. The inset screen is composited with the background video, and output as the program.
  • Page 8 Video Operations Using a Key to Composite Video (KEY) You can turn a portion of the video transparent and composite it with the background video. You can use luminance key with either a black or a white background, or a chroma key with either a blue or green background.
  • Page 9 Video Operations Applying a Visual Effect to the Video (VFX) Here’s how you can apply an effect to the entire video, such as varying the video’s color or shape. You can apply a visual effect even while using picture-in-picture or key to composite the video. Selecting a visual effect Applying visual effects Press the [MENU] button 0 “VFX”...

  • Page 10: Using The Unit Safely

    (for example, your own original works) can be recorded or duplicated freely. • Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries. • Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
