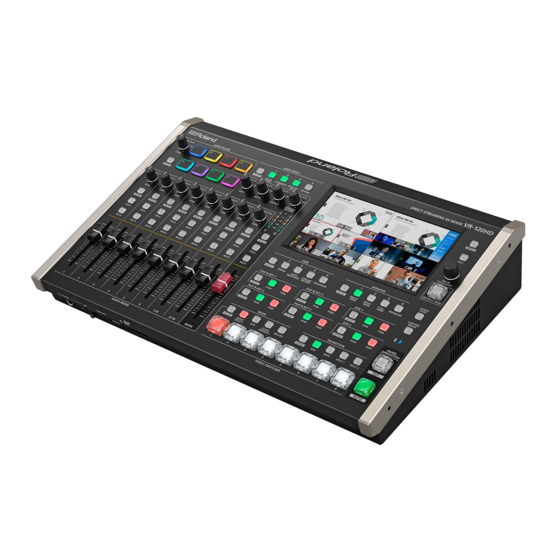

Roland VR-120HD Manual

Direct streaming av mixer
Hide thumbs Also See for VR-120HD:
Table of Contents

Advertisement

Quick Links

Download this manual
© 2023 Roland Corporation
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. MIDI Messages Received at MIDI IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Parameter Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Supplementary Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
MIDI Implementation Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
RS-232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Command Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
List of Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Remote Control Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2
2
3
02

Advertisement

Table of Contents
loading

Related Manuals for Roland VR-120HD

Summary of Contents for Roland VR-120HD

  • Page 1: Table Of Contents

    List of Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 © 2023 Roland Corporation...

  • Page 2: Midi Implementation

    (manufacturer ID). The manufac- Address lower byte turer ID of Roland is 41H. The ID numbers of 7EH and Data: actual data to transmit. Multiple byte data is sent in address 7FH are expansion of MIDI standards and used as order.

  • Page 3: Parameter Address Map

    MIDI Implementation 2. Parameter Address Map Start Address Description Start Address Description 00H 00H 00H Video Parameter Area 18H 00H 00H Video Parameter (Scene Memory 5) 19H 00H 00H Audio Parameter (Scene Memory 5) 01H 00H 00H Audio Parameter Area 02H 00H 00H System Parameter Area 1AH 00H 00H...
  • Page 4 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 00H 00H 22H Aux Layer DSK 1 00H–02H Off, PGM Sync, On 00H 00H 23H Aux Layer DSK 2 00H–02H Off, PGM Sync, On À Video Input (HDMI) * xxH: 01H–06H (HDMI In 1–6) Address Parameter Name Sys.Ex.Value...
  • Page 5 MIDI Implementation À VIDEO OUTPUT (SDI) * xxH: 11H–13H (SDI OUT 1–3) Address Parameter Name Sys.Ex.Value Meaning of Value 00H xxH 00H 3G-SDI Mapping 00H–01H Level-A, Level-B 00H xxH 01H Brightness 40H–00H–3FH -64–0–63 00H xxH 02H Contrast 40H–00H–3FH -64–0–63 00H xxH 03H Saturation 40H–00H–3FH -64–0–63...
  • Page 6 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 00H xxH 12H View Position H 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0% 00H xxH 14H View Position V 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0% 00H xxH 16H View Zoom 00H 64H–03H 10H 100–400% 00H xxH 18H Key Level 00H 00H–01H 7FH...
  • Page 7 MIDI Implementation ÁAudio Parameter Area À Audio Fader Assign Address Parameter Name Sys.Ex.Value Meaning of Value Audio In 1–6, Audio In 7/8, Audio In 9/10, Usb In, Bluetooth In, Audio Player, 01H 00H 00H Input Fader 1 00H–17H HDMI In 1–6, SDI In 1–6, Video Player Audio In 1–6, Audio In 7/8, Audio In 9/10, Usb In, Bluetooth In, Audio Player, 01H 00H 01H Input Fader 2 00H–17H...
  • Page 8 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H xxH 26H Equalizer Lo-Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0 01H xxH 27H Equalizer Hi-Mid Gain 04H–7CH -12.0–12.0dB 01H xxH 28H Equalizer Hi-Mid Frequency 02H–3EH 20Hz–20.0kHz 01H xxH 29H Equalizer Hi-Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0...
  • Page 9 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 21H 1DH Equalizer Hi-Mid Frequency 02H–3EH 20Hz–20.0kHz 01H 21H 1EH Equalizer Hi-Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0 01H 21H 1FH Equalizer Lo Gain 04H–7CH -12.0–12.0dB 01H 21H 20H Equalizer Lo Frequency 02H–2AH 20Hz–2.00kHz 01H 21H 21H GEQ Sw...
  • Page 10 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 1.00: 1, 1.12: 1, 1.25: 1, 1.40: 1, 1.60: 1, 1.80: 1, 2.00: 1, 2.50: 1, 3.20: 1, 4.00: 1, 01H 22H 0BH Compressor Ratio 00H–0DH 5.60: 1, 8.00: 1, 16.0: 1, INF: 1 01H 22H 0CH Compressor Attack 00H–73H 0.0–100msec...
  • Page 11 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 23H 09H 7EH 00H 00H, Audio In 4 Send 7FH 79H 60H–00H 00H 00H–00H 00H -INFdB, -80.0–0.0–10.0dB 01H 23H 0CH 7EH 00H 00H, Audio In 5 Send 7FH 79H 60H–00H 00H 00H–00H 00H -INFdB, -80.0–0.0–10.0dB 01H 23H 0FH 7EH 00H 00H,...
  • Page 12 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 23H 4DH Audio In 6 Send Point 00H–02H Dry, Pre Fader, Post Fader 01H 23H 4EH Audio In 7/8 Send Point 00H–02H Dry, Pre Fader, Post Fader 01H 23H 4FH Audio In 9/10 Send Point 00H–02H Dry, Pre Fader, Post Fader 01H 23H 50H USB In Send Point...
  • Page 13 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 24H 26H GEQ Gain 160Hz 7EH 6AH–00H 00H–01H 16H -15.0–+15.0dB 01H 24H 28H GEQ Gain 250Hz 7EH 6AH–00H 00H–01H 16H -15.0–+15.0dB 01H 24H 2AH GEQ Gain 400Hz 7EH 6AH–00H 00H–01H 16H -15.0–+15.0dB 01H 24H 2CH GEQ Gain 630Hz...
  • Page 14 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 25H 27H 7EH 00H 00H, HDMI In 3 Send 7FH 79H 60H–00H 00H 00H–00H 00H -INFdB, -80.0–0.0–10.0dB 01H 25H 2AH 7EH 00H 00H, HDMI In 4 Send 7FH 79H 60H–00H 00H 00H–00H 00H -INFdB, -80.0–0.0–10.0dB 01H 25H 2DH 7EH 00H 00H,...
  • Page 15 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 26H 04H Delay 00H 00H–27H 08H 0.0–500.0msec 01H 26H 06H Equalizer Sw 00H–01H Off, On 01H 26H 07H Equalizer Hi Gain 04H–7CH -12.0–12.0dB 01H 26H 08H Equalizer Hi Frequency 24H–3EH 1.00–20.0kHz 01H 26H 09H Equalizer Lo-Mid Gain 04H–7CH...
  • Page 16 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Audio In 7/8 Embedded 01H 29H 0CH 00H–03H Off, Dry, Pre Fader, Post Fader Position Audio In 9/10 Embedded 01H 29H 0DH 00H–03H Off, Dry, Pre Fader, Post Fader Position 01H 29H 0EH USB In Embedded Position 00H–03H Off, Dry, Pre Fader, Post Fader Bluetooth In Embedded...
  • Page 17 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 31H 02H Audio In 2 00H–01H Disable, Enable 01H 31H 03H Audio In 3 00H–01H Disable, Enable 01H 31H 04H Audio In 4 00H–01H Disable, Enable 01H 31H 05H Audio In 5 00H–01H Disable, Enable 01H 31H 06H Audio In 6...
  • Page 18 MIDI Implementation À System Address Parameter Name Sys.Ex.Value Meaning of Value 02H 01H 00H HDCP 00H–01H Off, On 02H 01H 01H Frame Rate 00H–07H 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz, 24Hz, 23.98Hz 02H 01H 02H Frame Rate - USB Out 00H–01H Half Rate, Normal 02H 01H 03H Frame Rate - Stream/Record...
  • Page 19 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 01H 3AH Audio Level Meter - Multi-View 00H–01H Off, On 02H 01H 3BH Audio Level Meter - Input-View 00H–01H Off, On 02H 01H 3CH Preview Label - Multi-View 00H–01H Off, On 02H 01H 3DH Preview Label - Input-View 00H–01H Off, On...
  • Page 20 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Level Meter Position - Bluetooth 02H 02H 09H 00H–01H Pre Fader (PFL), Post Fader (AFL) Level Meter Position - Audio 02H 02H 0AH 00H–01H Pre Fader (PFL), Post Fader (AFL) Player 02H 02H 0BH Level Meter Position - HDMI In 1 00H–01H Pre Fader (PFL), Post Fader (AFL) 02H 02H 0CH Level Meter Position - HDMI In 2 00H–01H...
  • Page 21 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 03H 0DH MODE - AUX Button 00H–01H Off, On 02H 03H 0EH MODE - SCENE MEMORY Button 00H–01H Off, On 02H 03H 0FH MODE - MACRO Button 00H–01H Off, On 02H 03H 10H TRANSITION - SETUP Button 00H–01H Off, On...
  • Page 22 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 03H 4BH AUDIO MIXER 5 - MUTE Button 00H–01H Off, On 02H 03H 4CH AUDIO MIXER 5 - Level Fader 00H–01H Off, On 02H 03H 4DH AUDIO MIXER 6 - GAIN knob 00H–01H Off, On 02H 03H 4EH AUDIO MIXER 6 - SETUP Button...
  • Page 23 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 04H 08H Fade - PinP&Key 4 00H–01H Off, On 02H 04H 09H Fade - DSK 1 00H–01H Off, On 02H 04H 0AH Fade - DSK 2 00H–01H Off, On 02H 04H 0BH Load Parameters - Video Assign 00H–01H Off, On 02H 04H 0CH Load Parameters - Video Input...
  • Page 24 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 05H 09H Memory 10 Exist 00H–01H Not Exist, Exist (Read Only) 02H 05H 0AH Memory 11 Exist 00H–01H Not Exist, Exist (Read Only) 02H 05H 0BH Memory 12 Exist 00H–01H Not Exist, Exist (Read Only) 02H 05H 0CH Memory 13 Exist 00H–01H...
  • Page 25 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Memory 20 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 13H 00H–08H - Program Out Right Memory 21 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 14H 00H–08H - Program Out...
  • Page 26 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Memory 21 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 34H 00H–08H - DSK 1 Right Memory 22 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 35H 00H–08H - DSK 1...
  • Page 27 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Memory 22 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 55H 00H–08H - DSK 2 Right Memory 23 Thumbnail Position Upper Left, Upper, Upper Right, Left, Center, Right, Lower Left, Lower, Lower 02H 06H 56H 00H–08H - DSK 2...
  • Page 28 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 09H 0CH Input Scan - Input 8 Time 00H–78H Off, 1–120sec Scene Memory Scan - Scan 02H 09H 0DH 00H–02H Normal, Reverse, Random Sequence Scene Memory Scan - Memory 02H 09H 0EH 00H–78H Off, 1–120sec 1 Time...
  • Page 29 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value Video Follows Audio - SDI In 6 02H 09H 51H 00H–08H Off, Input 1–8 Target Video Follows Audio - Video 02H 09H 52H 00H–08H Off, Input 1–8 Player Target Video Follows Audio - Audio In 02H 09H 53H 4EH–00H -50–0 dB...
  • Page 30 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value PinP&Key 1 Scan - HDMI In 1 02H 0AH 01H 00H–78H Off, 1–120sec Time PinP&Key 1 Scan - HDMI In 2 02H 0AH 02H 00H–78H Off, 1–120sec Time PinP&Key 1 Scan - HDMI In 3 02H 0AH 03H 00H–78H Off, 1–120sec...
  • Page 31 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 0BH 11H PinP&Key 2 Scan - Still 5 Time 00H–78H Off, 1–120sec 02H 0BH 12H PinP&Key 2 Scan - Still 6 Time 00H–78H Off, 1–120sec 02H 0BH 13H PinP&Key 2 Scan - Still 7 Time 00H–78H Off, 1–120sec 02H 0BH 14H PinP&Key 2 Scan - Still 8 Time...
  • Page 32 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value PinP&Key 4 Scan - HDMI In 1 02H 0DH 01H 00H–78H Off, 1–120sec Time PinP&Key 4 Scan - HDMI In 2 02H 0DH 02H 00H–78H Off, 1–120sec Time PinP&Key 4 Scan - HDMI In 3 02H 0DH 03H 00H–78H Off, 1–120sec...
  • Page 33 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 0EH 17H DSK 1 Scan - Still 11 Time 00H–78H Off, 1–120sec 02H 0EH 18H DSK 1 Scan - Still 12 Time 00H–78H Off, 1–120sec 02H 0EH 19H DSK 1 Scan - Still 13 Time 00H–78H Off, 1–120sec 02H 0EH 1AH DSK 1 Scan - Still 14 Time...
  • Page 34 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value PGM HDMI In 1–6, PGM SDI In 1–6, PGM Still 1–16, PGM Video Player, PGM Input 02H 12H 12H Tally/GPO - Tally/GPO 16 00H–59H 1–8, PST HDMI In 1–6, PST SDI In 1–6, PST Still 1–16, PST Video Player, PST Input 1–8, GPO 1–16 02H 12H 13H GPI 1...
  • Page 35 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H xxH 05H IP Address 3 00H 00H–01H 7FH 0–255 02H xxH 07H IP Address 4 00H 00H–01H 7FH 0–255 02H xxH 09H Login Name 1 00H–7FH 02H xxH 0AH Login Name 2 00H–7FH 02H xxH 0BH Login Name 3 00H–7FH...
  • Page 36 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value White, Red, Green, Blue, Yellow, Magenta, Cyan, Dark Orange, Turquoise Green, 02H xxH 0FH Pad Color 00H–09H Purple 02H xxH 10H Playing Mode 00H–02H BGM, SE, Solo 02H xxH 11H 0.0–214748364.7sec 00H 00H 00H 00H 00H–07H 7FH 7FH Offset Time 7FH 7FH...
  • Page 37 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 0CH 00H 0AH SDI In 5 Tally 00H–02H Off, PGM, PST (Read Only) 0CH 00H 0BH SDI In 6 Tally 00H–02H Off, PGM, PST (Read Only) 0CH 00H 0CH Sill 1 Tally 00H–02H Off, PGM, PST (Read Only) 0CH 00H 0DH Sill 2 Tally...
  • Page 38 MIDI Implementation ÁMemory Name Area * xxH: 00H–1FH (Memory 1–32) Address Parameter Name Sys.Ex.Value Meaning of Value 60H xxH 00H Name (0) Name of preset memory number xx (1st character) 60H xxH 01H Name (1) Name of preset memory number xx (2nd character) 60H xxH 02H Name (2) Name of preset memory number xx (3rd character)

  • Page 39: Supplementary Material

    Calculating a Checksum ÁDecimal and Hexadecimal Table Roland Exclusive messages are transmitted with a checksum at the end (before F7) to make sure that the message was correctly received. The value of the checksum is determined by the address and data (or size) of the transmitted exclusive message.

  • Page 40: Midi Implementation Chart

    MIDI Implementation Chart Streaming Video Switcher Date: June 21. 2023 Model VR-120HD Version: 1.08 Function Transmitted Recognized Remarks Basic Default Channel Changed Default Mode Messages Altered ************** ************** Note True Voice Number Note On Velocity Note Off After Key’s Touch Channel’s...

  • Page 41: Lan/Rs-232 Command Reference

    LAN/RS-232 Command Reference The VR-120HD support two types of remote-interface communication: LAN and RS-232. Using the LAN CONTROL port or RS-232 connector to send specific commands to the VR-120HD from a controlling device lets you operate the VR-120HD remotely. LAN Interface This uses the LAN CONTROL port on the VR-120HD.

  • Page 42: Command Format

    LAN/RS-232 Command Reference Command Format Commands are formatted using the configuration shown below. Commands are all in ASCII code. * Commands are common to the LAN and the RS-232 interface. Command code Parameter Parameter ASCII code “02H” is a control code indicating the start of a command.

  • Page 43: List Of Commands

    SysEx address (hexadecimal, three bytes) (SysEx-supported command) Request size (hexadecimal, three bytes) Setting value (hexadecimal) Version information stxVER; stxVER:a,b; a: VR-120HD (Product name) b: Version number <Example> 1.00 Flow control Flow control xoff Commands spontaneously sent from theVR-120HD Sent Response...
