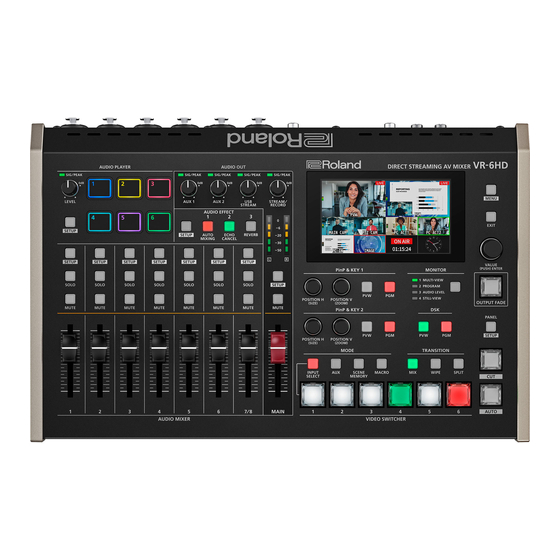

Roland VR-6HD Manual

Roland VR-6HD Manual

Direct streaming av mixer
Hide thumbs Also See for VR-6HD:
Table of Contents

Advertisement

Quick Links

Download this manual
© 2023 Roland Corporation
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. MIDI Messages Received at MIDI IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Parameter Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Supplementary Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MIDI Implementation Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
RS-232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Command Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
List of Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Remote Control Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2
2
3
01

Advertisement

Table of Contents
loading

Related Manuals for Roland VR-6HD

Summary of Contents for Roland VR-6HD

  • Page 1: Table Of Contents

    List of Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 © 2023 Roland Corporation...

  • Page 2: Midi Implementation

    (manufacturer ID). The manufac- Address lower byte turer ID of Roland is 41H. The ID numbers of 7EH and Data: actual data to transmit. Multiple byte data is sent in address 7FH are expansion of MIDI standards and used as order.

  • Page 3: Parameter Address Map

    MIDI Implementation 2. Parameter Address Map Start Address Description Start Address Description 00H 00H 00H Video Parameter Area 18H 00H 00H Video Parameter (MEMORY 5) Area 19H 00H 00H Audio Parameter (MEMORY 5) Area 01H 00H 00H Audio Parameter Area 02H 00H 00H System Parameter Area 1AH 00H 00H...
  • Page 4 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 00H xxH 0BH POSITION H 71H 00H–00H 00H–0FH 00H -1920–0–1920 00H xxH 0DH POSITION V 76H 50H–00H 00H–09H 30H -1200–0–1200 00H xxH 0FH BRIGHTNESS 60H–00H–1FH -32–0–31 00H xxH 10H CONTRAST 60H–00H–1FH -32–0–31 00H xxH 11H SATURATION...
  • Page 5 MIDI Implementation À PinP&KEY * xxH: 0CH–0DH (PinP&KEY 1–2) Address Parameter Name Sys.Ex.Value Meaning of Value 00H xxH 00H TIME 00H–28H 0.0–4.0sec 00H xxH 01H PGM SW 00H–01H OFF, ON 00H xxH 02H PVW SW 00H–01H OFF, ON 00H xxH 03H SOURCE 00H–1CH VIDEO IN 1–6, STILL 1–16, VIDEO PLAYER, INPUT 1–6...
  • Page 6 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 00H 0EH 13H SATURATION FINE 00H 00H–01H 7FH 0–255 00H 0EH 15H FILL TYPE 00H–01H BUS, MATTE 00H 0EH 16H MATTE COLOR 00H–07H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK 00H 0EH 17H EDGE TYPE 00H–04H OFF, BORDER, DROP, SHADOW, OUTLINE...
  • Page 7 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H xxH 15H DE-ESSER SW 00H–01H OFF, ON 01H xxH 16H DE-ESSER SENS 00H–64H 0–100 01H xxH 17H DE-ESSER DEPTH 00H–64H 0–100 01H xxH 18H NOISE GATE SW 00H–01H OFF, ON 01H xxH 19H NOISE GATE THRESHOLD 30H–00H...
  • Page 8 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 21H 0FH REVERB LEVEL 00H–7FH 0–127 01H 21H 10H REVERB SW 00H–01H OFF, ON 01H 21H 11H REVERB TYPE 00H–01H ROOM, HALL 01H 21H 12H REVERB SIZE 01H–14H 1–20 01H 21H 13H 7EH 00H 00H, REVERB RETURN LEVEL 7FH 79H 60H–00H 00H 00H–...
  • Page 9 MIDI Implementation À AUDIO AUX 1 BUS Address Parameter Name Sys.Ex.Value Meaning of Value 01H 22H 00H 7EH 00H 00H, LEVEL 7FH 79H 60H–00H 00H 00H– -INFdB, -80.0–0.0–10.0dB 00H 00H 64H 01H 22H 03H MUTE 00H–01H OFF, ON 01H 22H 04H SOLO 00H–01H OFF, ON 01H 22H 05H...
  • Page 10 MIDI Implementation À AUDIO AUX 1 SEND Address Parameter Name Sys.Ex.Value Meaning of Value 01H 23H 00H 7EH 00H 00H, AUDIO IN 1 SEND 7FH 79H 60H–00H 00H 00H– -INFdB, -80.0–0.0–10.0dB 00H 00H 64H 01H 23H 03H 7EH 00H 00H, AUDIO IN 2 SEND 7FH 79H 60H–00H 00H 00H–...
  • Page 11 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 23H 41H VIDEO IN 5 SEND POINT 00H–02H DRY, PRE FADER, POST FADER 01H 23H 42H VIDEO IN 6 SEND POINT 00H–02H DRY, PRE FADER, POST FADER 01H 23H 43H VIDEO PLAYER SEND POINT 00H–02H DRY, PRE FADER, POST FADER À...
  • Page 12 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 24H 38H GEQ GAIN 10kHz 7EH 6AH–00H 00H–01H 16H -15.0–+15.0dB 01H 24H 3AH GEQ GAIN 16kHz 7EH 6AH–00H 00H–01H 16H -15.0–+15.0dB À AUDIO AUX 2 SEND Address Parameter Name Sys.Ex.Value Meaning of Value 01H 25H 00H 7EH 00H 00H,...
  • Page 13 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 25H 3BH Bluetooth IN SEND POINT 00H–02H DRY, PRE FADER, POST FADER 01H 25H 3CH AUDIO PLAYER SEND POINT 00H–02H DRY, PRE FADER, POST FADER 01H 25H 3DH VIDEO IN 1 SEND POINT 00H–02H DRY, PRE FADER, POST FADER 01H 25H 3EH VIDEO IN 2 SEND POINT...
  • Page 14 MIDI Implementation À AUDIO EMBEDDED Address Parameter Name Sys.Ex.Value Meaning of Value N/A, AUDIO IN 1/2, AUDIO IN 3/4, AUDIO IN 5/6, AUDIO IN 7/8, USB IN, 01H 29H 00H VIDEO OUT 1-3 SEND (CHANNEL 3/4) 00H–0EH Bluetooth IN, AUDIO PLAYER, VIDEO IN 1–6, VIDEO PLAYER N/A, AUDIO IN 1/2, AUDIO IN 3/4, AUDIO IN 5/6, AUDIO IN 7/8, USB IN, 01H 29H 01H VIDEO OUT 1-3 SEND (CHANNEL 5/6) 00H–0EH Bluetooth IN, AUDIO PLAYER, VIDEO IN 1–6, VIDEO PLAYER...
  • Page 15 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 01H 31H 0AH AUDIO PLAYER 00H–01H DISABLE, ENABLE 01H 31H 0BH VIDEO IN 1 00H–01H DISABLE, ENABLE 01H 31H 0CH VIDEO IN 2 00H–01H DISABLE, ENABLE 01H 31H 0DH VIDEO IN 3 00H–01H DISABLE, ENABLE 01H 31H 0EH VIDEO IN 4...
  • Page 16 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 01H 14H USER 1 ASSIGN 00H 00H–01H 5AH 02H 01H 16H USER 2 ASSIGN 00H 00H–01H 5AH See “Menu List” in the “Reference Manual” (PDF). 02H 01H 18H USER 3 ASSIGN 00H 00H–01H 5AH 02H 01H 1AH USER 4 ASSIGN...
  • Page 17 MIDI Implementation À AUDIO LEVEL METER Address Parameter Name Sys.Ex.Value Meaning of Value 02H 02H 00H LEVEL METER POSITION - AUDIO IN 1 00H–01H PRE FADER (PFL), POST FADER (AFL) 02H 02H 01H LEVEL METER POSITION - AUDIO IN 2 00H–01H PRE FADER (PFL), POST FADER (AFL) 02H 02H 02H LEVEL METER POSITION - AUDIO IN 3...
  • Page 18 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 03H 14H PinP&KEY 2 - POSITION H 00H–01H OFF, ON 02H 03H 15H PinP&KEY 2 - POSITION V 00H–01H OFF, ON 02H 03H 16H PinP&KEY 2 - PVW BUTTON 00H–01H OFF, ON 02H 03H 17H PinP&KEY 2 - PGM BUTTON 00H–01H...
  • Page 19 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 04H 04H FADE - MIX/WIPE 00H–01H OFF, ON 02H 04H 05H FADE - PinP&KEY 1 00H–01H OFF, ON 02H 04H 06H FADE - PinP&KEY 2 00H–01H OFF, ON 02H 04H 07H FADE - DSK 00H–01H OFF, ON 02H 04H 08H LOAD PARAMETERS - VIDEO ASSIGN...
  • Page 20 MIDI Implementation À SCENE MEMORY THUMBNAIL POSITION Address Parameter Name Sys.Ex.Value Meaning of Value UPPER LEFT, UPPER, UPPER RIGHT, LEFT, CENTER, RIGHT, LOWER LEFT, 02H 06H 00H MEMORY 1 THUMBNAIL POSITION - PROGRAM OUT 00H–08H LOWER, LOWER RIGHT UPPER LEFT, UPPER, UPPER RIGHT, LEFT, CENTER, RIGHT, LOWER LEFT, 02H 06H 01H MEMORY 2 THUMBNAIL POSITION - PROGRAM OUT 00H–08H LOWER, LOWER RIGHT UPPER LEFT, UPPER, UPPER RIGHT, LEFT, CENTER, RIGHT, LOWER LEFT,...
  • Page 21 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value UPPER LEFT, UPPER, UPPER RIGHT, LEFT, CENTER, RIGHT, LOWER LEFT, 02H 06H 21H MEMORY 2 THUMBNAIL POSITION - DSK 00H–08H LOWER, LOWER RIGHT UPPER LEFT, UPPER, UPPER RIGHT, LEFT, CENTER, RIGHT, LOWER LEFT, 02H 06H 22H MEMORY 3 THUMBNAIL POSITION - DSK 00H–08H LOWER, LOWER RIGHT...
  • Page 22 MIDI Implementation À FREEZE Address Parameter Name Sys.Ex.Value Meaning of Value 02H 08H 00H FREEZE 00H–01H OFF, ON 02H 08H 01H TYPE 00H–01H ALL, SELECT 02H 08H 02H FREEZE SELECT - VIDEO IN 1 00H–01H DISABLE, ENABLE 02H 08H 03H FREEZE SELECT - VIDEO IN 2 00H–01H DISABLE, ENABLE 02H 08H 04H FREEZE SELECT - VIDEO IN 3...
  • Page 23 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H 0AH 14H VIDEO FOLLOWS AUDIO - VIDEO IN 1 TARGET 00H 00H–01H 0AH OFF, INPUT 1–6, MEMORY 1–32, MACRO 1–100 02H 0AH 16H VIDEO FOLLOWS AUDIO - VIDEO IN 2 TARGET 00H 00H–01H 0AH OFF, INPUT 1–6, MEMORY 1–32, MACRO 1–100 02H 0AH 18H...
  • Page 24 MIDI Implementation À AUTO SWITCHING - PINP&KEY 2 SCAN Address Parameter Name Sys.Ex.Value Meaning of Value 02H 0CH 00H PINP&KEY 2 SCAN - SCAN SEQUENCE 00H–02H NORMAL, REVERSE, RANDOM 02H 0CH 01H PINP&KEY 2 SCAN - VIDEO IN 1 TIME 00H–78H OFF, 1–120sec 02H 0CH 02H PINP&KEY 2 SCAN - VIDEO IN 2 TIME...
  • Page 25 MIDI Implementation À RS-232/TALLY/GPO/GPI/KEYPAD Address Parameter Name Sys.Ex.Value Meaning of Value 02H 12H 00H RS-232 00H–01H OFF, ON 02H 12H 01H RS-232 - BAUDRATE 00H–02H 9600, 38400, 115200 02H 12H 02H TALLY/GPO - TEMPLATE 00H–02H TALLY, GPO, TALLY/GPO PGM VIDEO IN 1–6, PGM STILL 1–16, PGM VIDEO PLAYER, PGM INPUT 1–6, PST 02H 12H 03H TALLY/GPO - TALLY/GPO 1 00H–49H VIDEO IN 1–6, PST STILL 1–16, PST VIDEO PLAYER, PST INPUT 1–6, GPO 1–16...
  • Page 26 MIDI Implementation À CAMERA CONTROL * xxH: 51H–56H (CAMERA 1–6) Address Parameter Name Sys.Ex.Value Meaning of Value 02H xxH 00H PROTOCOL 00H–06H N/A, JVC, Panasonic, Canon, VISCA over IP, PTZOptics, Avonic 02H xxH 01H IP ADDRESS 1 00H 00H–01H 7FH 0–255 02H xxH 03H IP ADDRESS 2...
  • Page 27 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 02H xxH 08H 7EH 00H 00H, LEVEL 7FH 79H 60H–00H 00H 00H– -INFdB, -80.0–0.0–10.0dB 00H 00H 64H 02H xxH 0BH FADE IN TIME 00H–64H 0.0–10.0sec 02H xxH 0CH FADE OUT TIME 00H–64H 0.0–10.0sec 02H xxH 0DH REPEAT...
  • Page 28 MIDI Implementation ÁTally Area À TALLY INFO Address Parameter Name Sys.Ex.Value Meaning of Value 0CH 00H 00H VIDEO IN 1 TALLY 00H–02H OFF, PGM, PST (read only) 0CH 00H 01H VIDEO IN 2 TALLY 00H–02H OFF, PGM, PST (read only) 0CH 00H 02H VIDEO IN 3 TALLY 00H–02H OFF, PGM, PST (read only)
  • Page 29 MIDI Implementation ÁMemory Name Area * xxH: 00H–1FH (MEMORY 1–32) Address Parameter Name Sys.Ex.Value Meaning of Value 60H xxH 00H NAME (0) Name of preset memory number xx (1st character) 60H xxH 01H NAME (1) Name of preset memory number xx (2nd character) 60H xxH 02H NAME (2) Name of preset memory number xx (3rd character)

  • Page 30: Supplementary Material

    Calculating a Checksum ÁDecimal and Hexadecimal Table Roland Exclusive messages are transmitted with a checksum at the end (before F7) to make sure that the message was correctly received. The value of the checksum is determined by the address and data (or size) of the transmitted exclusive message.

  • Page 31: Midi Implementation Chart

    MIDI Implementation Chart Streaming Video Switcher Date: July 21. 2023 Model VR-6HD Version: 1.06 Function Transmitted Recognized Remarks Basic Default Channel Changed Default Mode Messages Altered ************** ************** Note True Voice Number Note On Velocity Note Off After Key’s Touch Channel’s...

  • Page 32: Lan/Rs-232 Command Reference

    LAN/RS-232 Command Reference The VR-6HD support two types of remote-interface communication: LAN and RS-232. Using the LAN CONTROL port or RS-232 connector to send specific commands to the VR-6HD from a controlling device lets you operate the VR-6HD remotely. LAN Interface RS-232 Interface This uses the LAN CONTROL port on the VR-6HD.

  • Page 33: List Of Commands

    SysEx address (hexadecimal, three bytes) (SysEx-supported command) Request size (hexadecimal, three bytes) Setting value (hexadecimal) Version information stxVER; stxVER:a,b; a: VR-6HD (Product name) b: Version number <Example> 1.00 Flow control Flow control xoff Commands spontaneously sent from theVR-6HD Sent Response...
