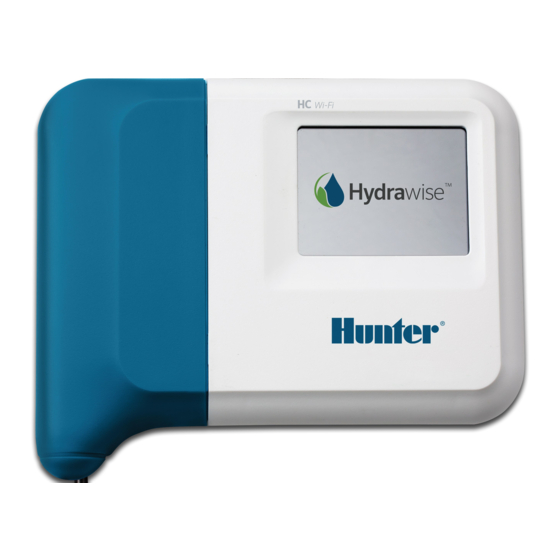

Hunter Hydrawise HC Installation Manual
Wi-fi irrigation control system
Hide thumbs
Also See for Hydrawise HC:
- Installation manual (32 pages) ,
- Owner's manual (16 pages) ,
- Quick start manual (13 pages)
Related Manuals for Hunter Hydrawise HC
Summary of Contents for Hunter Hydrawise HC
- Page 1 Hydrawise-Ready Controllers INSTALLATION GUIDE FOR THE FOLLOWING CONTROLLERS: Pro-C ® Hydrawise ™ Pro-HC The Most Complete Wi-Fi Irrigation Control System...
-
Page 2: Table Of Contents
Table of Contents Thank You for Purchasing a Hydrawise-Ready Controller Mount Your Controller HC Controller Pro-C with Hydrawise or Pro-HC controller Connect Power to Your Controller HC Controller Pro-HC Indoor Controller Pro-C Hydrawise and Pro-HC Outdoor Controller Retrofit Your Pro-C Controller With the HPC-FP Kit Hydrawise Controller Touchscreen Configure Your Controller Offline... -
Page 3: Thank You For Purchasing A Hydrawise-Ready Controller
Thank You for Purchasing a Hydrawise-Ready Controller Your Hydrawise controller can connect to the internet via your Wi-Fi router and is then available for you to use Important: Test your Wi-Fi signal strength with a mobile device or through your smart devices (phone or tablet) and your the unmounted controller to ensure it is installed within computer. - Page 4 (teléfono o tablet) y ordenadores. Visite hydrawise.com para empezar. Grazie per aver acquistato un programmatore di irrigazione Hunter predisposto per Hydrawise ¿Necesita más información sobre el producto? Encuentre consejos de instalación, programación y más.
- Page 5 Thank You for Purchasing a Hydrawise-Ready Controller Avete bisogno di informazioni più utili sul vostro RU Благодарим вас за покупку контроллера системы prodotto? Ricevete suggerimenti sull’installazione, sulla полива, совместимого с Hydrawise programmazione del programmatore e molto altro ancora. Ваш контроллер Hydrawise можно подключить к сети http://support.hydrawise.com Интернет...
- Page 6 Thank You for Purchasing a Hydrawise-Ready Controller TR Hydrawise yazılımı hazır sulama kontrol ünitesi satın aldığınız için teşekkür ederiz Hydrawise kontrol ünitenizi Wi-Fi yönlendiriciniz üzerinden internete bağlayabilir ve ardından kontrol ünitesini akıllı cihazlarınız (telefon veya tablet) ve bilgisayarınız aracılığıyla kullanabilirsiniz. Başlamak için hydrawise.com adresini ziyaret edin.
-
Page 7: Mount Your Controller
Mount Your Controller HC Controller 1. Choose a suitable location with good Wi-Fi coverage. 2. Using a 3/ 16" drill bit, drill a hole and insert plastic anchor. 3. Insert screw into anchor leaving 1/8" exposed. 4. Slide the controller case over the screw head. 5. - Page 8 Mount Your Controller DE Installation Ihres HC-Steuergeräts 4. Faites glisser le boîtier du programmateur sur la tête de la 1. Wählen Sie einen Standort mit guter Wi-Fi-Abdeckung vis. aus. 5. Marquez le deuxième point de fixation, percez le trou, 2. Verwenden Sie einen Bohreinsatz mit einem Durchmesser insérez la cheville et fixez le programmateur en place.
- Page 9 Mount Your Controller RU Установка контроллера HC 1. Выберите подходящее место с хорошим покрытием сети Wi-Fi. 2. С помощью сверла 3/ 16" сделайте отверстие и вставьте в него пластиковый дюбель. 3. Вкрутите винт так, чтобы он выступал на 1/8" дюйма. 4.
-
Page 10: Pro-C With Hydrawise Or Pro-Hc Controller
Mount Your Controller Pro-C with Hydrawise or Pro-HC controller 1. Choose a suitable location with good Wi-Fi coverage. 2. Using a 3/ 16" drill bit, drill a hole and insert plastic anchor. 3. Insert screw into anchor leaving 1/8" exposed. 4. - Page 11 Mount Your Controller FR Programmateur Pro-C Hydrawise ou Pro-HC RU Контроллер Pro-C с поддержкой Hydrawise или 1. Choisissez un emplacement approprié avec une bonne контроллер Pro-HC couverture Wi-Fi. 1. Выберите подходящее место с хорошим покрытием 2. À l'aide d'un foret de diamètre 3/ 16", percez un trou et сети...
-
Page 12: Connect Power To Your Controller
Connect Power to Your Controller HC Controller Important: The HC controller is designed for indoor use only. Do not cut the cord. 1. Do not plug the transformer into the power source until controller is mounted and all wiring has been connected. 2. - Page 13 Connect Power to Your Controller 1. Não conecte o transformador à fonte de alimentação até 3. Introduzca el cable del transformador por el orificio en la parte inferior del programador, conecte un cable amarillo a que o controlador esteja montado e toda a fiação esteja cada una de las terminales marcadas como 24VAC y coloque conectada.
-
Page 14: Pro-Hc Indoor Controller
Connect Power to Your Controller Pro-HC Indoor Controller 1. Do not plug the transformer into the power source until controller is mounted and all wiring has been connected. 2. Open facepack to expose controller cabinet. 3. Route transformer cable through the hole on the bottom left of the controller, connect one yellow wire to each of the screws marked 24VAC, and wire the green wire to the screw marked GND. - Page 15 Connect Power to Your Controller FR Programmateur d'intérieur Pro-HC 3. Passe o cabo do transformador pelo furo na parte inferior 1. Ne branchez pas le transformateur à la source esquerda do controlador, conecte um fio amarelo a cada d'alimentation tant que le programmateur n'est pas fixé et parafuso marcado com 24 VCA e o fio verde ao parafuso que tous les branchements ne sont pas effectués.
-
Page 16: Pro-C Hydrawise And Pro-Hc Outdoor Controller
Connect Power to Your Controller Pro-C Hydrawise and Pro-HC Outdoor Controller Important: The Pro-C with Hydrawise and Pro-HC outdoor controllers must be installed by an authorized service technician. 1. Do not plug the transformer into the power source until controller is mounted and all wiring has been connected. 2. - Page 17 Connect Power to Your Controller ES Conecte la toma de corriente a su programador Pro-C Collegate Pro-C Hydrawise e Pro-HC per esterni Hydrawise y Pro-HC para exteriores. all'alimentazione ! Importante: I programmatori Pro-C con Hydrawise e Pro- ! Importante: Los programadores Pro-C con Hydrawise y Pro-HC para exteriores deben ser instalados por un técnico HC devono essere installati da un tecnico autorizzato.
- Page 18 Connect Power to Your Controller RU Подсоедините питание к контроллеру Pro-C с поддержкой Hydrawise и контроллеру Pro-HC для наружного монтажа Важная информация! Установку контроллера Pro-C с поддержкой Hydrawise и контроллера Pro- HC для наружного монтажа должен выполнять уполномоченный сервисный специалист. 1.
-
Page 19: Retrofit Your Pro-C Controller
Retrofit Your Pro-C Controller With the HPC-FP Kit Important: Ensure you have a strong Wi-Fi signal. Wi-Fi coverage can be easily tested using a smartphone. A signal strength of two or three bars is recommended. Wi-Fi connectivity can also be tested on the HPC itself (signal strength is shown when you select a wireless network). - Page 20 Retrofit Your Pro-C Controller boîtier, décrochez le câble ruban, libérez la charnière à 3. Drücken Sie auf die Scharniere seitlich an der HPC-FP Bedienfront, stecken Sie die Stifte in das Gehäuse des l'arrière de la façade du Pro-C et retirez la façade. Steuergeräts, verbinden Sie das Flachbandkabel mit der 3.
- Page 21 Retrofit Your Pro-C Controller TR Pro-C ünitenizi HPC-FP kiti ile iyileştirme 3. Pressione as dobradiças na lateral do painel frontal do HPC-FP, insira os pinos no gabinete do controlador, ! Önemli: Hydrawise yazılımlı Pro-C ve Pro-HC dış mekan reconecte o cabo plano ao novo painel frontal e religue a kontrol ünitelerinin yetkili bir servis teknisyeni tarafından alimentação ao controlador.
-
Page 22: Hydrawise Controller Touchscreen
Hydrawise Controller Touchscreen From the Zones screen, you can manually configure each zone Connection Wizard according to your desired schedule. Touch the Add button to add a program start time and follow the steps below. You can toggle Welcome to Hydrawise! between zones by touching the Next or Previous buttons or you can leave the start time to Apply to All Zones. - Page 23 Hydrawise Controller Touchscreen nachfolgenden Schritte. Über die Tasten Nächste oder FR Configurer votre programmateur hors connexion Vorherige können Sie zwischen den Zonen umschalten oder Sur l'écran de l'assistant de connexion, appuyez sur die Startzeit mit Auf alle Zonen anwenden festlegen. Configure Offline (configurer hors connexion).
- Page 24 Hydrawise Controller Touchscreen Configurazione del programmatore offline Insira a data de hoje caso ainda não tenha sido definida ou Dalla schermata della connessione guidata, toccate esteja incorreta. Insira o horário de hoje caso ainda não tenha Configure Offline (Configura offline). Toccate OK per passare sido definido ou esteja incorreto.
- Page 25 Hydrawise Controller Touchscreen После этого активируйте главный клапан. Если вы не Ayarlı değilse veya girilen tarih yanlışsa güncel tarihi girin. используете главный клапан, выберите пункт Disable Ayarlı değilse veya girilen saat yanlışsa saati girin. Bu ekranda Master Valve («Отключить главный клапан»). Затем OK (Tamam)’a dokunun.
-
Page 26: Home Screen Navigation
Hydrawise Controller Touchscreen Home Screen Navigation ① Touch to view all zones. ② Touch to change controller settings. ③ Touch to view controller status information. ➊ ➋ ④ Go to previous screen (changes not saved). Settings ⑤ Go to Home screen (changes not saved). ➅... - Page 27 Hydrawise Controller Touchscreen ➆ Le voci in VERDE indicano impostazioni che è possibile ➅ Los elementos color GRIS indican la información del estado. modificare. ➆ Los elementos color VERDE indican los ajustes que PT Noções básicas do seu controlador e da navegação pela tela pueden cambiarse.
- Page 28 Hydrawise Controller Touchscreen TR Dokunmatik Ekranlı Kontrol Üniteniz ve Ana Ekranda Gezinti Hakkında Temel Bilgiler ① Tüm bölgeleri görüntülemek için dokunun. ② Kontrol ünitesi ayarlarını değiştirmek için dokunun. ③ Kontrol ünitesi durum bilgilerini görüntülemek için dokunun. ④ Önceki ekrana gidin (değişiklikler kaydedilmez). ⑤...
-
Page 29: Using The Connection Wizard
Hydrawise Controller Touchscreen ① Touch to change wireless access point. Wireless Settings ② Current wireless connection status. ③ Touch to change wireless security type. Status ➋ ④ Touch to change wireless password. Connecting to hydrawise... When connecting to your wireless, the Wi-Fi icon at the Wireless Name Security Type... - Page 30 Hydrawise Controller Touchscreen Wenn Sie sich mit Ihrem Drahtlosnetzwerk verbinden, FR Connectez votre programmateur à Internet à l'aide de blinkt das Wi-Fi-Symbol unten rechts auf dem Display l'assistant de connexion des Steuergeräts auf. Der Verbindungsaufbau dauert ca. Sur l'écran d'accueil, appuyez sur le bouton Paramètres, puis 30 Sekunden.
- Page 31 Hydrawise Controller Touchscreen ! Importante: se sua rede não estiver aparecendo na lista, Selezionate la rete wireless dall’elenco mostrato sul display del programmatore, quindi premete il pulsante Conferma verifique se a unidade está dentro do raio de alcance da rede sullo schermo.
- Page 32 Hydrawise Controller Touchscreen ① Нажмите для изменения беспроводной точки ① Kablosuz erişim noktasını değiştirmek için dokunun. доступа. ② Geçerli kablosuz ağ bağlantısı durumu. ② Текущий статус беспроводного соединения. ③ Kablosuz ağ güvenlik türünü değiştirmek için dokunun. ③ Нажмите, чтобы изменить тип обеспечения ④...
-
Page 33: Notices
Certificate of Conformity to European Directives This equipment has been tested and found to comply with the Hunter Industries declares that the irrigation controller Model limits for a Class B digital device, pursuant to part 15 of the HCC complies with the standards of the European Directives of FCC Rules. - Page 34 Notes hydrawise.com...
- Page 35 Notes hunterindustries.com...
- Page 36 Helping our customers succeed is what drives us. While our passion for innovation and engineering is built into everything we do, it is our commitment to exceptional support that we hope will keep you in the Hunter family of customers for years to come. Gregory R. Hunter, CEO of Hunter Industries HUNTER INDUSTRIES INCORPORATED | Built on Innovation®...
