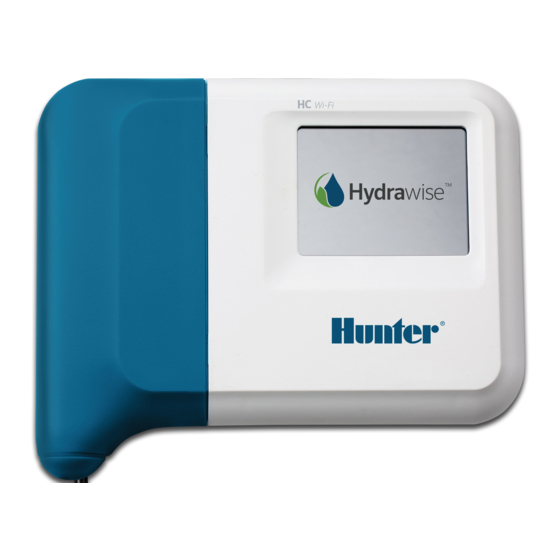

- Page 1 HC IRRIGATION CONTROLLER Hydrawise Ready ™ Quick Start Guide hunterindustries.com...
- Page 2 App Configuration HC SUPPORT Thank you for purchasing the Hunter HC Controller. In this Quick Start Guide you will learn how to install and configure the HC Controller and connect to Wi-Fi. For support for Hydrawise™ cloud software or help with your Hydrawise account, please visit hunter.direct/hchelp.
- Page 3 INSTALLATION Installing the HC Controller The HC is designed for indoor installations only. The chosen location must have Wi-Fi coverage. Wi-Fi coverage can be easily tested using a smart phone. A signal strength of 2 or 3 bars is recommended. Wi-Fi connectivity can also be tested on the HC itself (signal strength is shown when you select a wireless network).
- Page 4 Mounting the controller 1. Using a drill bit of 3/ 16 inch diameter, 4. Slide the controller case over the drill a hole to a depth of 1 inch screw head. (25 mm). 5. Mark second mounting point (see ③ 2.
- Page 5 If you’re not using the initial startup wizard then go to the Viewing Wireless Settings section to change your wireless settings at hunter.direct/hchelp. Using the Wizard 1. Select your wireless network from the list shown on the controller display and press the Confirm button on screen.
- Page 6 CONNECTING TRANSFORMER & SOLENOID VALVES Your controller has either 6 or 12 zones depending on the model you have purchased. There are three COMMON wiring points for convenience – any or all of them can be used. Refer to the diagram below when connecting your solenoid valves to the controller. ①...
- Page 7 Solenoid Valve Wiring Step 1 Step 2 Step 3 Take one wire from each Connect each of the Connect the common solenoid, twist together other individual wires to wire from the multicore and connect to the common a different colored wire. cable (usually white) to (usually white) wire of your Record zones against wire...
- Page 8 HYDRAWISE APP CONFIGURATION To connect the HC Controller to the Hydrawise app, follow these steps and then follow the on-screen instructions. Register for an Account Online 1. If you have not already done so, create an account at the Hydrawise website. Go to Hydrawise.com and register for an account.
- Page 9 Canadian FCC Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
- Page 12 TROUBLESHOOTING Need more helpful information on your product? Find tips on installation, controller programming and more. hunter.direct/hchelp RESIDENTIAL & COMMERCIAL IRRIGATION Built on Innovation® Learn more. Visit hunterindustries.com LIT-694-QG-HC US 7/16...
