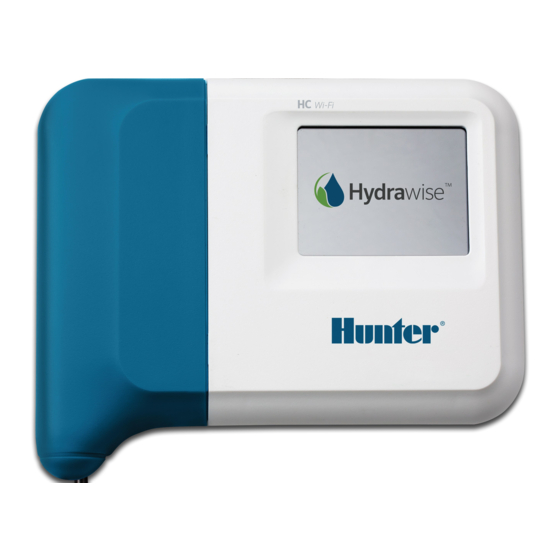

Hunter Hydrawise HC Installation Manual
Ready controllers
Hide thumbs
Also See for Hydrawise HC:
- Installation manual (36 pages) ,
- Owner's manual (16 pages) ,
- Quick start manual (13 pages)
Related Manuals for Hunter Hydrawise HC
Summary of Contents for Hunter Hydrawise HC

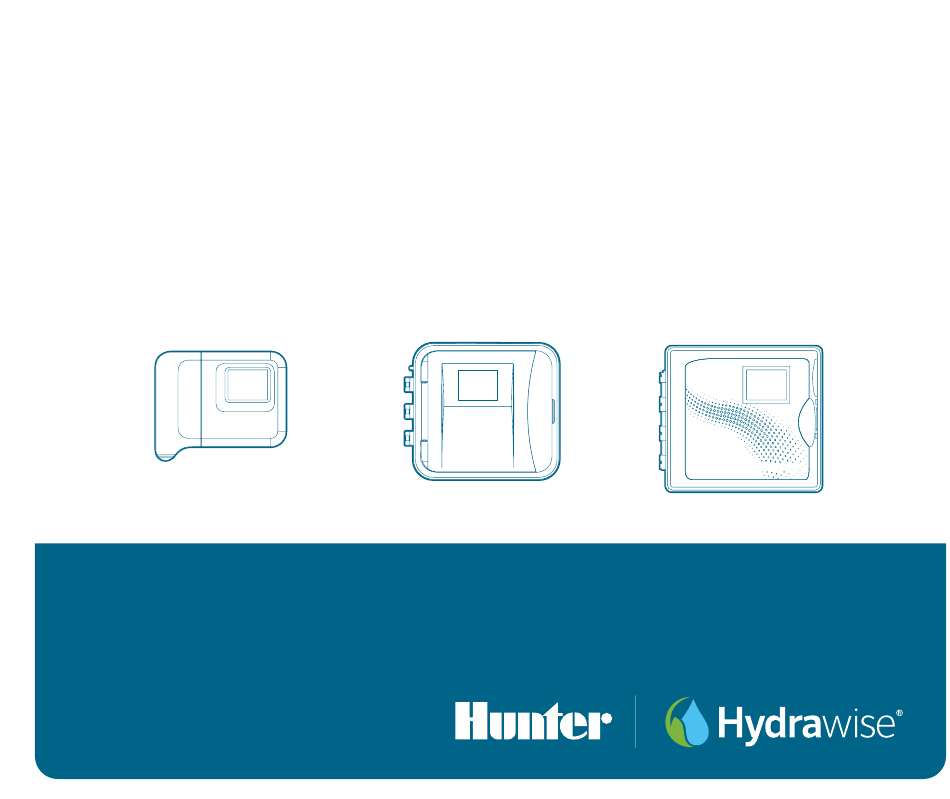

- Page 1 Hydrawise Ready Controllers ® ® INSTALLATION GUIDE FOR THE FOLLOWING HUNTER CONTROLLERS: Pro-HC The Most Complete Wi-Fi Irrigation Control System...
-
Page 2: Table Of Contents
Table of Contents Thank You for Purchasing a Hydrawise-Ready Controller Mount Your Controller HC Controller HPC or Pro-HC Controllers Connect Power to Your Controller HC Controller Indoor Pro-HC Controller Outdoor HPC and Pro-HC Controllers ® Retrofit Your Pro-C Controller With the HPC-FP Kit Home Screen Navigation Using the Connection Wizard Download the Hydrawise App from the... -
Page 3: Thank You For Purchasing A Hydrawise-Ready Controller
Need more helpful information on your product? Scan below to find tips on installation, controller programming, and more. SCAN SCAN Visit hunter.help/wifispecs to ensure your Wi-Fi for help for help network meets the requirements of your Hunter Hydrawise-ready controller. hunter.help/hydrawise hunterindustries.com... - Page 4 à Internet via votre routeur Wi-Fi. Une fois connecté, vous Programmierung des Steuergeräts sowie weitere Informationen. pouvez accéder à votre système d'arrosage et le gérer à l'aide hunter.info/hydrawiseTECH de votre smartphone, tablette ou ordinateur. Rendez-vous sur ! Wichtig: Mittlere bis hohe Signalstärke ist notwendig, um hydrawise.com pour commencer.
- Page 5 Контроллер с поддержкой Hydrawise можно подключить к del programmatore e altro ancora. интернету при помощи Wi-Fi-маршрутизатора. Установив hunter.info/hydrawiseTECH соединение, вы сможете отслеживать и контролировать ! Importante: È preferibile una potenza di segnale medio-alta работу оросительной системы прямо со смартфона, планшета...
- Page 6 Ürününüz hakkında daha fazla faydalı bilgiye mi ihtiyacınız var? Kurulum, kontrol ünitesinin programlanması ve çok daha fazlası hakkında ipuçlarına ulaşmak için aşağıyı inceleyin. hunter.info/hydrawiseTECH ! Önemli: Kontrol ünitesi ve yönlendirici arasında sağlıklı bir bağlantı sağlamak için orta veya yüksek sinyal gücü...
-
Page 7: Mount Your Controller
Mount Your Controller HC Controller Choose a suitable location with strong Wi-Fi coverage. Using a 3/ 16" drill bit, drill a hole and insert a plastic anchor. Insert a screw into the anchor, leaving 1/8" exposed. Slide the controller case over the screwhead. Mark a second mounting point, drill and fit the anchor, and fix the controller in place. - Page 8 Mount Your Controller FR Fixez votre programmateur HC RU Как установить контроллер HC Choisissez un emplacement approprié avec une bonne Выберите подходящее место установки с надежным couverture Wi-Fi. покрытием сети Wi-Fi. À l'aide d'un foret de diamètre 3/ 16" (5 mm), percez un trou et Просверлите...
-
Page 9: Hpc Or Pro-Hc Controllers
Mount Your Controller HPC or Pro-HC Controllers Choose a suitable location with strong Wi-Fi coverage. Using a 3/ 16" drill bit, drill a hole and insert a plastic anchor. Insert a screw into the anchor, leaving 1/8" exposed. Slide the controller case over the screw head. Mark a second mounting point, drill and fit the anchor, and fix the controller in place. - Page 10 Mount Your Controller FR Programmateur HPC ou Pro-HC RU Контроллеры HPC и Pro-HC Choisissez un emplacement approprié avec une bonne Выберите подходящее место установки с надежным couverture Wi-Fi. покрытием сети Wi-Fi. À l'aide d'un foret de diamètre 3/ 16" (5 mm), percez un trou et Просверлите...
-
Page 11: Connect Power To Your Controller
Connect Power to Your Controller DE HC-Steuergerät mit Stromquelle verbinden Verbinden Sie den Transformator nicht mit der Stromquelle, bis das Steuergerät montiert und alle Kabel verbunden sind. Entfernen Sie die blaue Abdeckung der Anschlussdose. Führen Sie das Trafokabel durch die Öffnung unten am Steuergerät und schließen die gelben Adern jeweils an eine mit 24 VAC gekennzeichnete Klemme an. - Page 12 Connect Power to Your Controller FR Branchez votre programmateur HC à l'alimentation Passe o cabo do transformador pelo buraco na parte Ne branchez pas le transformateur à la source d'alimentation inferior do controlador, conecte um fio amarelo a cada um tant que le programmateur n'est pas fixé...
-
Page 13: Indoor Pro-Hc Controller
Connect Power to Your Controller DE Pro-HC Steuergerät für den Innenbereich mit Stromquelle verbinden Verbinden Sie den Transformator nicht mit der Stromquelle, bis das Steuergerät montiert und alle Kabel verbunden sind. Öffnen Sie die Bedienfront, um an das Gehäuse des Steuergeräts zu gelangen. - Page 14 Connect Power to Your Controller FR Connectez l'alimentation à votre programmateur Passe o cabo do transformador pelo furo na parte inferior Pro-HC d'intérieur esquerda do controlador, conecte um fio amarelo a cada Ne branchez pas le transformateur à la source d'alimentation parafuso marcado com 24 VCA e o fio verde ao parafuso tant que le programmateur n'est pas fixé...
-
Page 15: Outdoor Hpc And Pro-Hc Controllers
Connect Power to Your Controller Outdoor HPC and Pro-HC Controllers Important: Outdoor HPC and Pro-HC Controllers must be installed by an authorized service technician. Do not plug the transformer into the power source until controller is mounted and all wiring has been connected. Remove the junction box cover, route the cable through the hole on the bottom left of the controller, and attach the cable using the adapter and nut inside the enclosure. - Page 16 Connect Power to Your Controller ES Conecte la Alimentación a sus Programadores HPC y Pro-HC Collegare l'alimentazione ai programmatori HPC e Pro-HC para exteriores ! Importante: I programmatori HPC e Pro-HC devono essere ! Importante: Los Programadores HPC y Pro-HC para exteriores installati da un tecnico specializzato.
- Page 17 Connect Power to Your Controller RU Как подключить к источнику питания контроллеры HPC и Pro-HC для наружного монтажа ! Важно: Установкой контроллеров HPC и Pro-C для наружного монтажа должен заниматься сертифицированный специалист по техническом обслуживанию. Не подключайте трансформатор к источнику питания до...
-
Page 18: Retrofit Your Pro-C Controller
Retrofit Your Pro-C Controller With the HPC-FP Kit Important: Ensure you have a strong Wi-Fi signal. A signal strength of two or three bars is recommended. Wi-Fi connectivity can also be tested on the HPC Controller (signal strength is shown when you select a wireless network). Do not plug the transformer into the power source until the controller is mounted and all wiring has been connected. - Page 19 Retrofit Your Pro-C Controller Ne branchez pas le transformateur à la source d'alimentation Drücken Sie auf die Scharniere seitlich an der HPC-FP Bedienfront, stecken die Stifte in das Gehäuse des tant que le programmateur n'est pas fixé et que tous les Steuergeräts, verbinden das Flachbandkabel mit der neuen branchements ne sont pas effectués.
- Page 20 Retrofit Your Pro-C Controller PT Recupere seu controlador Pro-C com o Kit HPC-FP Совместите выступы петли с боковыми выступами на панели управления HPC-FP и вставьте штифты в петли ! Importante: Certifique-se de ter um sinal Wi-Fi forte. É на контроллере. Затем подсоедините шлейф к новой recomendável que a força do sinal seja de duas ou três barras.
-
Page 21: Home Screen Navigation
Controller Touchscreen Home Screen Navigation ① Touch to view all zones. ② Touch to change controller settings. ③ Touch to view controller status information. Settings ➊ ➋ ④ Go to previous screen (changes not saved). ⑤ Go to Home screen (changes not saved). Zones ➅... - Page 22 Controller Touchscreen ES Pantalla Táctil del Programador Navegación de la Pantalla Programmatore touchscreen Navigazione nella schermata de Inicio Home ① Pulse para ver todas las zonas. ① Toccare per visualizzare tutte le zone. ② Pulse para cambiar los ajustes del programador. ②...
- Page 23 Controller Touchscreen RU Навигация по главному экрану контроллера с сенсорным дисплеем ① Просмотреть все зоны. ② Изменить настройки контроллера. ③ Просмотреть состояние контроллера. ④ Перейти к предыдущему экрану (без сохранения изменений). ⑤ Перейти на главный экран (без сохранения изменений). ➅ СЕРЫМ цветом выделена информация о состоянии. ➆...
-
Page 24: Using The Connection Wizard
Controller Touchscreen ① Touch to change the wireless access point. Wireless Settings ② View wireless connection status. ③ Touch to change the wireless security type. Status ➋ ④ Touch to change the wireless password. Connecting to Hydrawise... When connecting to your wireless network, the Wi-Fi icon at the bottom right of the controller screen will flash. - Page 25 Controller Touchscreen FR Utilisation de l'assistant de connexion ES Uso del Asistente de Conexión En la pantalla de Inicio, pulse el botón Ajustes y luego el botón Sur l'écran d'accueil, appuyez sur le bouton Paramètres, puis sur Inalámbrico. le bouton Sans fil. Seleccione su red inalámbrica en la lista mostrada en la pantalla Sélectionnez votre réseau sans fil dans la liste qui s'affiche sur del programador y pulse el botón Confirmar en la pantalla.
- Page 26 Controller Touchscreen Utilizzo della connessione guidata PT Usando o Assistente de Conexão Nella schermata Home, toccare il pulsante Impostazioni e poi il Na tela inicial, toque no botão Configurações e, em seguida, no pulsante Wireless . botão Sem fio. Selezionare la rete wireless dall'elenco visualizzato sul display del Selecione sua rede sem fio na lista na tela do controlador e programmatore e premere il pulsante Conferma sullo schermo.
- Page 27 Controller Touchscreen RU Работа с мастером подключения TR Bağlantı Sihirbazını Kullanma На главном экране нажмите кнопку Settings («Настройки»), а Ana ekranda Settings (Ayarlar) düğmesine ve ardından Wireless затем — Wireless («Беспроводная сеть»). (Kablosuz) düğmesine dokunun. Выберите свою беспроводную сеть из списка на дисплее Kontrol ünitesinin ekranında gösterilen listeden kablosuz ağınızı...
-
Page 28: Notices
To ensure compliance, operation Hereby, Hunter Industries declares that the radio equipment at closer than this distance is not recommended. The antenna(s) type models HC-601i-E, HC-1201i-E, HPC-401-E, PHC-601-E,... - Page 29 ES Por el presente documento, Hunter Industries declara que los modelos de equipos de tipo radio HC-601i-E, HC-1201i-E, PT A Hunter Industries declara que os modelos do tipo de equipamento de rádio: HC-601i-E, HC-1201i-E, HPC-400-E, HPC-400-E, PHC-601-E, PHC-601i-E, PHC-1201-E, PHC-1201i-E, PHC-2401-E y PHC-2401i-E cumplen con la Directiva 2014/53/UE.
-
Page 30: Notes
Notes hydrawise.com... - Page 31 Notes hunterindustries.com...
- Page 32 Denise Mullikin, President, Landscape Irrigation and Outdoor Lighting HUNTER INDUSTRIES | Built on Innovation® © 2023 Hunter Industries Inc. Hunter, the Hunter logo, and other marks are trademarks of Hunter Industries Inc., registered in the U.S. and certain other 1940 Diamond Street, San Marcos, CA 92078 USA countries.
