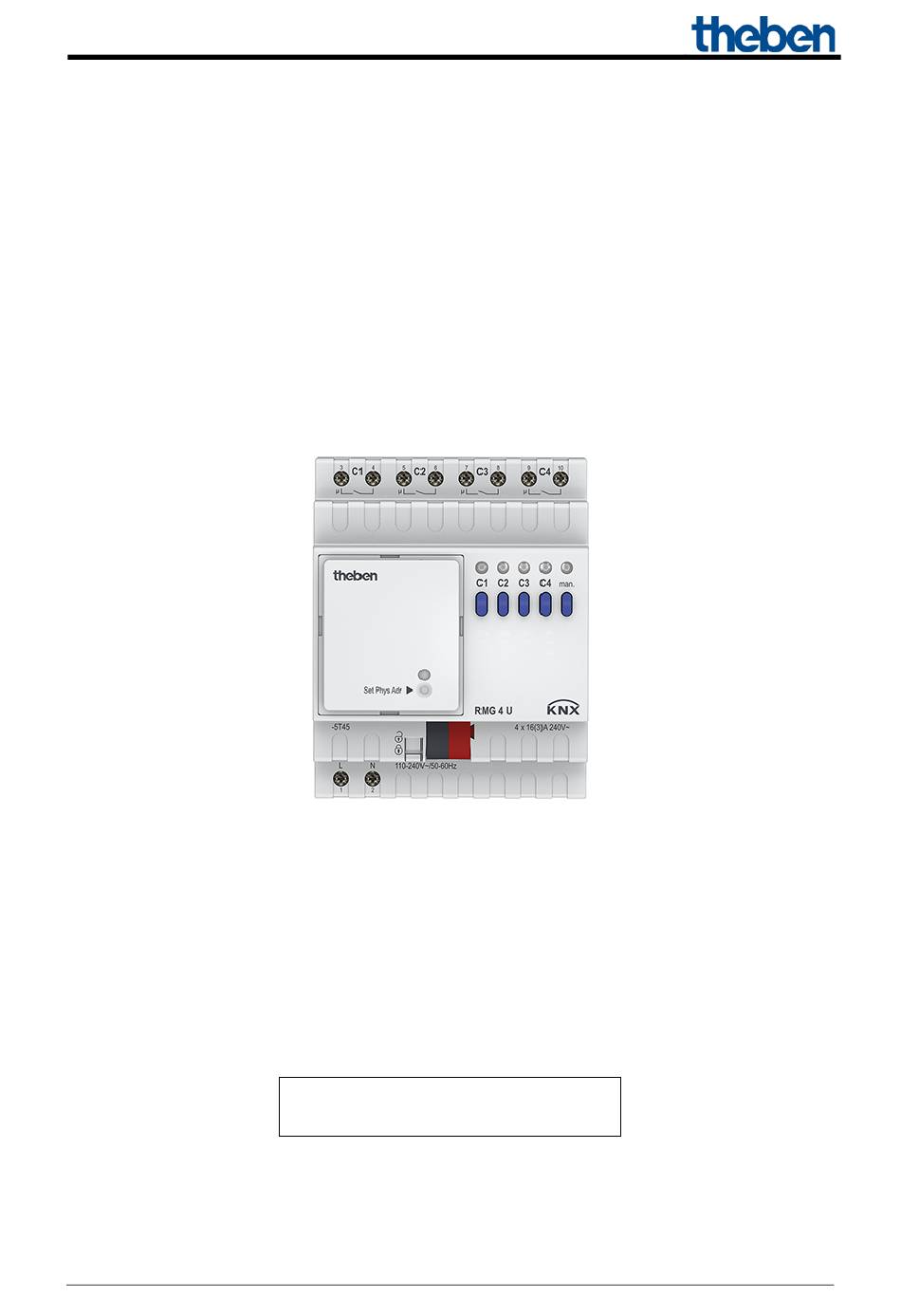

MIX 2 series RMG 4 U / RME 4 U actuators
Updated: Apr-15 (Subject to changes)
MIX 2 series actuators
RMG 4 U / RME 4 U
RMG 4 U
RME 4 U
4930223
4930228
Page 1 of 50

Advertisement

Table of Contents
loading

Related Manuals for Theben MIX 2 Series

Summary of Contents for Theben MIX 2 Series

  • Page 1 MIX 2 series RMG 4 U / RME 4 U actuators MIX 2 series actuators RMG 4 U / RME 4 U RMG 4 U 4930223 RME 4 U 4930228 Updated: Apr-15 (Subject to changes) Page 1 of 50...

  • Page 2: Table Of Contents

    MIX 2 series RMG 4 U / RME 4 U actuators Contents Functional characteristics ....................4 MIX and MIX2 devices ..................... 5 Operation ........................... 6 Technical data ........................7 The application programme "MIX2 V1.8" ..............8 Selection in the product database ................8 Communication objects ...................
  • Page 3 MIX 2 series RMG 4 U / RME 4 U actuators 6.3.2 Overview ......................45 6.3.3 Objects and links ....................45 6.3.4 Important parameter settings ................46 Appendix .......................... 47 The scenes ........................ 47 7.1.1 Principle ....................... 47 7.1.2 Call up or save scenes: ..................48 7.1.3 Teach in scenes without telegrams (MIX2 devices ONLY) ........

  • Page 4: Functional Characteristics

    MIX 2 series RMG 4 U / RME 4 U actuators 1 Functional characteristics • MIX2 4-way switch actuator. • MIX2 basic module. • Can be upgraded to a maximum of 12 channels. • Up to 2 MIX or MIX2 extension modules can be connected to a basic module.

  • Page 5: Mix And Mix2 Devices

    MIX 2 series RMG 4 U / RME 4 U actuators 2 MIX and MIX2 devices The MIX2 series consists of the basic modules RMG 4 I, RMG 4 U, RMG 8 S, RMG 8 T, DMG 2 T, JMG 4 T, JMG 4 T 24V, HMG 6 T, BMG 6 T + extensions RME 4 I, RME 4 U, RME 8 S, RME 8 T, DME 2 T, JME 4 T, JME 4 T 24V, HMG 6 T, BME 6 T (as of 03/2015).

  • Page 6: Operation

    MIX 2 series RMG 4 U / RME 4 U actuators 3 Operation Each channel can be switched on and off independently of all parameters using the buttons on the device. A status LED displays the current switching status. All bus telegrams are ignored with manual operation switched on (manual button) and the channels are exclusively to be operated via the buttons.

  • Page 7: Technical Data

    MIX 2 series RMG 4 U / RME 4 U actuators 4 Technical data Bus voltage, ≤ 4 mA KNX operating voltage Operating voltage 110 – 240 V AC Frequency 50 – 60 Hz Standby output 0.3 W Type of installation...

  • Page 8: The Application Programme "Mix2 V1.8

    MIX 2 series RMG 4 U / RME 4 U actuators 5 The application programme "MIX2 V1.8" 5.1 Selection in the product database Theben AG Manufacturer Product family Output Product type RMG 4 U MIX2 V1.8 Program name The ETS database can be found on our downloads page: www.theben.de/en/downloads_en.

  • Page 9: Communication Objects

    MIX 2 series RMG 4 U / RME 4 U actuators 5.2 Communication objects The objects are divided into channel-related and common objects 5.2.1 Channel-related objects: Table 3: Flags Type Object name Function C R W T 1 bit   ...
  • Page 10 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Flags Type Object name Function C R W T 2 bit    Switching with priority 2,001 1 bit    RMG 4 U channel C1...
  • Page 11 MIX 2 series RMG 4 U / RME 4 U actuators Table 4: Overview of channel-related objects BASIC MODULE: RMG 4 U 1st EXTENSION: RME 4 U 2nd EXTENSION: RME 4 U Updated: Apr-15 (Subject to changes) Page 11 of 50...

  • Page 12: Common Objects

    MIX 2 series RMG 4 U / RME 4 U actuators 5.2.2 Common objects: These objects are partly used by the basic module and the two extension modules. Table 5: Flags Type Object name Function C R W T RMG 4 U 1 bit ...

  • Page 13: Description Of Objects

    MIX 2 series RMG 4 U / RME 4 U actuators 5.2.3 Description of objects • Object 0 "Switch object, threshold as percent, threshold 0..255, threshold EIS 5 (DPT 9.xxx), threshold 0..65535 " This object activates the set channel function (see parameter: Channel function).
  • Page 14 MIX 2 series RMG 4 U / RME 4 U actuators • Object 3 "Call up/save scene" Only available if the scene function has been activated (Configuration options parameter page). This object can be used to save and subsequently call up scenes.
  • Page 15 MIX 2 series RMG 4 U / RME 4 U actuators • Object 8 "Switching with priority, reset service, reset operating hours" The function of the object depends on whether or not the hour counter function has been activated (Configuration options parameter page).
  • Page 16 MIX 2 series RMG 4 U / RME 4 U actuators • Object 240 "Central permanent ON" Central switch-on function. Enables simultaneous switch on of all channels (basic and extension modules) with a single telegram. 0 = No function 1 = Permanent ON Participation in this object can be set individually for each channel (Configuration options parameter page).
  • Page 17 MIX 2 series RMG 4 U / RME 4 U actuators • Object 242 "Central switching" Central switch function. Enables simultaneous switch on or off of all channels (basic and extension modules) with a single telegram. 0 = OFF 1 = ON Participation in this object can be set individually for each channel (Configuration options parameter page).
  • Page 18 MIX 2 series RMG 4 U / RME 4 U actuators • Object 250 "Version of bus coupling unit" For diagnostic purposes only. Sends the bus coupling unit software version after reset or download. Can also be read out via the ETS.
  • Page 19 MIX 2 series RMG 4 U / RME 4 U actuators Possible module codes (as of 03/2015) Module Code Module or mains voltage are unavailable. RMG 8 S RMG 4 I DMG 2 T JMG 4 T/JMG 4 T 24V...

  • Page 20: Parameter

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3 Parameter 5.3.1 Parameter pages Table 7 Function Description General Selection of modules and central parameters. General parameters for the basic module: Collective feedback and relay BASIC MODULE: RMG 4 U switch delay.

  • Page 21: Parameter Description

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2 Parameter description Settings that lead to the display of other pages or functions are identified by .. . Example: Pulse function.. 5.3.2.1 The "General" parameter page Designation Values...
  • Page 22 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Function of manual applies for 24 hours or until Determines how long the device works button (MIX2 series, reset via object manually and how this is ended.

  • Page 23: The "Rmg 4 U Basic Module" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.2 The "RMG 4 U basic module" parameter page Designation Values Description Relay switch delay This parameter sets the minimum delay between switching on 2 relays if several are activated at the same time.

  • Page 24: The "Rmg 4 U Channel Cx: Configuration Options" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.3 The "RMG 4 U channel Cx: Configuration options" parameter page Table 8 Designation Values Description Copy main parameters For channels C2..C4 only. from channel C1 The copy function simplifies the...
  • Page 25 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Participation in central no Central objects are not taken into objects account. at Central switching, Permanent Which central objects are to be taken On, Permanent OFF...

  • Page 26: The "Contact Characteristics" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.4 The "Contact characteristics" parameter page Table 9 Designation Values Description Type of contact NO contact Standard: The relay contact is closed when a switch-on command is issued. NC contact Inverted: The relay contact is opened when a switch-on command is issued.

  • Page 27: The "On/Off Delay" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.5 The "On/Off delay" parameter page This parameter page appears if On/Off delay is chosen as the Channel function. Table 10 Designation Values Description Switch-on delay hours (0..3) 0..3 Input of desired switch-on delay in hours.

  • Page 28: The "Staircase Light With Forewarning Function

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.7 The "Staircase light with forewarning function .." parameter page This parameter page appears if Staircase light with forewarning function is chosen as the Channel function. The user can, anytime, press a push button again, to extend the staircase light time.

  • Page 29: The "Flashing

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.8 The "Flashing.." parameter page This parameter page appears if Flashing is chosen as the Channel function. Table 13 Designation Values Description ON phase of flash pulse hours (0..3) 0..3 Input of desired pulse time (t...

  • Page 30: The "Threshold" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.9 The "Threshold" parameter page This page is shown if the Activation of the function by parameter is set to Exceeding threshold. Table 14 Designation Values Description Type of threshold object Object type: Percent (DPT Value type for threshold.
  • Page 31 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Parameter for threshold object Counter value 0..255 Lower threshold 1..254 Desired threshold. Default value = 127 Example of NO contact with response as switch object = 1: Switches on when: Object value >...

  • Page 32: The "Block Function" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.10 The "Block function" parameter page This page appears when Adjust block function is selected on the Configuration options parameter page. Table 15 Designation Values Description Block telegram Block with ON telegram 0 = Enable...

  • Page 33: The "Scenes" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.11 The "Scenes" parameter page This page appears when the Scenes are activated on the Configuration options parameter page. Each channel can participate in up to 8 scenes. Table 16...
  • Page 34 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Channel reacts to No scene number Second of the 8 possible scene numbers Scene number1 Scene number 2 … Scene number 63 Status after download See above.
  • Page 35 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Status after download See above. Permit teach in See above. Channel reacts to No scene number Seventh of the 8 possible scene numbers Scene number1 …...

  • Page 36: The "Feedback" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.12 The "Feedback" parameter page This page appears when Adjust feedback is selected on the Configuration options parameter page. Table 17 Designation Values Description Reported status Not inverted Channel switched on: feedback object...

  • Page 37: The "Hour Counter And Service" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.13 The "Hour counter and service" parameter page This page appears when Activate hour counter is selected on the Configuration options parameter page. Table 18 Designation Values Description Type of hour counter Hour counter Forward counter for duty cycle of the channel.
  • Page 38 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Designation Values Description Time for cyclical 2 minutes, 3 minutes, At what interval? transmission (time to 5 minutes, 10 minutes, service and service 15 minutes, 20 minutes, 30 minutes, 45 minutes...

  • Page 39: The "Link" Parameter Page

    MIX 2 series RMG 4 U / RME 4 U actuators 5.3.2.14 The "Link" parameter page This page appears when Activate link is selected on the Configuration options parameter page. An additional object appears, which forms a logical link in combination with the channel's switching/threshold object.

  • Page 40: Typical Applications

    MIX 2 series RMG 4 U / RME 4 U actuators 6 Typical applications These typical applications are designed to aid planning and are not to be considered an exhaustive list. It can be extended and updated as required. 6.1 2x switching with push button interface 2 push buttons are connected to a TA 2 push button interface and they control 2 channels of the RMG 4 U.

  • Page 41: Important Parameter Settings

    MIX 2 series RMG 4 U / RME 4 U actuators 6.1.4 Important parameter settings Standard or customer-defined parameter settings apply for unlisted parameters. Table 21: TA 2 Parameter page Parameter Setting Channel 1 Channel function Switch/push button Object type...

  • Page 42: Switching Light With Service Counter And Display

    MIX 2 series RMG 4 U / RME 4 U actuators 6.2 Switching light with service counter and display A fluorescent light strip in a hall is controlled by channel C1. The lamps have to be replaced after 20,000 hours (= service).

  • Page 43: Objects And Links

    MIX 2 series RMG 4 U / RME 4 U actuators 6.2.3 Objects and links Table 23 KNX sensor RMG 4 U Comment Object name Object name Any KNX sensor: Push button, time switch, twilight switch, etc. (Switching object) Switch object...

  • Page 44: Important Parameter Settings

    MIX 2 series RMG 4 U / RME 4 U actuators 6.2.4 Important parameter settings Standard or customer-defined parameter settings apply for unlisted parameters. Table 25: RMG 4 U Parameter page Parameter Setting General Type of basic module RMG 4 U...

  • Page 45: Simple Warning Function With Flashing Light

    MIX 2 series RMG 4 U / RME 4 U actuators 6.3 Simple warning function with flashing light A monitoring device, e.g. flood alarm is connected to a TA 2 push button interface, and it controls a channel of the RMG 4 U.

  • Page 46: Important Parameter Settings

    MIX 2 series RMG 4 U / RME 4 U actuators 6.3.4 Important parameter settings Standard or customer-defined parameter settings apply for unlisted parameters. Table 28: TA 2 Parameter page Parameter Setting Channel 1 Channel function Switch/push button Object type...

  • Page 47: Appendix

    MIX 2 series RMG 4 U / RME 4 U actuators 7 Appendix 7.1 The scenes 7.1.1 Principle The current status of a channel, or a complete MIX system can be stored and retrieved as required at a later point via the scene function.

  • Page 48: Call Up Or Save Scenes

    MIX 2 series RMG 4 U / RME 4 U actuators 7.1.2 Call up or save scenes: To call up or save a scene, the relevant code is sent to the scene object (obj. 243). Table 31 Call up Save Scene Hex.
  • Page 49 MIX 2 series RMG 4 U / RME 4 U actuators Continuation: Call up Save Scene Dec. Dec. Examples (central or channel-related): Calling status of scene 5: → Send $04 to the relevant scene object. Save current status with scene 5: →...

  • Page 50: Teach In Scenes Without Telegrams (Mix2 Devices Only)

    MIX 2 series RMG 4 U / RME 4 U actuators 7.1.3 Teach in scenes without telegrams (MIX2 devices ONLY) Instead of defining scenes individually by telegram, this can be done in advance in the ETS. This merely requires the setting of the All channel scene statuses (Scenes parameter page) to Overwrite at download.
