Theben RM 4 H FIX1 Manual

Theben RM 4 H FIX1 Manual

High-performance switch actuators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KNX manual
High-performance switch actuators
RM 4 H FIX1
RM 8 H FIX2
4940212
4940217
2018-07-30

Advertisement

Table of Contents
loading

Related Manuals for Theben RM 4 H FIX1

Summary of Contents for Theben RM 4 H FIX1

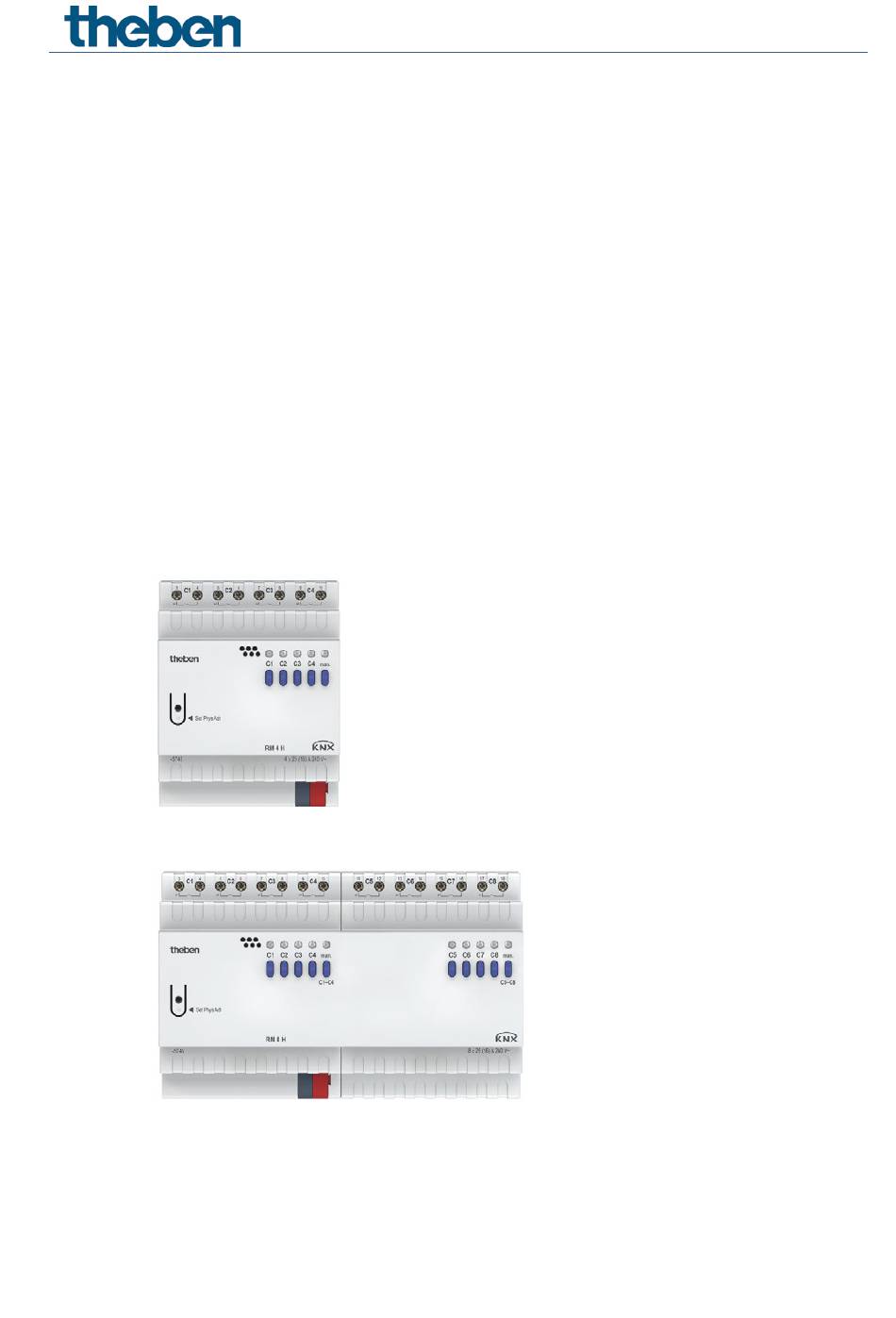

  • Page 1 KNX manual High-performance switch actuators RM 4 H FIX1 RM 8 H FIX2 4940212 4940217 2018-07-30...

  • Page 2: Table Of Contents

    Contents Function description Operation Technical data The FIX2 RM 8 H application programme Selection in the product database Overview of communication objects Description of communication objects Parameter pages overview General parameters Typical applications 2x switching with push button interface Temperature-controlled domestic water heating Appendix The scenes Conversion of percentages to hexadecimal and decimal values...

  • Page 3: Function Description

    1 Function description • 4-fold FIX1 or 8-fold FIX2 switch actuator. • Up to 25 A switching current. • Connection cross-section up to a maximum of 6 mm • Energy-saving thanks to bistable relay. • No power connection required. • LED switching status indicator for each channel.

  • Page 4: Operation

    2 Operation Each channel can be switched on and off independently of all parameters using the buttons on the device. A status LED displays the current switching status. All bus telegrams are ignored with manual operation switched on (manual button) and the channels are to be operated exclusively via the buttons.

  • Page 5: Technical Data

    3 Technical data KNX bus voltage 21 – 32 V DC Typical: 6.5 mA , 10 mA KNX bus power input Maximum: 12.5 mA , 17.5 mA Number of channels 4 or 8 Type of installation DIN-rail Width 4 TE or 8 TE Connection type KNX bus terminal, screw terminals...
  • Page 6 Fluorescent lamps (LLB) uncompensated/series 5000 VA compensated Fluorescent lamps (LLB) parallel compensated 2500 W, 200 μF Fluorescent lamps (EVB) 1650 W Compact fluorescent lamps (EVG) 410 W LED lamps < 2 W 75 W LED lamps 2 W – 8 W 850 W Pollution degree Rated impulse voltage...

  • Page 7: The Fix2 Rm 8 H Application Programme

    4 The FIX2 RM 8 H application programme 4.1 Selection in the product database Manufacturer Theben AG Product family Output Product type RM 4 H, RM 8 H Programme name FIX2 RM 8 H Number of communication objects 83 Number of group addresses Number of associations ...

  • Page 8: Overview Of Communication Objects

    4.2 Overview of communication objects 4.2.1 Channel-related objects No. Object name Function Length R W C T DPT Switch object 1 bit R W C - 1.001 Threshold as a percentage 1 byte R W C - 5.001 Channel C1 Threshold 0..255 1 byte R W C - 5.010...
  • Page 9 4.2.2 Common objects No. Object name Function Length R W C T DPT 78 C1 – C4 Manual 1 bit R W C T 1.001 79 C1 – C4 Collective feedback 4 bytes C T 27.001 158 C5 – C8 Manual 1 bit R W C T 1.001...

  • Page 10: Description Of Communication Objects

    4.3 Description of communication objects 4.3.1 Channel-related objects Object 0 Switch object, threshold as a percentage, threshold 0..255, threshold EIS 5 (DPT 9.xxx), threshold 0..65535 Input object: this object activates the set channel function (see parameter: Channel function). The set channel function can either be activated via 1-bit telegram or by exceeding a threshold (8- or 16-bit telegram).
  • Page 11 Object 4: Block scenes = 1, enable scenes = 1 Blocks the scene function with a 1 or a 0 depending on the configuration. As long as it is blocked, scenes cannot be saved or called up. Object 5: On/Off feedback Reports the current channel status.
  • Page 12 4.3.2 Common objects Objects 78, 158: Manual Puts the corresponding channel block (C1 – C4 or C5 – C8) in manual mode or sends the status of the manual operation. Telegram Meaning Explanation Auto All channels can be operated via the bus as well as via the buttons. The channels can only be operated via the buttons on the device.
  • Page 13 Object 242: Central switching Central switch function. Enables simultaneous switching on or off of all channels with one single telegram. 0 = OFF 1 = ON Participation in this object can be set individually for each channel (Configuration options parameter page). With this object, every participating channel responds exactly as if its input object were receiving a switch command.
  • Page 14 Object 251: Version C1 – C4 For diagnostic purposes only. Sends the software version (firmware) of the channel block C1 – C4 after reset or download. Can also be read out directly via the ETS. The version is issued as an ASCII character string. Format: Mxx Hyy Vzzz Code Meaning 19 = Module code RM 4 H / RM 8 H (hexadecimal).

  • Page 15: Parameter Pages Overview

    4.4 Parameter pages overview Parameter page Description General General parameters: Collective feedback and relay switch delay. Channel C1 Characteristics of channel and activation of additional functions Configuration options (scenes, links, etc.). Contact Type of contact and status after download, bus failure, etc. characteristics Threshold Settings for triggering channel function through exceeding threshold.

  • Page 16: General Parameters

    4.5 General parameters General 4.5.1 Designation Values Description Device type RM 4 H 4-channel device FIX1 RM 8 H 8-channel device FIX2 Function of the applies for 24 hours or Determines how long the device works manually and manual button until reset via object how this is ended.
  • Page 17 Designation Values Description None There is no added delay. 60 ms When a relay switches on, the next one can only 100 ms switch on after the set delay is completed. 200 ms The switch-on delay between the first and last relay is calculated according to the following formula: (Number of channels –...
  • Page 18 Channel C1: Configuration options 4.5.2 A configurable copying function is not incorporated into the design. The ETS offers convenient and extensive copying functions via the CTRL key. Designation Values Description Switching On/Off.. Channel function Determines the basic On/off delay.. functionality of the Pulse function..
  • Page 19 Designation Values Description at Central switching, Which central objects Permanent On, Permanent are to be taken into account? only in central permanent Central objects enable only in central permanent simultaneous switching on and off only in Central switching of several channels only in Central switching with one single object.
  • Page 20 Contact characteristics 4.5.3 Designation Values Description Type of contact NO contact Standard: The relay contact is closed when a switch- on command is issued. NC contact Inverted: The relay contact is opened when a switch- on command is issued. Status with download and After download or with bus voltage bus failure failure…...
  • Page 21 The “On/off delay” time function 4.5.4 This parameter page appears if On/Off delay is chosen as the Channel function. Designation Values Description Switch-on delay 0..3 Hours Input of desired switch-on delay in hours. Minutes 0..60 Input of desired switch-on delay in minutes.
  • Page 22 The “Pulse” time function 4.5.5 This parameter page appears if Pulse function is chosen as the Channel function. Designation Values Description Hours 0..3 Input of desired pulse duration in hours. Minutes 0..60 Input of desired pulse duration in minutes. 0..255 Seconds Input of desired pulse duration in seconds.
  • Page 23 The “Staircase light with forewarning function” time function 4.5.6 This parameter page appears if Staircase light with forewarning function is chosen as the Channel function. The user can press a button again to extend the staircase light time at any time. Designation Values Description...
  • Page 24 The “Flashing” time function 4.5.7 This parameter page appears if Flashing is chosen as the Channel function. Designation Values Description ON phase of flash pulse 0..3 Hours Input of desired pulse time in hours. Minutes 0..60 Input of desired pulse time in minutes.
  • Page 25 Threshold 4.5.8 This page is shown if the Activation of the function by exceeding threshold parameter is set. Designation Values Description Type of threshold object Object type: Per cent Threshold format (DPT 5.001) Counter value 0..255 (DPT 5.010) Counter value 0..65535 (DPT 7.001) Floating point value DPT9, e.g.
  • Page 26 Designation Values Description Threshold 1..65534 Desired threshold. Default value = 1000 Example of NO contact with response as switch object = 1: Switches on when: Object value > threshold Switches off when: Object value < threshold - hysteresis Hysteresis 1..65534 The hysteresis prevents frequent switching Default value = 5 after small fluctuations in readings.
  • Page 27 Block function 4.5.9 This page appears when Adjust block function is selected on the Configuration options parameter page. Designation Values Description Block telegram Block with ON telegram 0 = cancel block 1 = block Block with OFF telegram 0 = block 1 = cancel block Note: The block is always deactivated after reset.
  • Page 28 Scenes 4.5.10 This page appears when the Scenes are activated on the Configuration options parameter page. Each channel can participate in up to 8 scenes. Designation Values Description Block telegram for scenes Block with ON 0 = cancel block telegram 1 = block Block with OFF 0 = block...
  • Page 29 Designation Values Description Status after download See above. Permit teach-in See above. Channel reacts to No scene number Third of the 8 possible scene Scene number 1 numbers … Scene number 3 … Scene number 63 Status after download See above. Permit teach-in See above.
  • Page 30 Designation Values Description Channel reacts to No scene number Seventh of the 8 possible scene Scene number 1 numbers … Scene number 7 … Scene number 63 Status after download See above. Permit teach-in See above. Channel reacts to No scene number Last of the 8 possible scene numbers Scene number 1 …...
  • Page 31 Feedback 4.5.11 Designation Values Description Reported status Not inverted Channel switched on: feedback object sends a inverted Channel switched on: feedback object sends a Transmit feedback cyclically Send at regular intervals? Time for cyclical transmission 2 minutes, 3 minutes, At what interval? of feedback 5 minutes, 10 minutes, 15 minutes, 20 minutes,...
  • Page 32 Hour counter and service 4.5.12 This page appears when Activate hour counter is selected on the Configuration options parameter page. Designation Values Description Type of hour counter Hour counter Forward counter for channel duty cycle. Counter for time period Backward counter for channel before next service duty cycle.
  • Page 33 Link 4.5.13 Designation Values Description Activate link Selection of logical link with the channel object AND link The Logic input in AND gate object appears. OR link (override) The Logic input in OR gate object appears. XOR link The Logic input in XOR gate object appears.

  • Page 34: Typical Applications

    5 Typical applications These typical applications are designed to aid planning and are not to be considered an exhaustive list. It can be extended and updated as required. 5.1 2x switching with push button interface 2 push buttons are connected to a TA 2 S push button interface and they control 2 channels on the RM 4 H.
  • Page 35 Important parameter settings 5.1.4 Standard or customer-defined parameter settings apply to unlisted parameters. TA 2 S: Parameter page Parameter Setting Channel 1 Activate channel 1 Channel 1 function Push button Button object 1 Object type Switching (1 bit) Send after short operation Send telegram Value Change over Send after long operation...

  • Page 36: Temperature-Controlled Domestic Water Heating

    5.2 Temperature-controlled domestic water heating Task: The domestic water temperature must be maintained at a minimum of 50 °C using a heating element. The water temperature is measured using a remote sensor (e.g. order no. 9070321). The sensor is connected to a TA 4 S input and the temperature value is sent to the bus. Channel C1 receives the domestic water temperature via a threshold object and switches the heating element to relay output.
  • Page 37 Important parameter settings 5.2.4 Standard or customer-defined parameter settings apply to unlisted parameters. TA 4 S: Parameter page Parameter Setting Channel 3 Activate channel 3 Temperature input Channel 3 function Temperature input Sensor type Floor sensor (9070321) Transmit temperature in the event of change of RM 4 H, channel C1: Parameter page Parameter...

  • Page 38: Appendix

    6 Appendix 6.1 The scenes 6.1.1 Principle The current status of a channel, or a complete device can be stored and retrieved later at any time via the scene function. Each channel can participate simultaneously in up to 8 scenes. Scene numbers 1 to 64 are permitted.
  • Page 39 6.1.2 Calling up or saving scenes: To call up or save a scene, the relevant code is sent to the corresponding scene object. Call up Save Scenario Hex. Dec. Hex. Dec. Switch actuators RM 4 H, RM 8 H...
  • Page 40 Call up Save Scenario Hex. Dec. Hex. Dec. Examples (central or channel-related): Call up status of scene 5: → Send $04 to the relevant scene object. Save current status with scene 5: → Send $84 to the relevant scene object. Switch actuators RM 4 H, RM 8 H...

  • Page 41: Conversion Of Percentages To Hexadecimal And Decimal Values

    6.1.3 Teach-in scenes without telegrams Instead of defining scenes individually by telegram, this can be done in advance in the ETS. This merely requires setting the All channel scene statuses parameter (Scenes parameter page) to overwrite at download. Accordingly, the required status can be selected for each of the 8 possible scene numbers in a channel (= Status after download parameter).
