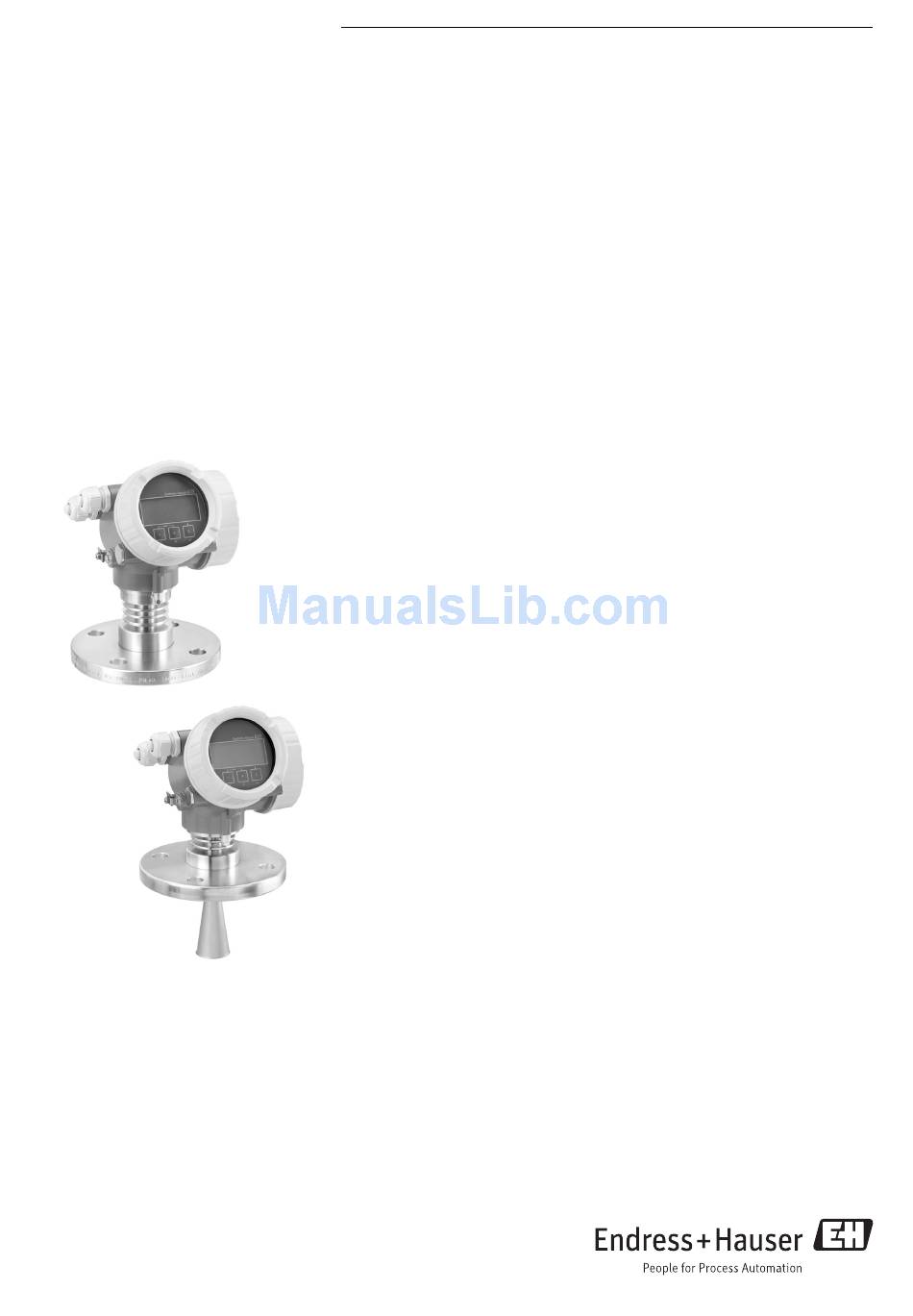

TI01040F/00/EN/03.13
71224353
Products

Technical Information

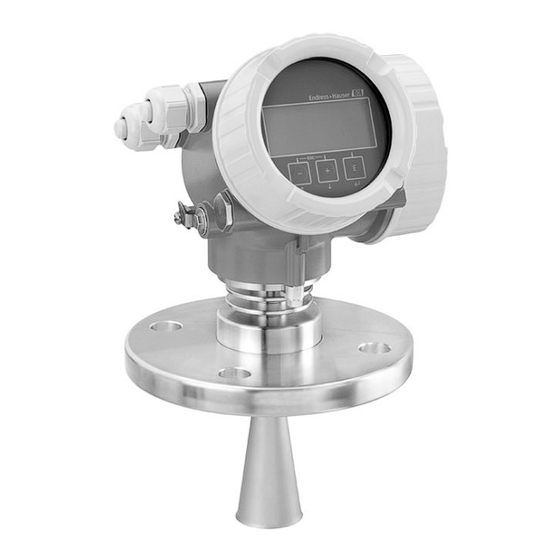

Micropilot FMR51, FMR52
Level radar
Level measurement in liquids
Application
Continuous, non-contact level measurement of liquids, pastes and slurries
Features FMR51:
• Level measurement under extreme conditions
• Maximum measuring range: 40 m (131 ft); for version with enhanced dynamics:
70 m (230 ft)
• Process connection: 1½" thread/Tri-Clamp/flange
• Temp. range: –196 to +450 °C (–321 to +842 °F)
• Pressure range: –1 to +160 bar (–14.5 to +2 320 psi)
• Accuracy: ±2 mm
Features FMR52:
• For aggressive media as well as for highest hygiene requirements
(ASME BPE, USP Class VI)
• Flush mounted, completely filled PTFE horn antenna
• Maximum measuring range: 40 m (131 ft); for version with enhanced dynamics:
60 m (197 ft)
• Flush mounted with cladded flange; or process connections for hygiene
requirements (Tri-Clamp, ...)
• Temp. range: –40 to +200 °C (–40 to +392 °F)
• Pressure range: –1 to +16 bar (–14.5 to +232 psi)
• Accuracy: ±2 mm
Your benefits
• Reliable even under changing product and process conditions
• Integrated data memory (HistoROM) for high availability
• Intuitive operating menu in national languages for easy commissioning
• Exact diagnostic and process information
• International approvals for use in hazardous areas
• 5-point linearity protocol
• WHG and marine approvals
• SIL2 according to IEC 61508, SIL3 in case of homogeneous or heterogeneous
redundancy
• System integration via HART/PROFIBUS PA (Profile 3.02)/FOUNDATION Fieldbus
