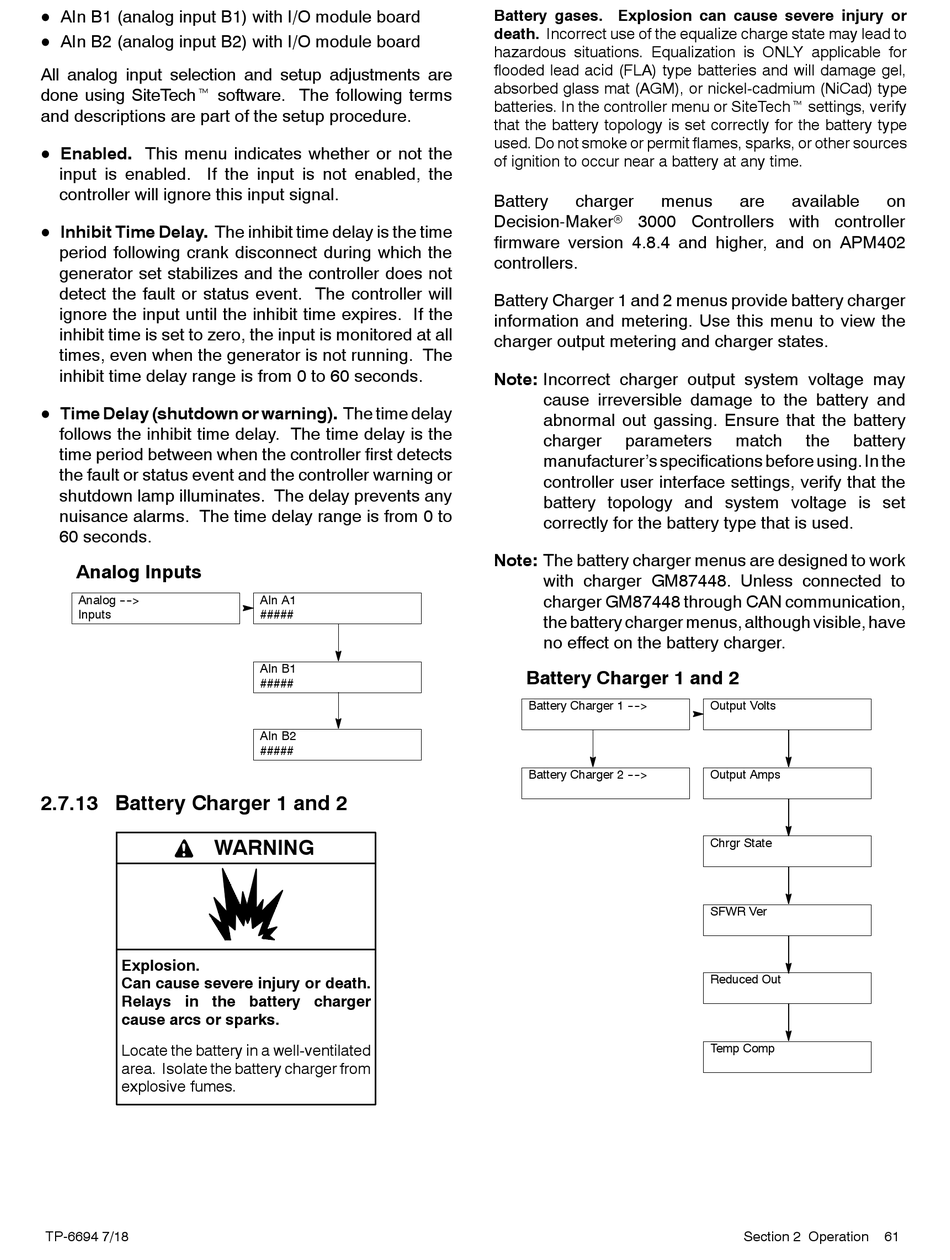

AIn B1 (analog input B1) with I/O module board
D
AIn B2 (analog input B2) with I/O module board
D
All analog input selection and setup adjustments are
done using SiteTecht software. The following terms
and descriptions are part of the setup procedure.
Enabled. This menu indicates whether or not the
D
input is enabled. If the input is not enabled, the
controller will ignore this input signal.
Inhibit Time Delay. The inhibit time delay is the time
D
period following crank disconnect during which the
generator set stabilizes and the controller does not
detect the fault or status event. The controller will
ignore the input until the inhibit time expires. If the
inhibit time is set to zero, the input is monitored at all
times, even when the generator is not running. The
inhibit time delay range is from 0 to 60 seconds.
Time Delay (shutdown or warning). The time delay
D
follows the inhibit time delay. The time delay is the
time period between when the controller first detects
the fault or status event and the controller warning or
shutdown lamp illuminates. The delay prevents any
nuisance alarms. The time delay range is from 0 to
60 seconds.
Analog Inputs
Analog ---->
Inputs

2.7.13 Battery Charger 1 and 2

WARNING
Explosion.
Can cause severe injury or death.
Relays in the battery charger
cause arcs or sparks.
Locate the battery in a well-ventilated
area. Isolate the battery charger from
explosive fumes.
TP-6694 7/18
AIn A1
#####
AIn B1
#####
AIn B2
#####
Battery gases. Explosion can cause severe injury or
death. Incorrect use of the equalize charge state may lead to
hazardous situations. Equalization is ONLY applicable for
flooded lead acid (FLA) type batteries and will damage gel,
absorbed glass mat (AGM), or nickel-cadmium (NiCad) type
batteries. In the controller menu or SiteTecht settings, verify
that the battery topology is set correctly for the battery type
used. Do not smoke or permit flames, sparks, or other sources
of ignition to occur near a battery at any time.
Battery charger menus
Decision-Makerr 3000 Controllers with controller
firmware version 4.8.4 and higher, and on APM402
controllers.
Battery Charger 1 and 2 menus provide battery charger
information and metering. Use this menu to view the
charger output metering and charger states.
Note: Incorrect charger output system voltage may
cause irreversible damage to the battery and
abnormal out gassing. Ensure that the battery
charger parameters
manufacturer's specifications before using. In the
controller user interface settings, verify that the
battery topology and system voltage is set
correctly for the battery type that is used.
Note: The battery charger menus are designed to work
with charger GM87448. Unless connected to
charger GM87448 through CAN communication,
the battery charger menus, although visible, have
no effect on the battery charger.
Battery Charger 1 and 2
Battery Charger 1 ---->
Battery Charger 2 ---->
are available on
match the battery
Output Volts
Output Amps
Chrgr State
SFWR Ver
Reduced Out
Temp Comp
Section 2 Operation 61
