Digimerge DCV54DL Quick Start Manual

Contents

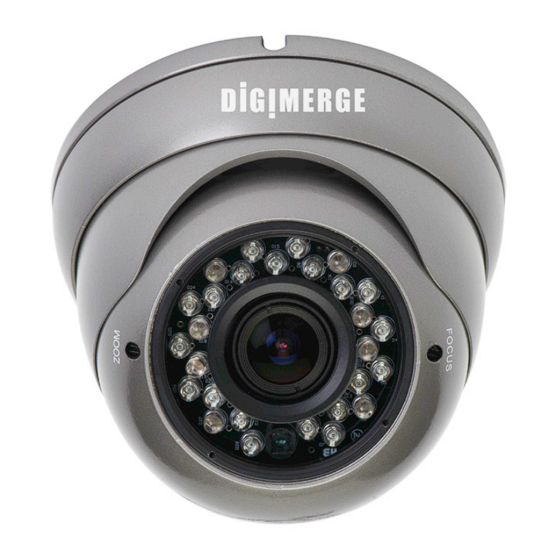

1 x Weatherproof IR Dome
Camera with Varifocal Lens
4 x Mounting Screws
2 x Rubber Weatherproofing Plugs
WARNING - A REGULATED UL / CSA APPROVED 12V DC / 24V AC
power supply is REQUIRED for use with this camera. Use of a non-
regulated, non-conforming power supply can damage this product and
voids the warranty.
Features
• 1/3" Sony EX-View™ II 960H with Effio DSP / 700+TVL
• Superior Low Light Sensitivity
• Advanced Digital Noise Reduction*
• 100ft (31m) IR Night Vision Range**
• 2.8–12mm Varifocal Lens
• External Zoom / Focus Adjustment
• IP66 Weatherproof Rating***
• 3-Axis Design for Wall / Ceiling Mounting
• Vandal Resistant
• 12V DC / 24V AC Operation
* Default setting
** IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application
*** Not recommended for submersion in water

Safety Precautions

• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
IT'S ALL ON THE WEB!
Product Information
Specification Sheets
Quick Start Guides
User Manuals
Latest News Video Tutorials & Demos
Ultra Resolution,
Outstanding Value Cameras
Ultra Resolution Cameras
with Advanced Features
Fully Connected DVR's
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2012
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE
700+ TVL
VARIFOCAL IR DOME CAMERA
MODEL: DCV54DL

QUICK START GUIDE

English Version 1.0
