4. Camera Specifications
Specifications:
Image Sensor 1/3" Color CCD
Horizontal Res. 480 TV lines
# Effective Pixels 768 (H) x 494 (V) (380K)
Sync. System Internal Sync.
S/N Ratio 45dB (AGC Off)
Electronic Shutter 1/60 ~ 1/10,000 Sec.
Illumination 0 Lux (LED on)
IR Distance 50 ft. / 15 m.
Lens Varifocal (4 - 9 mm)
Video Output 1.0Vp-p @ 75 ohms
LED 19 LEDs
Power Requirement 12V DC / 24V AC
°
14 F ~ 122
Operating Temp
°
(-10 ~ 50
°
Storage Temp -4 F ~ 140
°
(-20 ~ 60
Dimension 3.5" (H) x 5" (D)
90mm (H) x 125mm (D)
Dimensions:
It's all on the web
Product Information
User Manuals
Quick Start Guides
°
F
°C)
°
F
°C)
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2007 Digimerge Technologies Inc.
As our products are subject to continuous improve-
ment, Digimerge reserves the right to modify product
design, specifications and prices, without notice and
without incurring any obligation. E&OE
HI-RES VANDAL RESISTANT COLOR
Specification Sheets
Software Upgrades
Firmware Upgrades

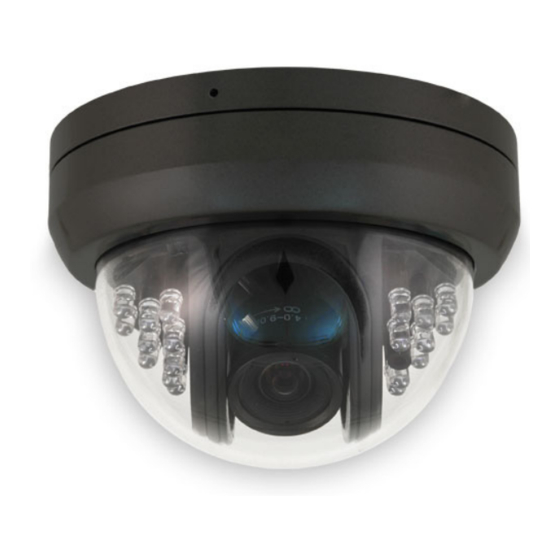

IR DAY/NIGHT DOME CAMERA
WITH VARI-FOCAL LENS
Model: DCDHR2532
Quick Set-up Guide
