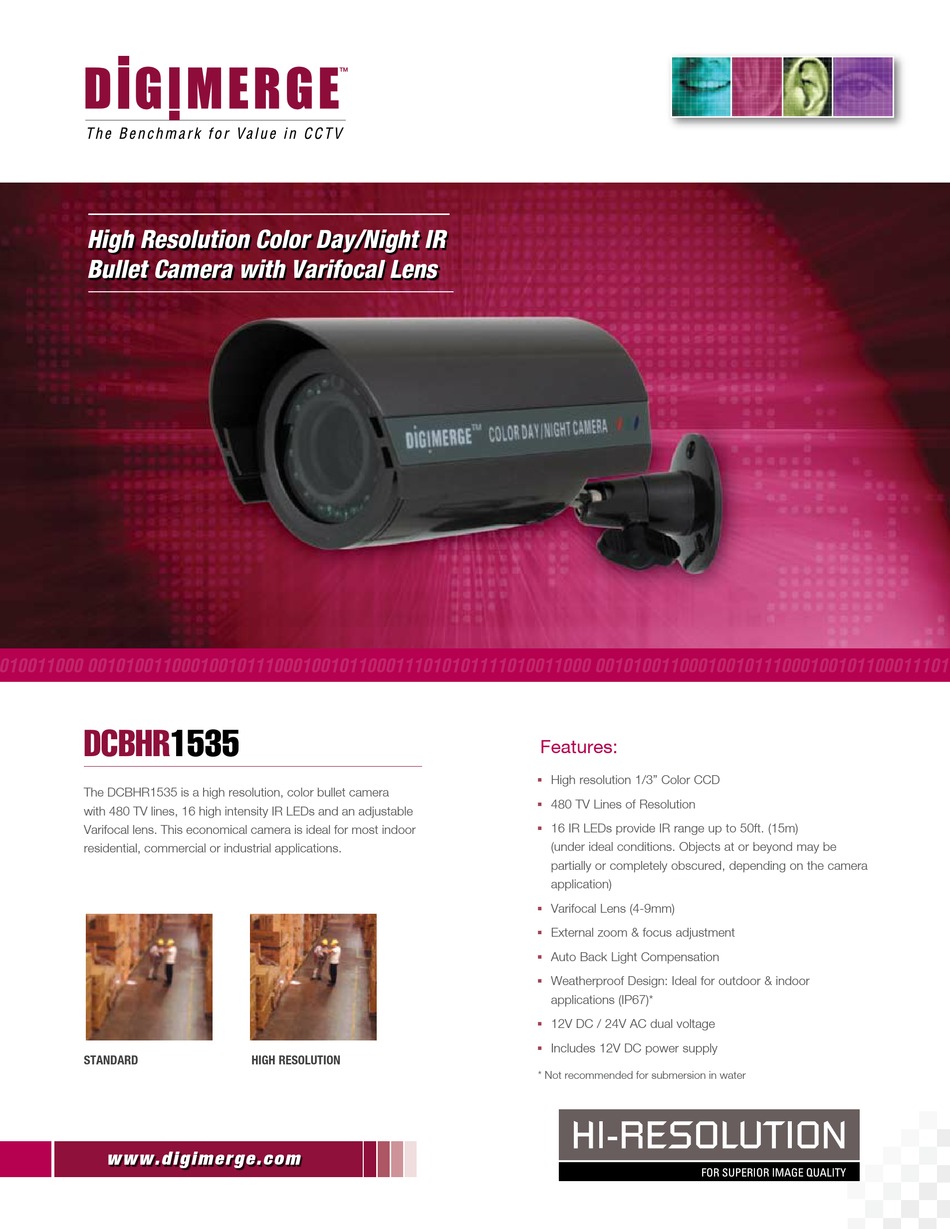

Digimerge DCBHR1535 Specifications

High Resolution Color Day/Night IR
Bullet Camera with Varifocal Lens
010011000 001010011000100101110001001011000111010101111010011000 001010011000100101110001001011000111010
DCBHR1535

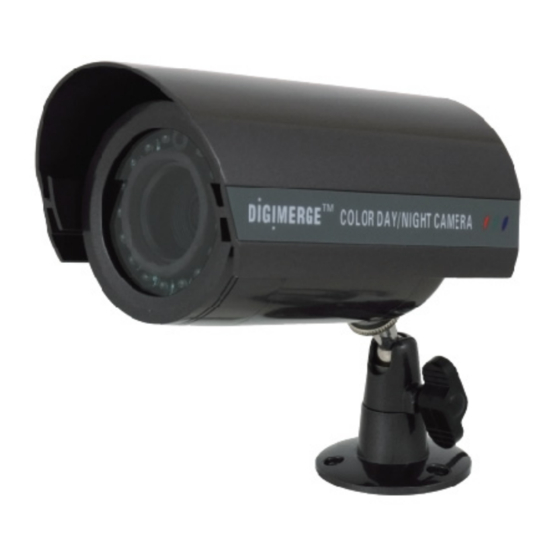

The DCBHR1535 is a high resolution, color bullet camera
with 480 TV lines, 16 high intensity IR LEDs and an adjustable
Varifocal lens. This economical camera is ideal for most indoor
residential, commercial or industrial applications.
STANDARD
w w w . d ig i merg e.co m
HIGH RESOLUTION
Features:
High resolution 1/3" Color CCD
ß
480 TV Lines of Resolution
ß
ß 16 IR LEDs provide IR range up to 50ft. (15m)
(under ideal conditions. Objects at or beyond may be
partially or completely obscured, depending on the camera
application)
ß Varifocal Lens (4-9mm)
External zoom & focus adjustment
ß
Auto Back Light Compensation
ß
Weatherproof Design: Ideal for outdoor & indoor
ß
applications (IP67)*
12V DC / 24V AC dual voltage
ß
Includes 12V DC power supply
ß
* Not recommended for submersion in water
