Digimerge DCBHR1535 Quick Setup Manual

4. Camera Specifications
Specifications:
Image Sensor Hi-Res 1/3" Color CCD
Lens Varifocal 4~9mm
Horizontal Res. 480 TV lines
# Effective Pixels 768 (H) x 494 (V) (380K)
Sync. System Internal Sync.
S/N Ratio 45 dB (AGC Off)
Electronic Shutter 1/60 ~ 1/10,000 Sec.
LED 16 LED
Illumination 0 Lux (LED on)
IR Distance 50 ft. / 15 m.
Video Output 1.0Vp-p @ 75 ohms
Power Requirement 12V DC / 24V AC
14°F ~ 122°F
Operating Temp
(-10°~ 50°C)
Storage Temp -4°F ~ 140°F
(-20°~ 60°C)
Dimension 3" x 5.3" x 4.7"
(W x D x H) 77mm x 134mm x 118mm
Dimensions:
It's all on the web
Specification Sheets
Product Information
Software Upgrades
User Manuals
Firmware Upgrades
Quick Start Guides
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2007 Digimerge Technologies Inc.
As our products are subject to continuous improve-
ment, Digimerge reserves the right to modify product
design, specifications and prices, without notice and
without incurring any obligation. E&OE

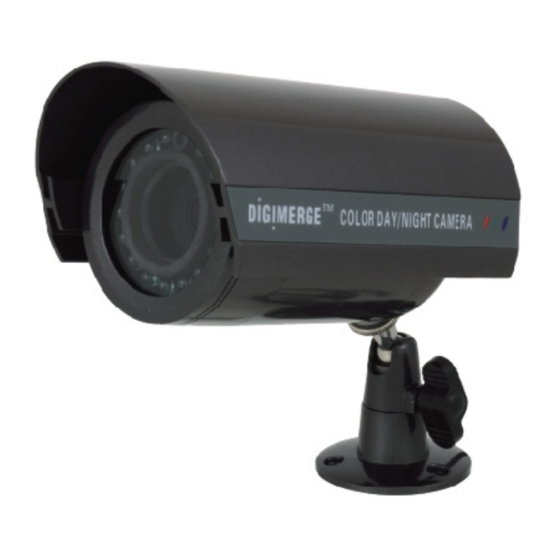

HIGH RESOLUTION COLOR
DAY/NIGHT IR BULLET
CAMERA
with Varifocal Lens
Model: DCBHR1535
Quick Set-up Guide
