Summary of Contents for Digimerge DPV24D

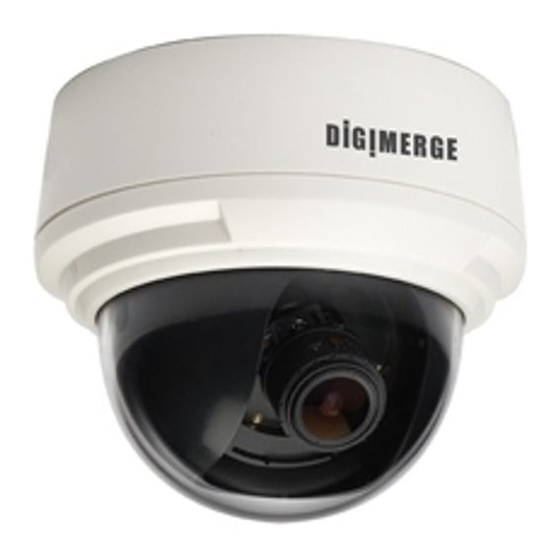

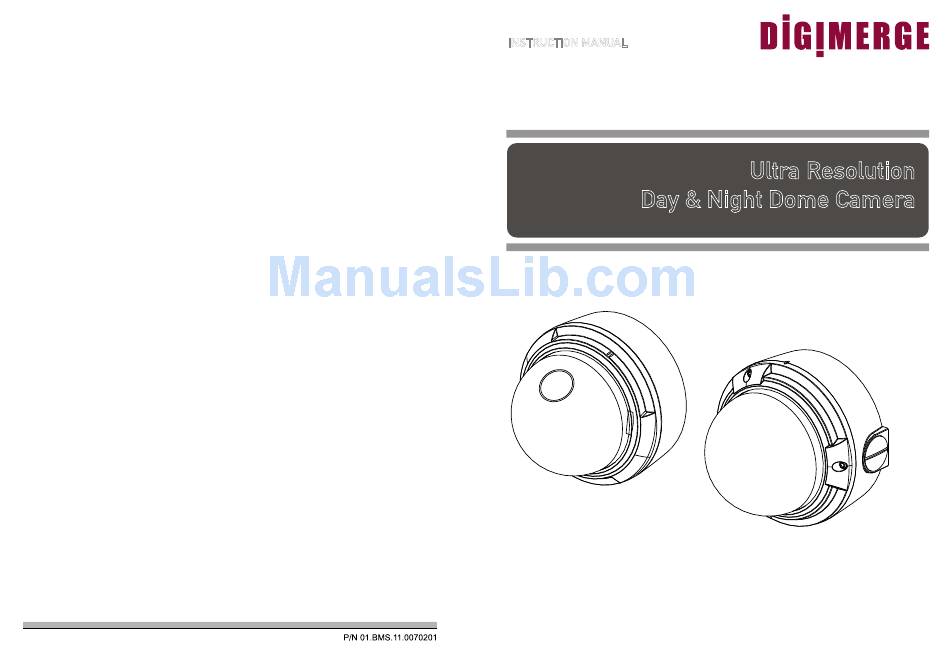

- Page 1 INSTRUCTION MANUAL Ultra Resolution Day & Night Dome Camera Ultra Resolution Vandal Models: DPV24D / DPV24TLX Day & Night Dome Camera Indoor Models: DPD23D / DPD24D V2.0 Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 3: Specifications
INTRODUCTION Features All Models Feature: DPD24D • 1/3” Sony Super HAD™ II CCD • Indoor Dome Model • Excellent low light performance using • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris Polaris Vision 2 technology. • 0.15 Lux / F1.2 (Color) DPV24D 0.001 Lux w/Sense-Up at x256 • 600 TV lines(Color) of resolution • Vandal Resistant Dome Model • 3D Digital Noise Reduction (3D-DNR) • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris • OSD menu control • Privacy Masking / Motion Detection DPV24TLX • VIDEO OUT(BNC) • Operates in 12VDC or 24VAC • Vandal Resistant Dome Model • Test Monitor Output • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris... -
Page 4: Packing Contents
MEASUREMENTS PACKING CONTENTS 97.0 mm Indoor Dome package contains the following: 3.82 in Camera in housing ---------------------------------1 Camera Locking screw (PM3 Type) ------------1 Instruction guide (This Document) -------------1 Surface & Flush Mounting Template -----------1 PM3 Locking Conduit Star Shape 112 mm Screw RCA - BNC test cable ------------------------------1 4.4 in... -
Page 5: Junction Box Installation Types
JUNCTION BOX INSTALLATION TYPES VANDAL DOME FITTINGS a. 2S Fitting requires only 2pcs of base Screws attachment screws. Note: You have a reduced space in which to hide cables using this type of installation. Recommended for indoor dome only. Cable Entry Pendant Cap - model # MNTV2XPC Replaces the need for the camera base. -
Page 6: Installation. Vandal Dome
INSTALLATION. VANDAL DOME INSTALLATION. INTERNAL DOME a) Remove the three tamper screws using the Hex key provided. a) Press down on the tab marked with an arrow to lift up the dome cover slightly b) Use included mounting template to mark and pre-drill the required holes. -
Page 7: Menu Tree Summary
CAMERA ADJUSTMENT CAMERA ADJUSTMENT Menu Setup LENS Using this function, you can control screen brightness. 1. Highlight 'LENS' in the main setup menu 2. Press the joystick to access the DC lens setup menu. 3. After completing setting update, highlight 'RETURN' to save setting and return to previous menu RCA Service Connector Use supplied RCA - BNC cable OSD function joystick. -
Page 8: Backlight (Blc)
CAMERA ADJUSTMENT CAMERA ADJUSTMENT SENSE-UP BACKLIGHT (BLC) The BLC menu is used to adjust backlight compensation function to sharpen subjects in backlight situations EXPOSURE SHUTTER 1/60 MIDDLE SENSE-UP AUTO EXPOSURE 1. Highlight 'BLC' in the exposure setup menu. D-WDR SHUTTER 1/60 2. - Page 9 CAMERA ADJUSTMENT CAMERA ADJUSTMENT Wide Dynamic Range (E-WDR) SETUP 1. LENS D-WDR : The D-WDR menu is used to adjust dynamic range of the camera electronically. 2. EXPOSURE This is especially useful in high contrast scenes in order to brighten up 3.
- Page 10 CAMERA ADJUSTMENT CAMERA ADJUSTMENT DAY/NIGHT Digital Noise Reduction (3D DNR) The DAY/NIGHT menu is used to configure the day and night related settings for the camera. This function reduces the background noise in a low luminance environment. 1.Highlight '3DNR' in the main setup menu. 1.
-
Page 11: Cam Title
CAMERA ADJUSTMENT CAMERA ADJUSTMENT SPECIAL. 1. Highlight 'SPECIAL' in the main setup menu. Notes • When the CAM TITLE is OFF no title will be displayed on the monitor even if you SETUP had previously setup a name. This is the master display setting. 1. - Page 12 CAMERA ADJUSTMENT CAMERA ADJUSTMENT D-EFFECT: Applies digital effects to camera image. MOTION: 1. Highlight 'D-EFFECT' in the SPECIAL setup menu. You can monitor activity more efficiently, because a signal is generated by the camera whenever motion is detected. Visual notification is also available. SPECIAL 1.
-
Page 13: Troubleshooting
CAMERA ADJUSTMENT TROUBLE SHOOTING PRIVACY: PRIVACY Refer to the following table if you are experiencing trouble with your camera. AREA SELECT AREA� Hide an area so that it is not displayed on the monitor. Contact an authorized technician if the table does not provide you with a AREA DISPLAY COLOR -------|- �...
