Digimerge DCV24DL Quick Start Manual

Camera Specifications
Specfications:
Image Sensor
1/3" Sony Super HAD™ II
Video Format / Pixels NTSC: 768 (H) x 494 (V)
Horizontal Resolution 600 TVL
Sync. & Scan. Systems
Internal; 2:1 Interlace
> 50dB (AGC off)
S/N Ratio
Iris & Shutter Speed AES; 1/60 ~ 1/100,000 sec.
0.3 LUX @ F2.0 (IR Off)
Minimum Illumination
0 LUX (IR LEDs ON)
IR Range
66ft (20m); 28 LED's
Video Output Comp. 1.0 Vpp @ 75ohm
2.8-12mm F1.4 / Varifocal
Lens Focal Length / Type
30 - 88 degrees
FOV (horizontal)
Termination Video: BNC Female
Power Requirement 12V DC / 24V AC ±10%
Power Consumption 12V 450mA
24V 320mA
-4°F ~ 122°F
Operating Temp.
Height: 102mm / 4.1"
Dimensions
Diameter: 120mm / 4.8"
0.7kg / 1.6lbs
Weight
Dimensions:
120mm / 4.8"
IT'S ALL ON THE WEB!
Product Information
User Manuals
Quick Start Guides
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2011 Digimerge Technologies Inc.
102mm/ 4.1"
As our products are subject to continuous improvement,
Digimerge reserves the right to modify product design,
specifications and prices, without notice and without
incurring any obligation. E&OE
Specificatio Sheets
Software Upgrades
Firmware Upgrades
Copyright

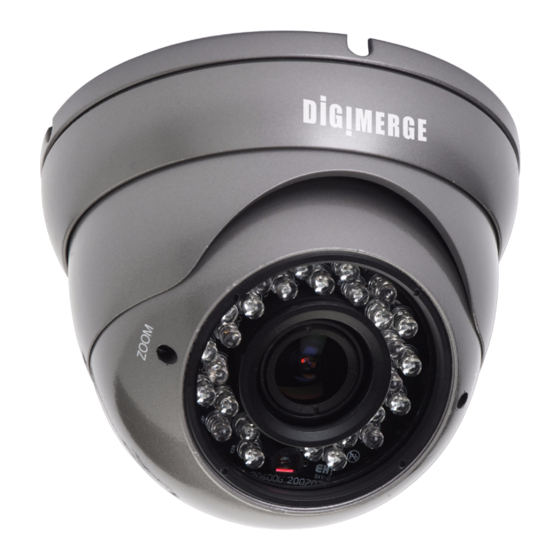

ULTRA RESOLUTION
VARIFOCAL IR
DOME CAMERA
MODEL: DCV24DL
QUICK START GUIDE
English Version 2.0
www.digimerge.com
©
2011 Digimerge Technology Inc.
