Digimerge DCV23DL Quick Start Manual

Camera Specifications
Specfications:
Image Sensor
1/3" Sony Super HAD™ II
Video Format / Pixels NTSC: 768 (H) x 494 (V)
Horizontal Resolution 600 TVL
Sync. & Scan. Systems
Internal; 2:1 Interlace
> 50dB (AGC off)
S/N Ratio
Iris & Shutter Speed AES; 1/60 ~ 1/100,000 sec.
0.2 LUX @ F2.0 (IR Off)
Minimum Illumination
0 LUX (IR LEDs ON)
IR Range
50ft (15m); 14 LED's
Video Output Comp. 1.0 Vpp @ 75ohm
3.6mm F2.0 / Fixed
Lens Focal Length / Type
74 degrees
FOV (Horizontal)
Termination Video: BNC Female
12V DC ±10%
Power Requirement
Power Consumption 250mA max
-4°F ~ 122°F
Operating Temp.
Height: 88mm / 3.5"
Dimensions
Diameter: 95mm / 3.8"
0.4kg / 0.8lbs
Weight
Dimensions:
95mm / 3.8"
IT'S ALL ON THE WEB!
Product Information
User Manuals
Quick Start Guides
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2011 Digimerge Technologies Inc.
88mm / 3.5"
As our products are subject to continuous improvement,
Digimerge reserves the right to modify product design,
specifications and prices, without notice and without
incurring any obligation. E&OE
Specificatio Sheets
Software Upgrades
Firmware Upgrades
Copyright

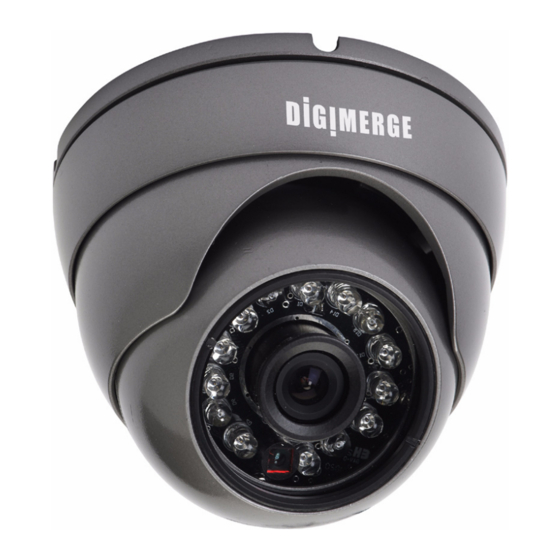

ULTRA RESOLUTION
IR DOME CAMERA
MODEL: DCV23DL
QUICK START GUIDE
English Version 1.0
