Digimerge DPV24D Instruction Manual

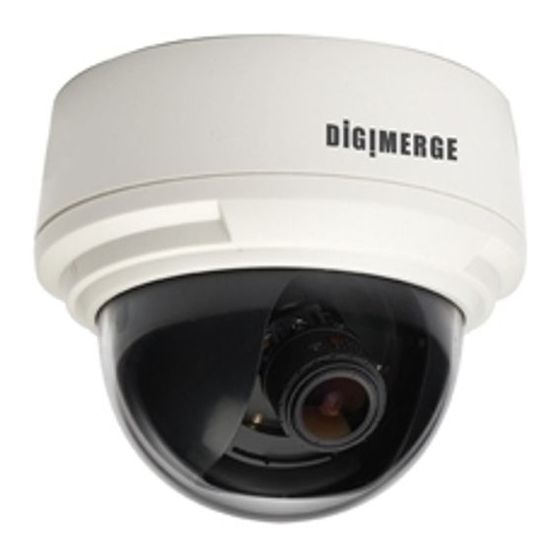

Ultra resolution day & night dome camera
Hide thumbs
Also See for DPV24D:
- Instruction manual (15 pages) ,
- Instruction manual (15 pages) ,
- Instruction manual (14 pages)
Related Manuals for Digimerge DPV24D
Summary of Contents for Digimerge DPV24D
- Page 1 INSTRUCTION MANUAL Ultra Resolution Day & Night Dome Camera Vandal Models: DPV24D / DPV24TLX Indoor Models: DPD23D / DPD24D Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 5: Specifications
INTRODUCTION Features All Models Feature: DPD24D • 1/3” Sony Super HAD™ II CCD • Indoor Dome Model • Excellent low light performance using • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris Polaris Vision 2 technology. • 0.15 Lux / F1.2 (Color) DPV24D 0.001 Lux w/Sense-Up at x256 • 600 TV lines(Color) of resolution • Vandal Resistant Dome Model • 3D Digital Noise Reduction (3D-DNR) • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris • OSD menu control • Privacy Masking / Motion Detection DPV24TLX • VIDEO OUT(BNC) • Operates in 12VDC or 24VAC • Vandal Resistant Dome Model • Test Monitor Output • 2.8-10.5mm Varifocal Day/Night Lens F1.4 DC Iris... - Page 6 MEASUREMENTS 97.0 mm 3.82 in 55.5 mm 2.19 in 3.4" 87 mm 112 mm 4.4 in Ø 0.1" 3.5 mm 3/4’’ -14 40 mm NPS thread 1.57 in 5.1" 3.9" 130 mm 100.0 mm Vandal Dome Dimensions Base hole positions 100°...
-
Page 7: Packing Contents
PACKING CONTENTS Indoor Dome package contains the following: Camera in housing ---------------------------------1 Camera Locking screws (PA3 Type) -----------2 Instruction guide (This Document) -------------1 Surface & Flush Mounting Templates----------2 Locking Conduit Allen Key Screw RCA - BNC test cable ------------------------------1 Junction Box Plate ----------------------------------1 Mounting screw pack ------------------------------1 Vandal Dome package contains the following: Camera in housing ---------------------------------1... -
Page 8: Junction Box Installation Types
JUNCTION BOX INSTALLATION TYPES 2S FITTING 2S Fitting requires only 2pcs of base attachment screws. Note: You have a reduced space in which Screws to hide cables using this type of installation. Recommended for indoor dome only. Cable Entry 4S FITTING 4S Fitting requires 2pcs of base attachment screws. - Page 9 VANDAL DOME FITTINGS Pendant Cap - model # MNTV2XPC Replaces the need for the camera base. Wall Mount - model # MNTV2XW Compatible with ceiling conduit installations Junction Box Accessory - model # MNTV2XJ Pole Mount - model # MNTV2XP Fits either wall mount and corner mount bracket.
-
Page 10: Installation. Vandal Dome
INSTALLATION. VANDAL DOME DPV24TLX ONLY When using DC power, note the correct polarity stated on the label attached to the power cord. 1) Remove the three tamper screws using the provided allen key. Size is standard T-15 Note: If you plan to use conduit fitting, remove conduit cap using the prodivded conduit key. - Page 11 INSTALLATION. VANDAL DOME ed on the 4) Remove camera cover by squeezing the back and front provided of the cover as indicated by the “PRESS” indicators at the same time and lifting it up and away from the lens. e conduit nd pre- screws 5) Insert the included video test cable into the RCA jack...
- Page 12 INSTALLATION. INDOOR DOME (Surface Fitting) 1a) Press down on the tab marked with an arrow to lift up the dome cover slightly 1b) While pressing on tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back clips. Lift off the cover.
- Page 13 INSTALLATION. INDOOR DOME (Semi-Flush Fitting) ow to lift 1a) Press down on the tab marked with an arrow to lift up the dome cover slightly 1b) While pressing on tab, twist the dome cover counter- ease clockwise to release dome cover 1c) Remove the camera base by unscrewing the base locking screws (indicated by a padlock markings) and turn camera module approx.
-
Page 14: Menu Setup
CAMERA ADJUSTMENT Menu Setup RCA Service Connector Use supplied RCA - BNC cable OSD function joystick. Pressing down If you require BNC output. on joystick acts as ENTER function. MENU TREE SUMMARY LENS • DC or MANUAL (Model DPD23D) EXPOSURE • SHUTTER • AGC • SENS-UP • BLC • D-WDR • RETURN WHITE BAL • AWB • ATW • AWC SET • OUTDOOR • INDOOR • MANUAL DAY / NIGHT • AUTO • COLOR • B/W 3DNR • OFF • ON SPECIAL • CAM TITLE • D-EFFECT • MOTION • PRIVACY... - Page 15 CAMERA ADJUSTMENT LENS Using this function, you can control screen brightness. 1. Highlight 'LENS' in the main setup menu 2. Press the joystick to access the DC lens setup menu. 3. After completing setting update, highlight 'RETURN' to save setting and return to previous menu essing down SETUP function.
- Page 16 CAMERA ADJUSTMENT SENSE-UP EXPOSURE SHUTTER 1/60 MIDDLE SENSE-UP AUTO 1. H D-WDR 2. P RETURN Select digital slow shutter speed setting in order to allow extra light into the camera thereby providing higher sensitivity in low light conditions. NOTE only adjustable if SHUTTER setting is set to 'AUTO' or '1/60' - OFF : Deactivates the SENS-UP function.
-
Page 17: Backlight (Blc)
CAMERA ADJUSTMENT BACKLIGHT (BLC) The BLC menu is used to adjust backlight compensation function to sharpen subjects in backlight situations EXPOSURE 1. Highlight 'BLC' in the exposure setup menu. SHUTTER 1/60 2. Press the joystick to access the BLC setup MIDDLE menu. -
Page 18: White Balance (White Bal.)
CAMERA ADJUSTMENT Wide Dynamic Range (E-WDR) D-WDR : The D-WDR menu is used to adjust dynamic range of the camera electronically. This is especially useful in high contrast scenes in order to brighten up darker parts of the scene. EXPOSURE SHUTTER 1/60 1. - Page 19 CAMERA ADJUSTMENT SETUP 1. LENS ronically. 2. EXPOSURE 3. WHITE BAL 4. DAY NIGHT AUTO AWB(Automatic White Balance) : This mode automatically adjusts white balance AWC-SET : To obtain the optimum state under the current luminance levels, direct the camera to point toward a sheet of white paper and press the SET button.
- Page 20 CAMERA ADJUSTMENT DAY/NIGHT The DAY/NIGHT menu is used to configure the day and night related settings for the camera. 1. Highlight 'DAY&NIGHT' in the main setup menu 2. Move the the joystick left/right to change setting to AUTO/COLOR/ B/W 3. Press the joystick to access the submenu's for AUTO and B/W settings SETUP 1.
- Page 21 CAMERA ADJUSTMENT Digital Noise Reduction (3D DNR) he camera. This function reduces the background noise in a low luminance environment. 1.Highlight '3DNR' in the main setup menu. SETUP 1. LENS 2. EXPOSURE 3. WHITE BAL MANUAL AUTO 4. DAY NIGHT 5.
- Page 22 CAMERA ADJUSTMENT SPECIAL. 1. Highlight 'SPECIAL' in the main setup menu. • SETUP 1. LENS • 2. EXPOSURE • 3. WHITE BAL 4. DAY NIGHT AUTO 5. 3DNR 6. SPECIAL 7. ADJUST 8. RESET 9. EXIT 2. Press the joystick to access the submenu for SPECIAL settings. SPECIAL 1.
-
Page 23: Cam Title
CAMERA ADJUSTMENT Notes • When the CAM TITLE is OFF no title will be displayed on the monitor even if you had previously setup a name. This is the master display setting. • Only English is available in this mode for camera title. •... - Page 24 CAMERA ADJUSTMENT D-EFFECT: Applies digital effects to camera image. 1. Highlight 'D-EFFECT' in the SPECIAL setup menu. SPECIAL 1. CAM TITLE 2. D-EFFECT 3. MOTION 4. PRIVACY 6. SYNC 7. LANGUAGE ENGLISH 2. Press the joystick to access the submenu. 8.
-
Page 25: Area Display
CAMERA ADJUSTMENT MOTION: You can monitor activity more efficiently, because a signal is generated by the camera whenever motion is detected. Visual notification is also available. 1. Highlight 'MOTION' in the SPECIAL setup menu SPECIAL 1. CAM TITLE 2. D-EFFECT 4. - Page 26 CAMERA ADJUSTMENT PRIVACY: PRIVACY Hide an area so that it is not displayed on the monitor. AREA SELECT AREA� AREA DISPLAY COLOR -------|- � RETURN 1. Highlight 'PRIVACY' in the SPECIAL setup menu. 2. Move the the joystick left/right to change setting to OFF/ON 3.
-
Page 27: Troubleshooting
TROUBLE SHOOTING Refer to the following table if you are experiencing trouble with your camera. REA� Contact an authorized technician if the table does not provide you with a -|- � solution to the trouble. Nothing appears on the screen. Check that the power cord and line connection between the camera and monitor are connected properly. - Page 28 Ultra Resolution Day & Night Dome Camera P/N 01.BSM.11.0070201C V3.01...
