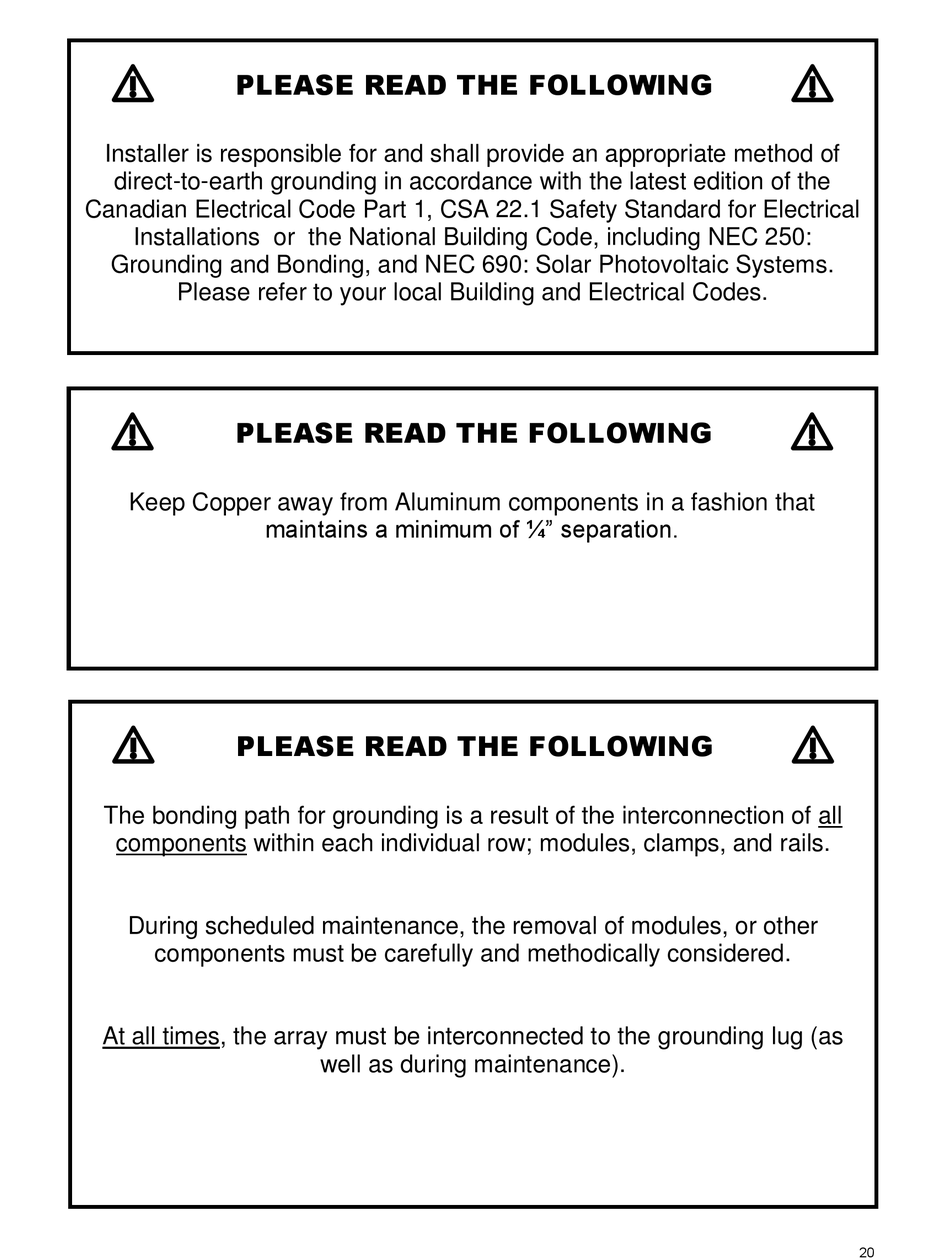

PLEASE READ THE FOLLOWING
Installer is responsible for and shall provide an appropriate method of
direct-to-earth grounding in accordance with the latest edition of the
Canadian Electrical Code Part 1, CSA 22.1 Safety Standard for Electrical
Installations or the National Building Code, including NEC 250:
Grounding and Bonding, and NEC 690: Solar Photovoltaic Systems.
Please refer to your local Building and Electrical Codes.
⚠
PLEASE READ THE FOLLOWING
Keep Copper away from Aluminum components in a fashion that
⚠
PLEASE READ THE FOLLOWING
The bonding path for grounding is a result of the interconnection of all
components within each individual row; modules, clamps, and rails.
During scheduled maintenance, the removal of modules, or other
components must be carefully and methodically considered.
At all times, the array must be interconnected to the grounding lug (as
maintains a minimum of ¼" separation.
well as during maintenance).
⚠
⚠
⚠
20
