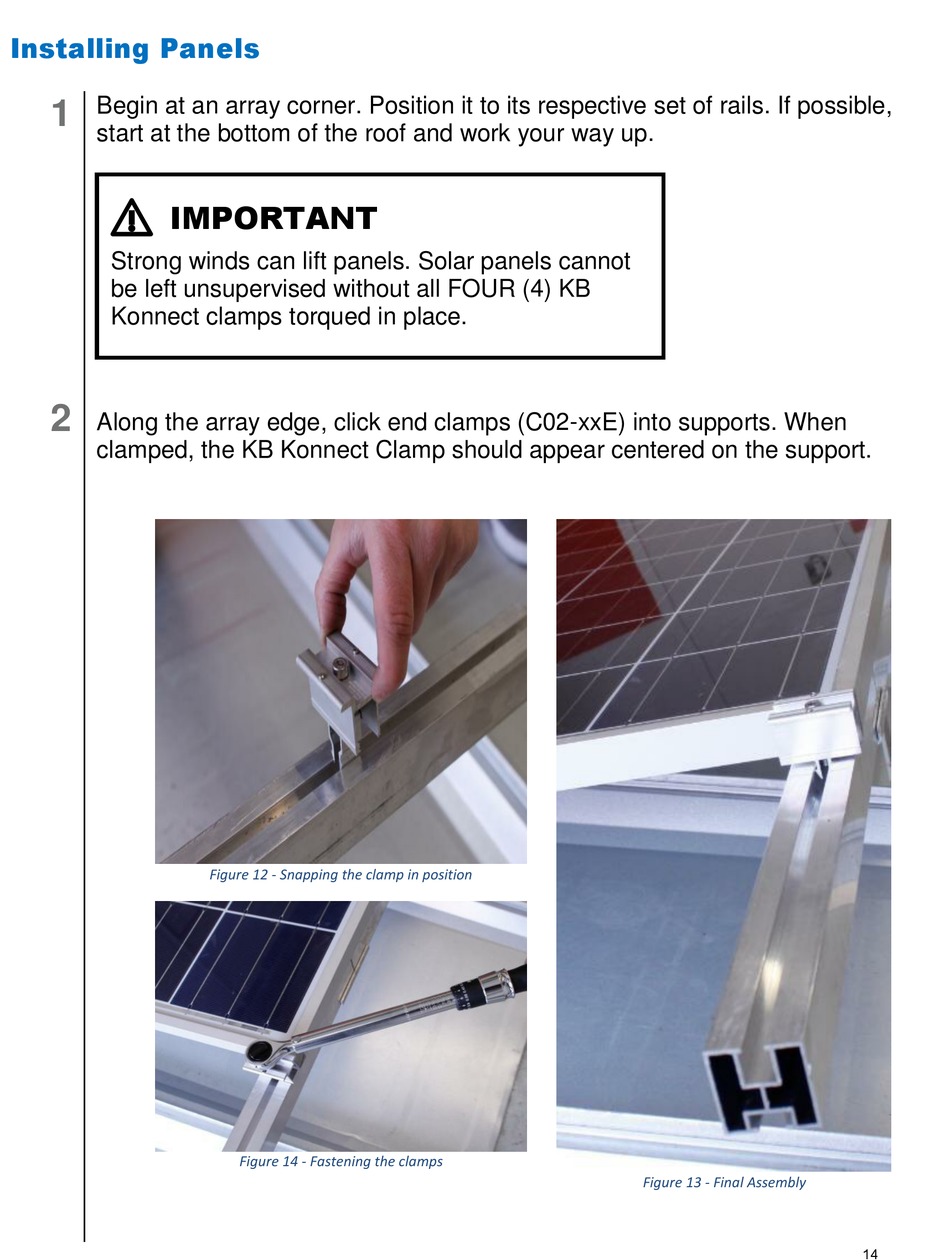

Installing Panels
Begin at an array corner. Position it to its respective set of rails. If possible,
1
start at the bottom of the roof and work your way up.
⚠
IMPORTANT
Strong winds can lift panels. Solar panels cannot
be left unsupervised without all FOUR (4) KB
Konnect clamps torqued in place.
2
Along the array edge, click end clamps (C02-xxE) into supports. When
clamped, the KB Konnect Clamp should appear centered on the support.
Figure 12 - Snapping the clamp in position
Figure 14 - Fastening the clamps
Figure 13 - Final Assembly
14
