Installing ETL Certified Grounding Lugs

Tyco Grounding Lug

1
Screw threaded post of grounding lugs (not provided) into the frame of the
rails of Each Row. Tighten the hex washer nut.
Torque to: 2.82Nm (2.1ft-lb).
2
Insert #6 AWG – RW75 uninsulated copped ground wire into wire slot.
Tighten hex nut. Torque to: 5.08Nm (3.75ft-lb).
IMPORTANT
For the purpose of electrical bonding, one
grounding lug is required per row. DO NOT
exceed 20 panels in the E/W directions (per row),
respectively. Panels may be installed in
landscape or portrait orientation.
Maximum Series Fuse Rating: 30 Amps

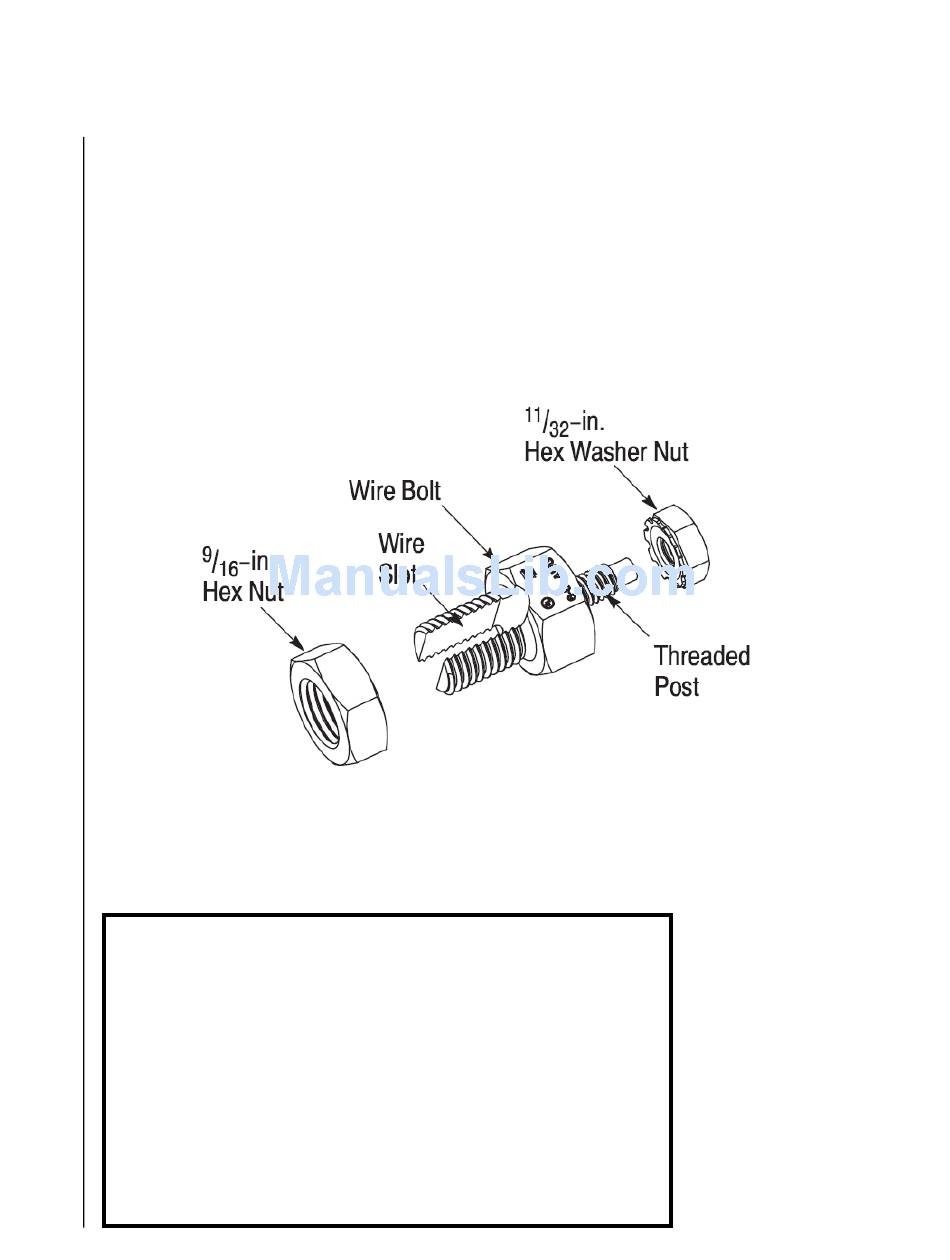

Fig. 15 - Grounding Lug Schematic (Tyco model, 2058729-1, shown as an example)
