For end clamps only, insert the end clamp blocks (C01-xxE) to balance clamp
3
in place, (see example, Figure 5).
IMPORTANT
End clamp blocks provided by KB Racking
designed to match your solar module thickness.
This ensures the clamp sits flat. If end clamps do
not sit flat, you have the incorrect block.
Notify your builder immediately.
4
Place the next solar panel in the row. Click middle clamps (C02-xxE) into
mounting slots on the supports, (see example, Figure 6).
IMPORTANT
Each solar panel requires FOUR (4) clamps.
5
Secure the first panel in the row. Tighten the end clamps and middle clamps
with a standard drill or torque wrench.
Torque to 8.3Nm (6.1ft-lb).

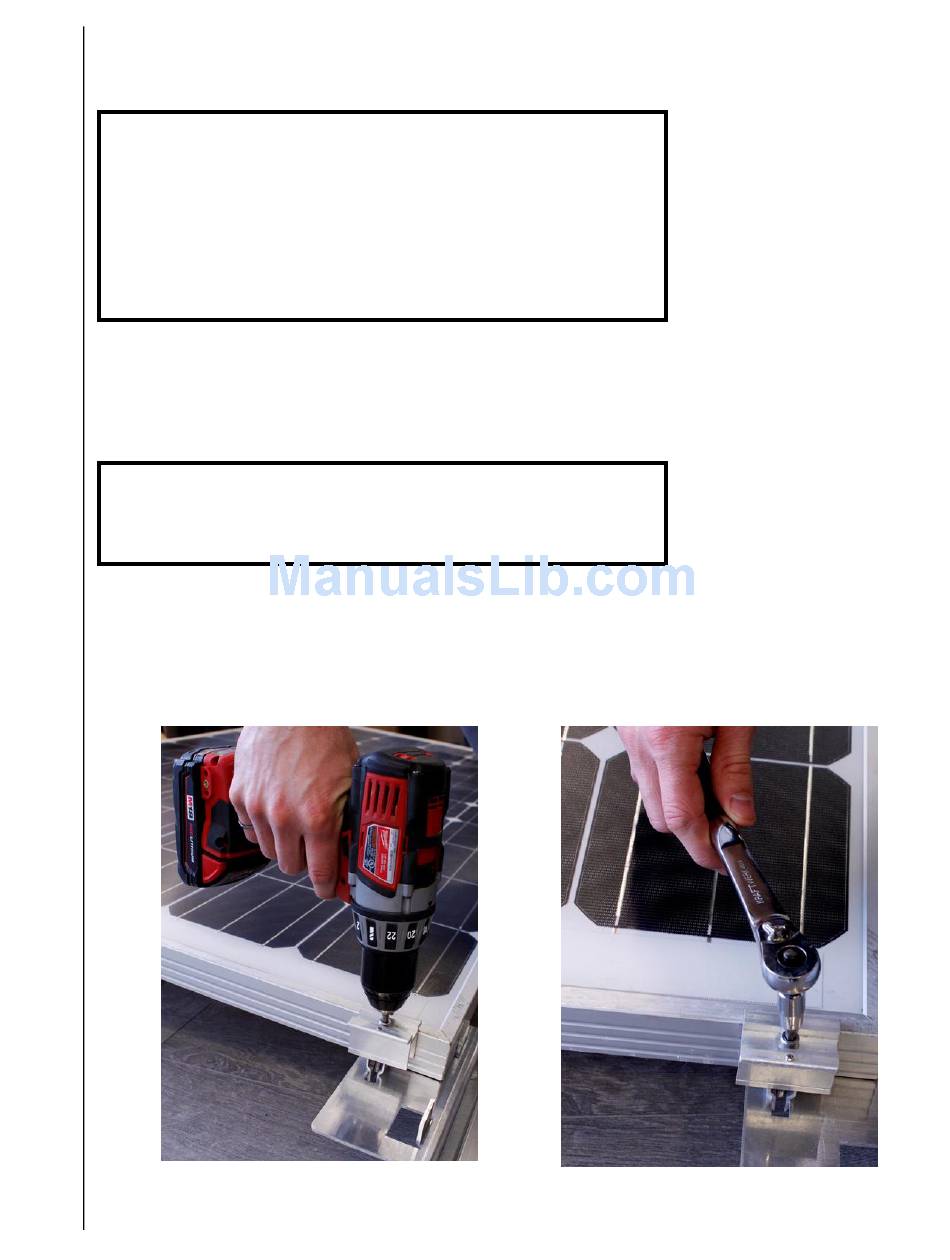

Figure 15 - Use Standard Drill
(Image for reference only – EkonoRack model shown)
®
are
Figure 16 - Use Torque Wrench
(Image for reference only – EkonoRack model shown)
15
