Installing Rails
The T-Bolts provided are used to connect the rails to the hook profiles.
1
2
Feed the T-Bolt through the hook profiles' allotted slot as shown in Figure 8
below. Then position the rail above it and feed the head of the bolt through the
rail slot.
3
When the M8 serrated nuts are fastened to the T-Bolts, as shown in Figure 9
above, the bolt head provides a locking mechanism on the inside of the rails
allowing the nut to be fastened effectively.
IMPORTANT
Due to the spacing of the ribs, the hook profiles
and therefore the rail position may vary slightly
from the engineering drawings provided. It is
important to keep in mind that each pair of rails
running up the column/row of modules should be
spaced exactly as the indicated spacing on the
engineering drawing and not further apart.

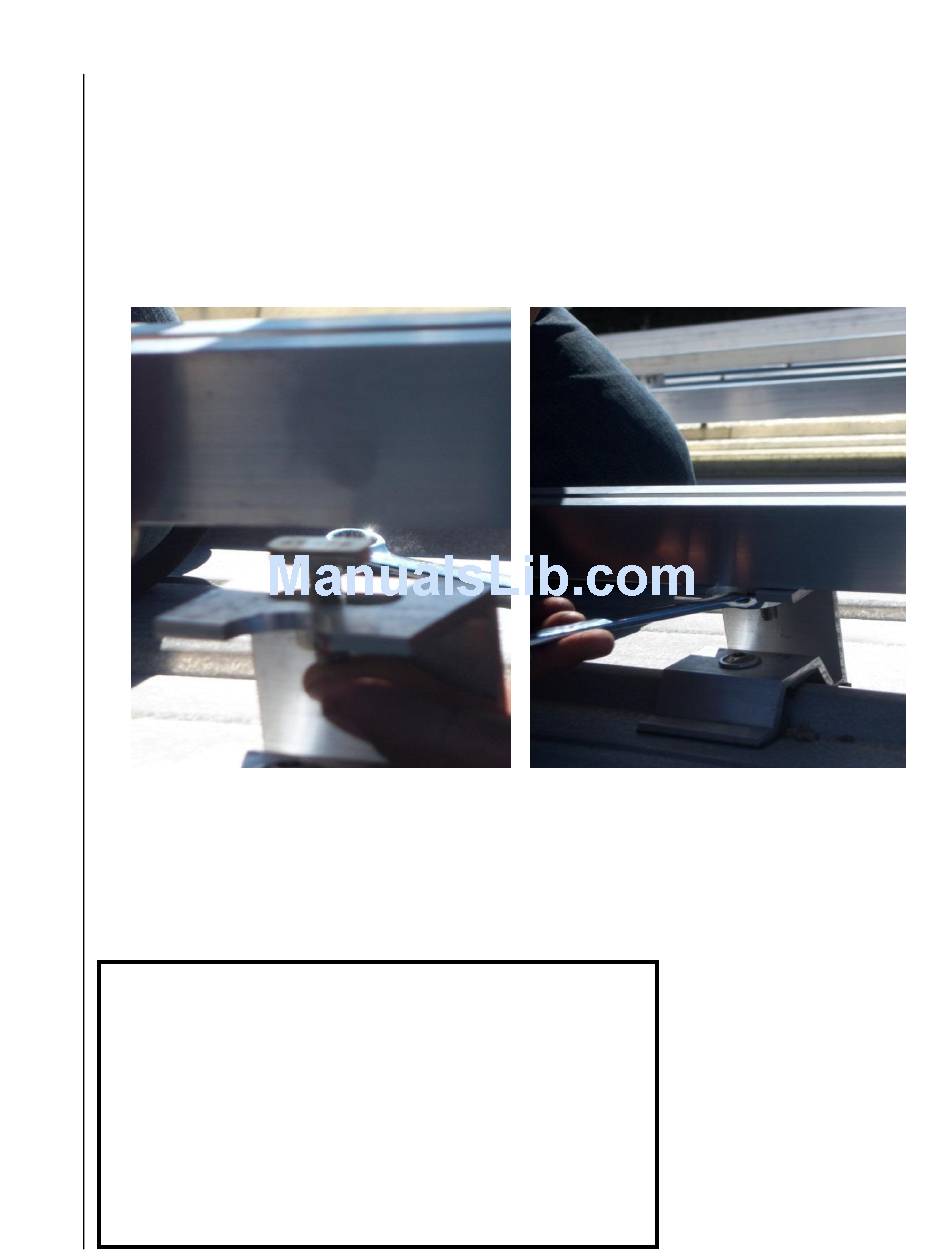

Figure 9- Fastening the Rails
Figure 10 - Fit T-Bolt to Rail
12
