Ilsco Grounding Lug
1
Fasten grounding lugs (not provided) onto the frame of the rails of Each
Row. Tighten the bolt.
Torque to: 5Nm (3.69ft-lb).
2
Insert #6 AWG – RW75 uninsulated copped ground wire into wire slot.
Tighten the bolt. Torque to: 5.08Nm (3.75ft-lb).
IMPORTANT
For the purpose of electrical bonding, one
grounding lug is required per row. DO NOT
exceed 20 panels in the E/W directions (per row),
respectively. Panels may be installed in
landscape or portrait orientation.
Maximum Series Fuse Rating: 30 Amps

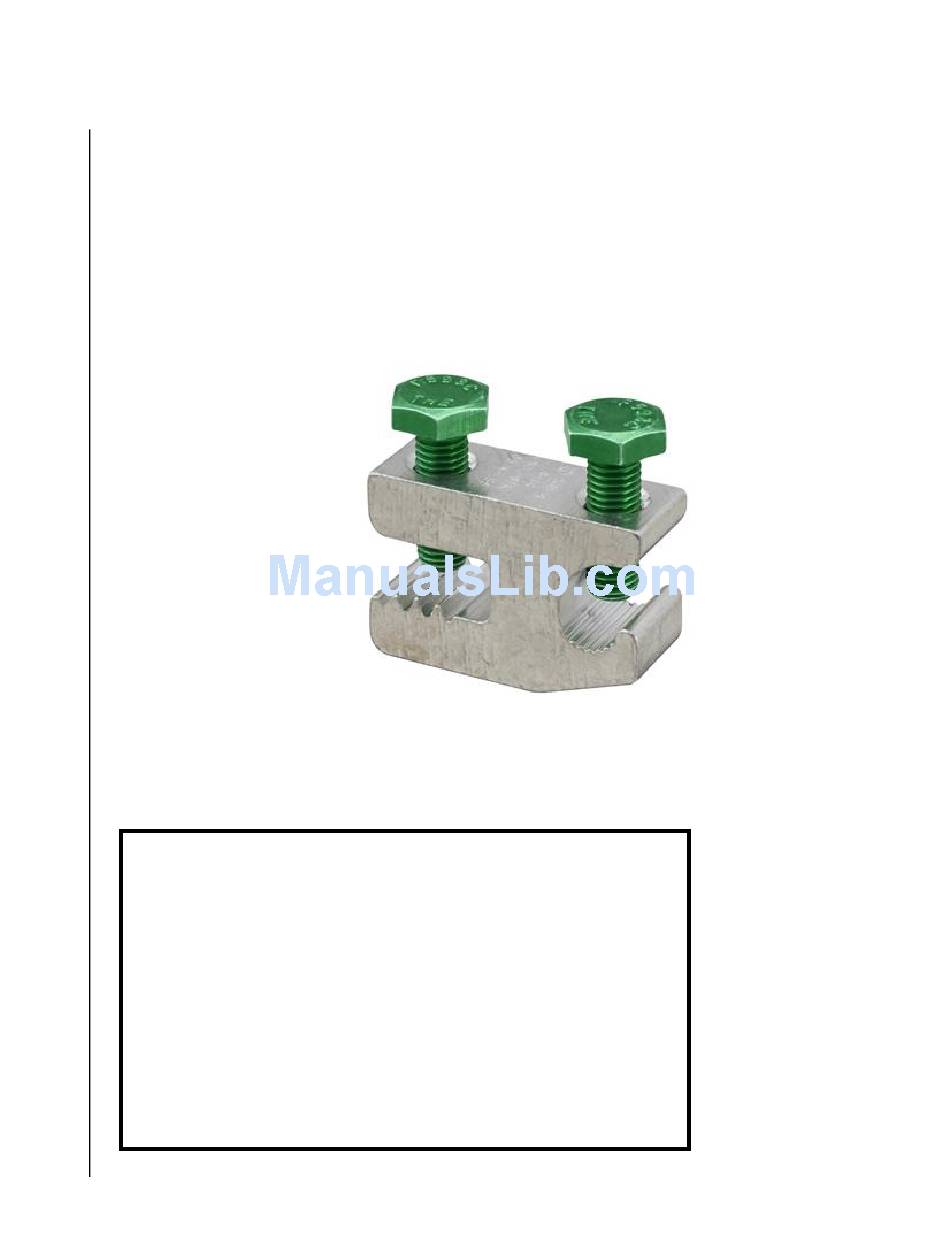

Grounding Lug Schematic (Ilsco model,
shown as an example)
SGB-4,
19
